Square Drop In Burner Pan Kit - 24V

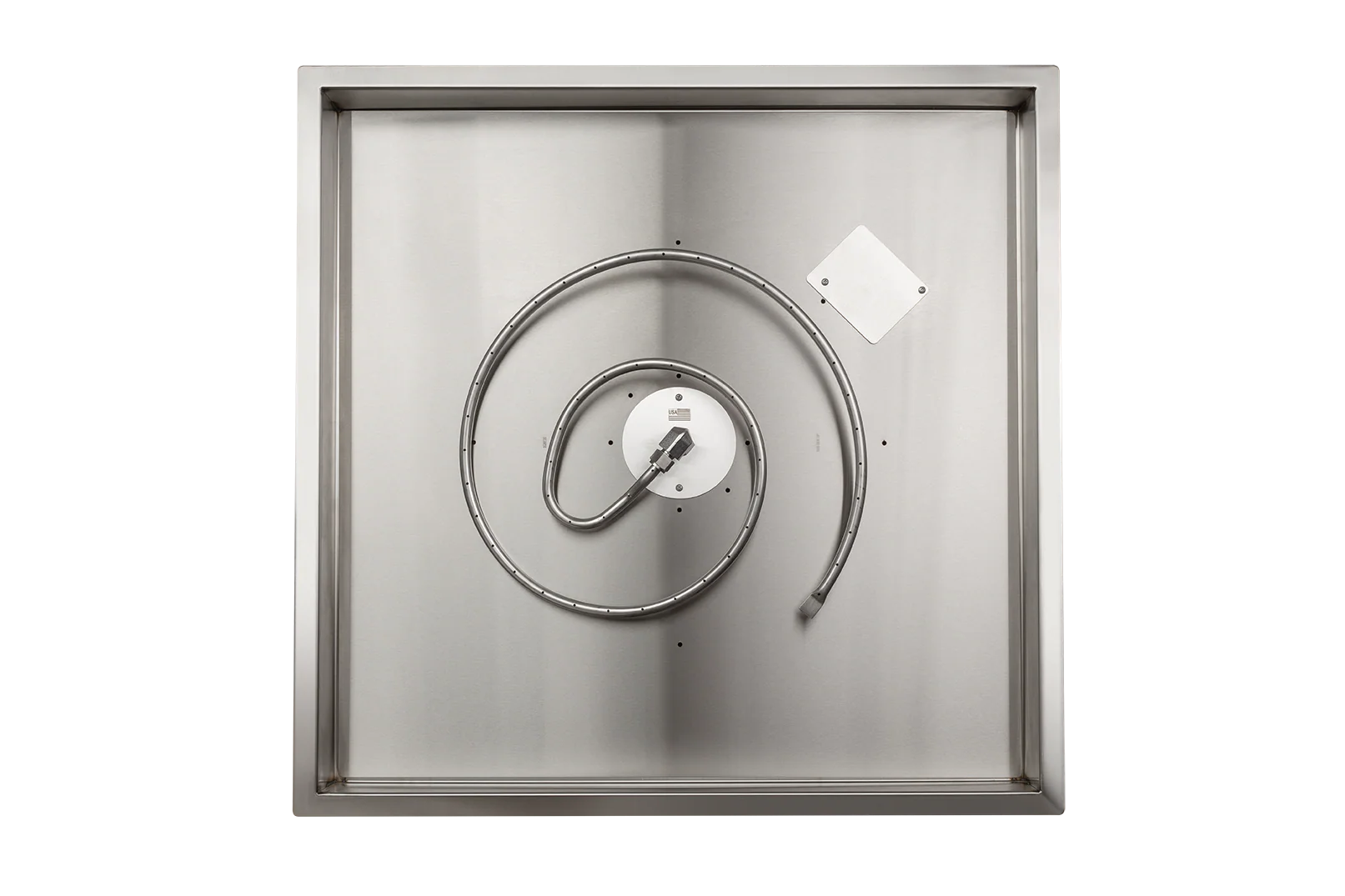

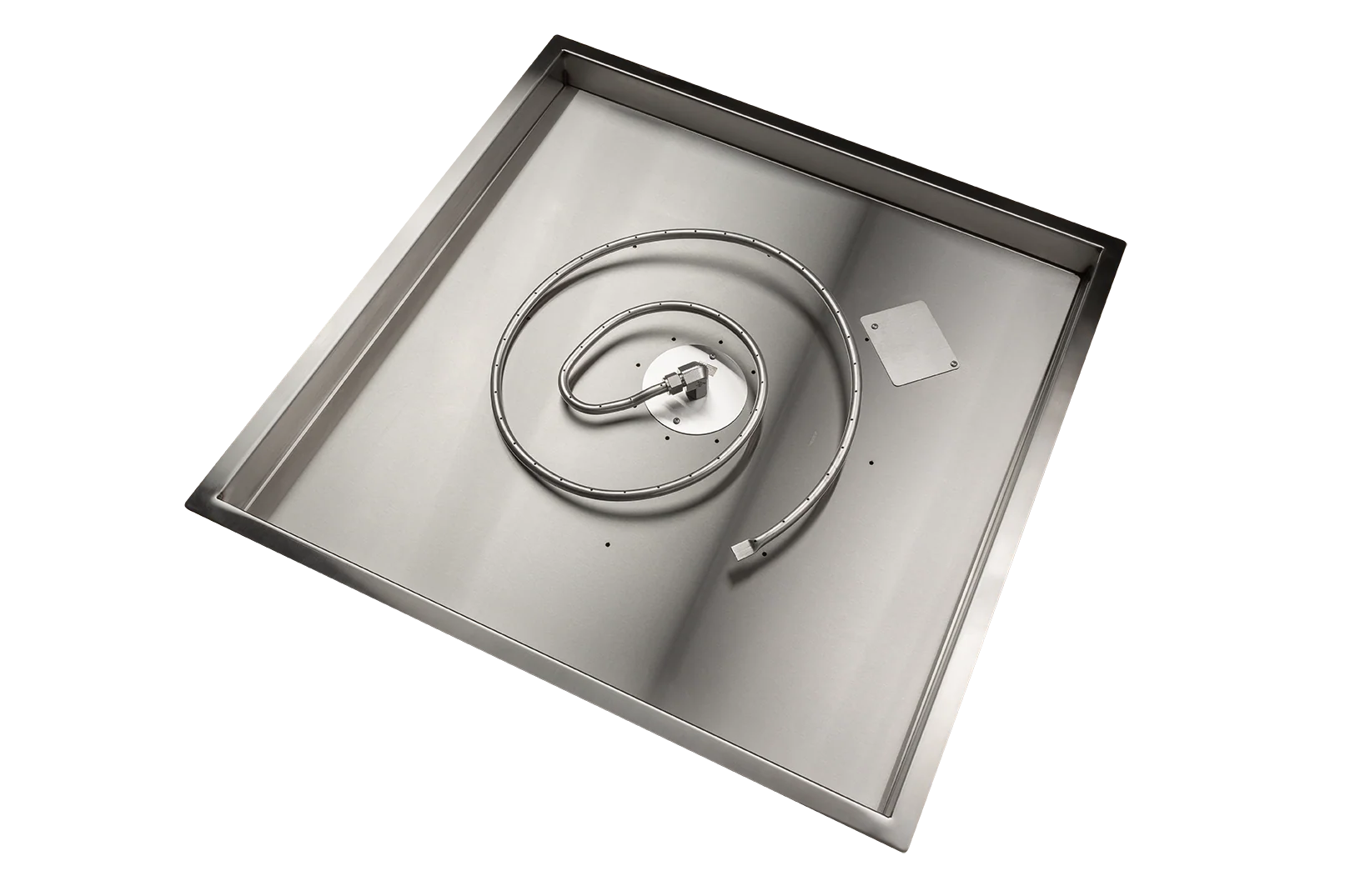

 18" Square Drop In Burner Pan with Opening for Pilot Burner (20" OD)

• 6" Diameter Spiral Burner - 43K BTU's (304 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane Includes 24V Safety Backup Valve
• Includes 24V Transformer
• (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 29lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

24" Square Drop In Burner Pan with Opening for Pilot Burner (26" OD)

• 12" Diameter Spiral Burner - 85K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane Includes 24V Safety Backup Valve
• Includes 24V Transformer
• (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 52lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

30" Square Drop In Burner Pan with Opening for Pilot Burner (32" OD)

• 18" Diameter Spiral Burner - 162K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane Includes 24V Safety Backup Valve
• Includes 24V Transformer
• (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 81lbs of Fire Glass / 5 Bags of Lava Rock / 2 Bag of Rolled Lava Stone

36" Square  Drop In Burner Pan with Opening for Pilot Burner (38" OD)

• 24" Diameter Spiral Burner - 170K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane Includes 24V Safety Backup Valve
• Includes 24V Transformer
• (1) 24" Flex Line 3/4" with 1/2" x 3/4" Reducer
• Note: Holds 117lbs of Fire Glass / 6 Bags of Lava Rock / 2 Bags of Rolled Lava Stone

48" Square Drop In Burner Pan with Opening for Pilot Burner (50" OD)

• 36" Diameter Spiral Burner - 238K BTU's (316 Stainless Steel)
• 3/4 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS High Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane Includes 24V Safety Backup Valve
• Includes 24V Transformer; (1) 36" Flex Line 3/4"
• Note: Holds 208lbs of Fire Glass / 11 Bags of Lava Rock / 4 Bags of Rolled Lava Stone

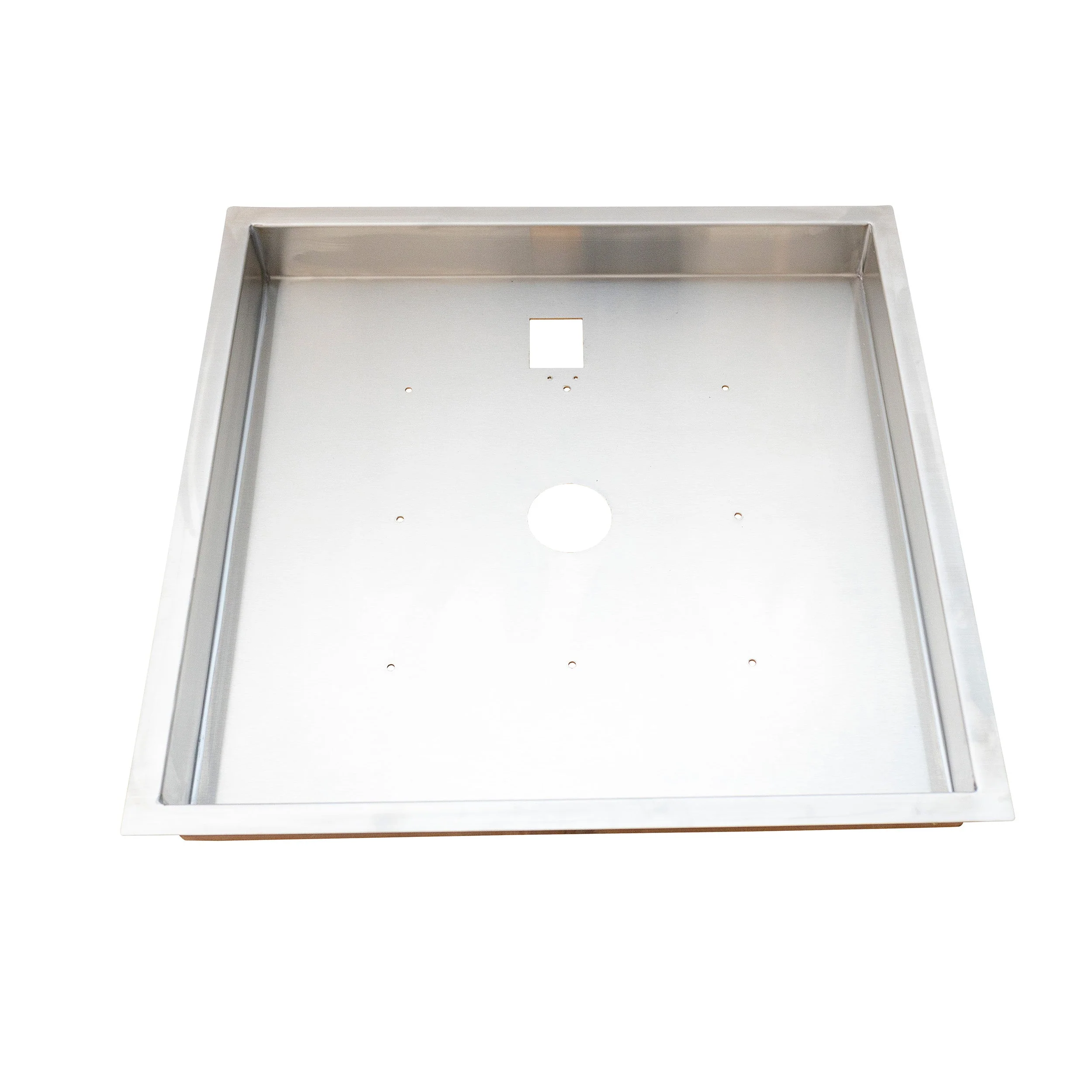

*** Burner Pan Note: Drop In Burner Pans have a depth of 2.5" and have a 1" Flange all the way around (unless specified as a different size by customer) to support itself inside the opening it is installed in. Opening Size should be no more than 1" larger than Pan Dimensions ***
