Rectangle Flat Burner Pan Kit - T Burner - 30VDC

24" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 12" Single Linear Burner - 17K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer

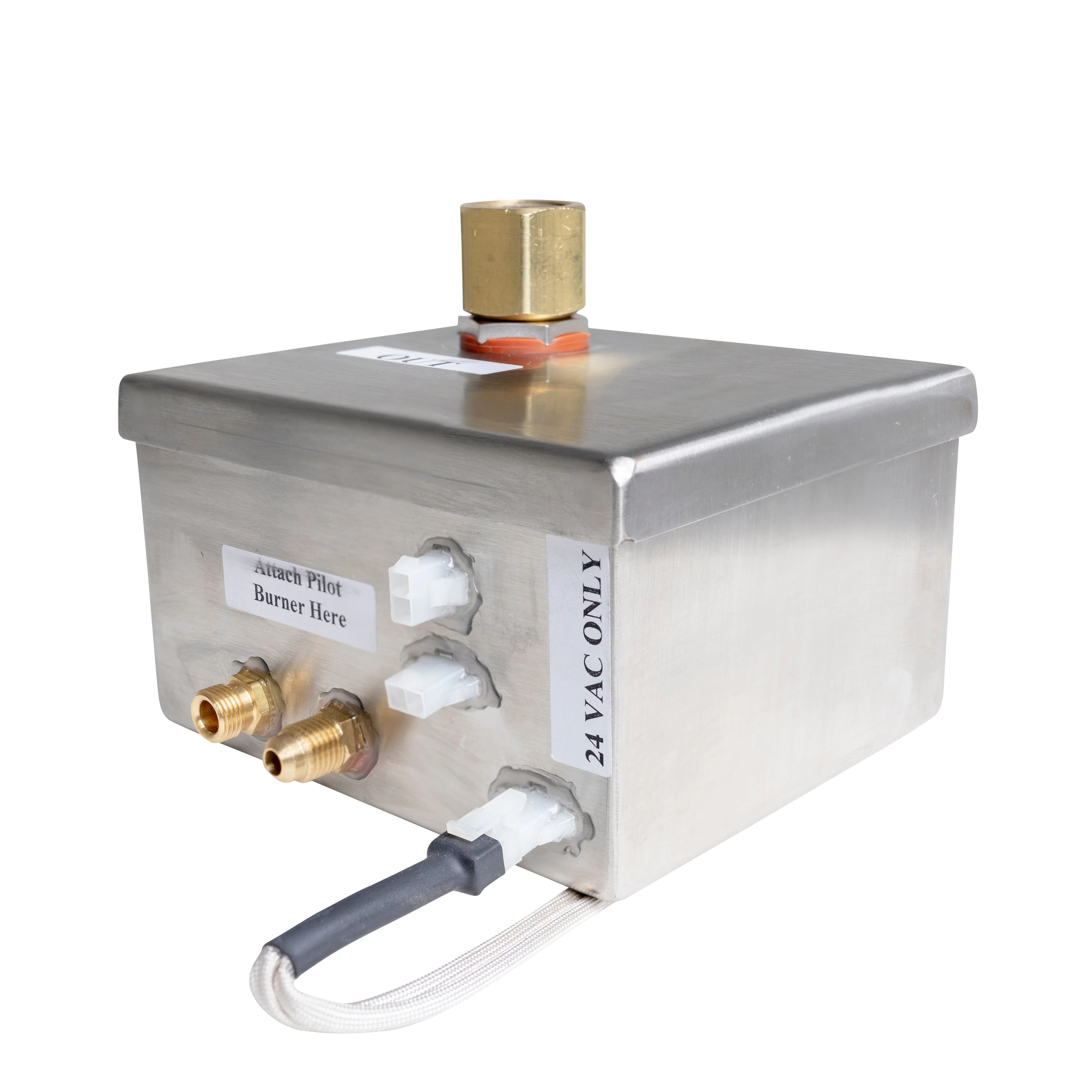

• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane; Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply; (1) 18" Whisper Free Flex Gas Line 1/2".
• Note: Holds 12lbs of Fire Glass / 1 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

36" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 24" Single Linear Burner - 34K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane; Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply; (1) 18" Whisper Free Flex Gas Line 1/2".

• Note: Holds 19lbs of Fire Glass / 1 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

48" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 36" Single Linear Burner - 51K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane; Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply; (1) 18" Whisper Free Flex Gas Line 1/2".

• Note: Holds 25lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

60" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 48" Single Linear Burner - 68K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane; Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply; (1) 18" Whisper Free Flex Gas Line 1/2".

• Note: Holds 31lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

72" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 60" Single Linear Burner - 85K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane; Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply; (1) 18" Whisper Free Flex Gas Line 1/2".

• Note: Holds 37lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

84" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 72" Single Linear Burner - 102K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane; Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply; (1) 18" Whisper Free Flex Gas Line 1/2".

• Note: Holds 43lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

96" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 84" Single Linear Burner - 119K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane; Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply; (1) 18" Whisper Free Flex Gas Line 1/2".

• Note: Holds 50lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

Documents

Preinstallation Checklist

Spec Sheet for Low Profile Standard Capacity

Spec Sheet for High Profile Standard Capacity

Spec Sheet for Low Profile High Capacity

Spec Sheet for High Profile High Capacity

Pilot Burner Assembly Differences

AWEIS Troubleshooting Guide

AWEIS Installation Instructions

Automated Fire 101

Flat Pan And Burner Instructions

Drop In Pan And Burner Instructions

Flat Burner Pan Support Structure

Burner Pan Joiner Plate Instructions
