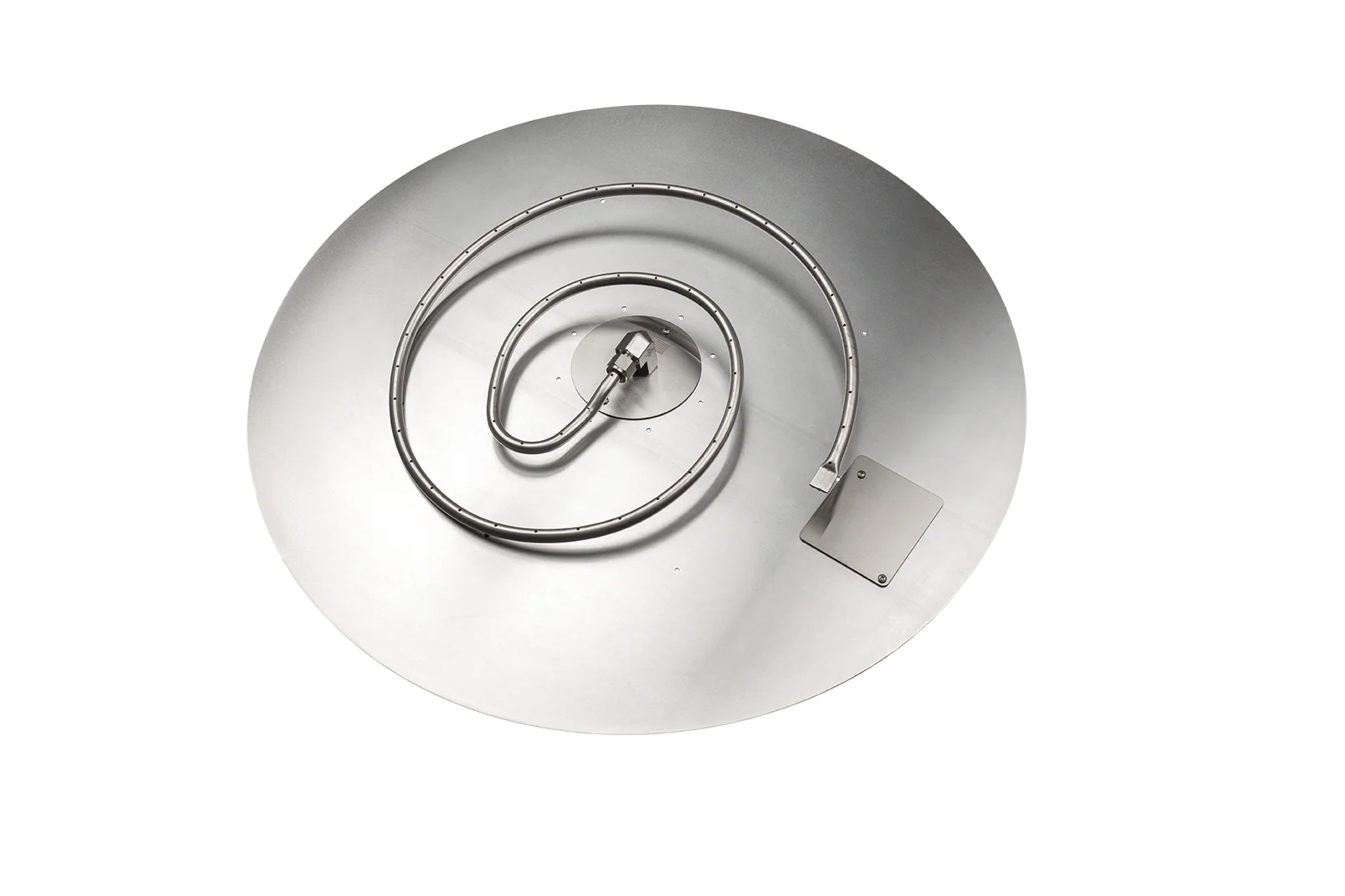

Round Flat Burner Pan Kit - 24V

18" Round Flat Burner Pan with Opening for Pilot Burner

• 6" Diameter Spiral Burner - 43K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane Includes 24V Safety Backup Valve
• Includes 24V Transformer
• (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 29lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

24" Round Flat Burner Pan with Opening for Pilot Burner

• 12" Diameter Spiral Burner - 85K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane Includes 24V Safety Backup Valve
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 52lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

30" Round Flat Burner Pan with Opening for Pilot Burner

• 18" Diameter Spiral Burner - 162K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner / Natural Gas or Liquid Propane
• Liquid Propane Includes 24V Safety Backup Valve
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 81lbs of Fire Glass / 5 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

36" Round  Flat Burner Pan with Opening for Pilot Burner

• 24" Diameter Spiral Burner - 170K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane Includes 24V Safety Backup Valve
• Includes 24V Transformer; (1) 24" Flex Line 3/4" with 1/2" x 3/4" Reducer
• Note: Holds 117lbs of Fire Glass / 5 Bags of Lava Rock / 2 Bags of Rolled Lava Stone

48" Round Flat Burner Pan with Opening for Pilot Burner

• 36" Diameter Spiral Burner - 238K BTU's (316 Stainless Steel)
• 3/4 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS High Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• Liquid Propane Includes 24V Safety Backup Valve
• Includes 24V Transformer; (1) 36" Flex Line 3/4"
• Note: Holds 208lbs of Fire Glass / 11 Bags of Lava Rock / 4 Bags of Rolled Lava Stone
