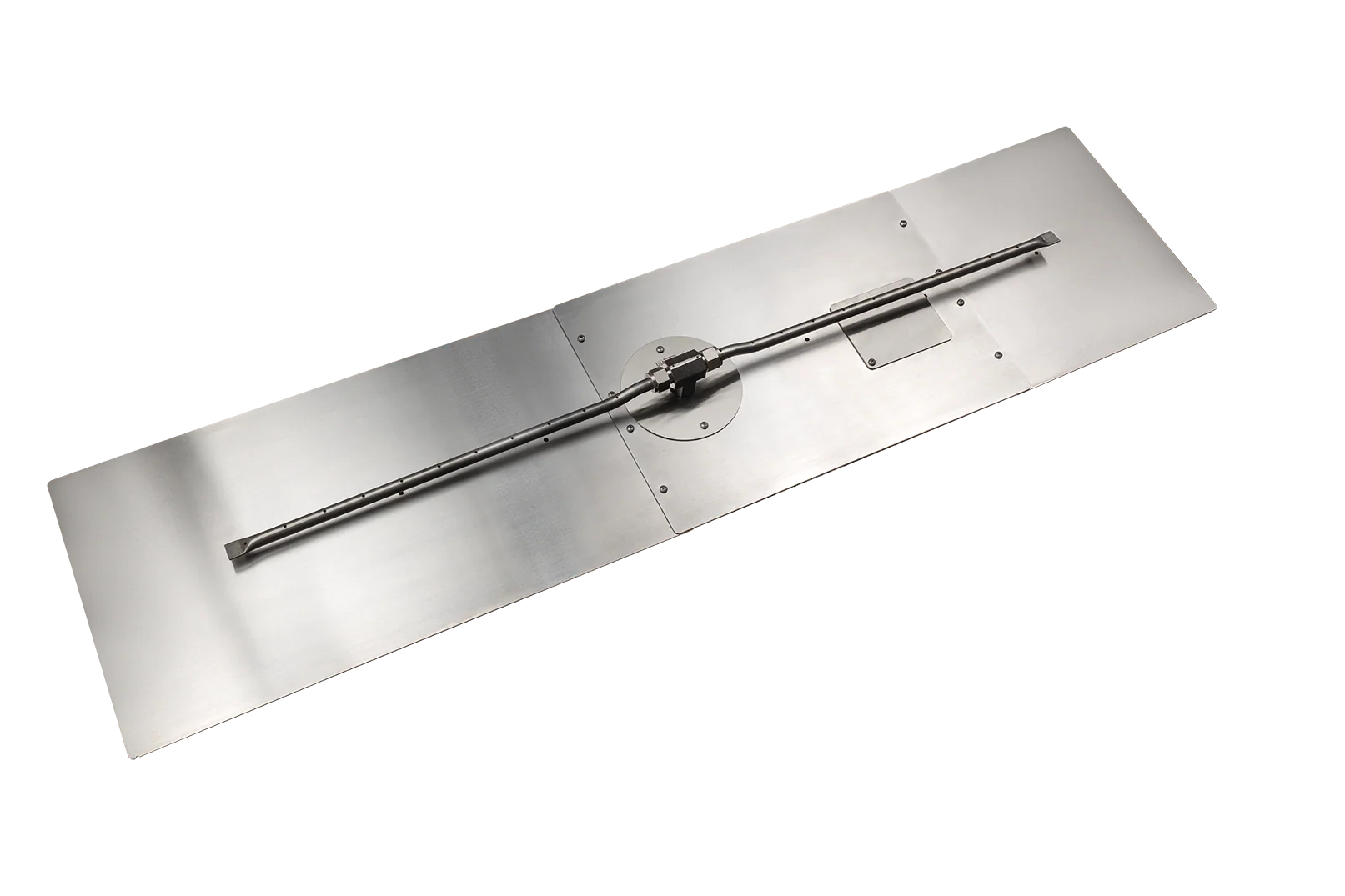

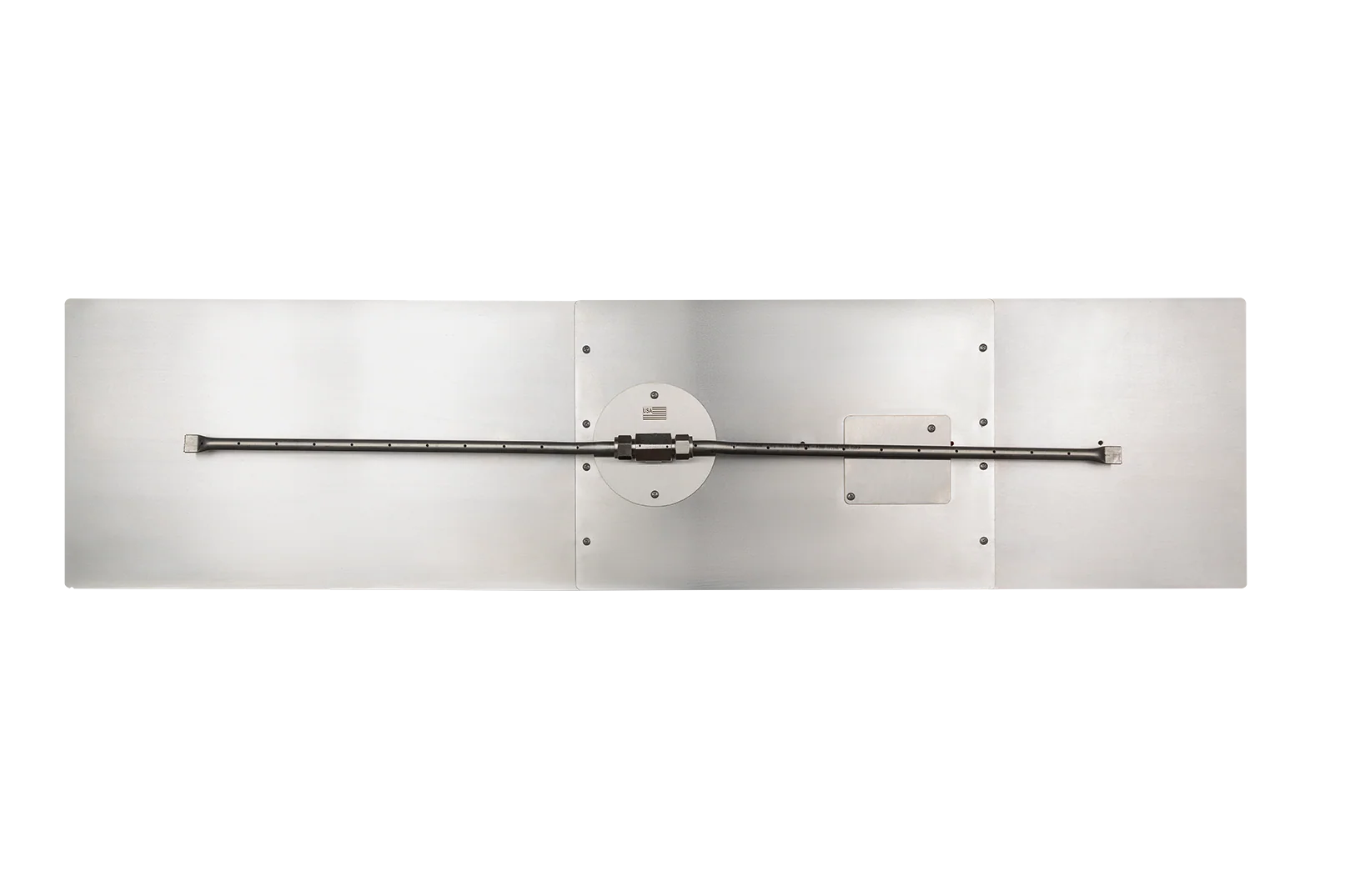

Rectangle Flat Burner Pan Kit - T Burner - 24V

24" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 12" Single Linear Burner - 17K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• 24V Safety Backup Valve for Propane
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 12lbs of Fire Glass / 1 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

36" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 24" Single Linear Burner - 34K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• 24V Safety Backup Valve for Propane
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 19lbs of Fire Glass / 1 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

48" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 36" Single Linear Burner - 51K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• 24V Safety Backup Valve for Propane
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 25lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

60" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 48" Single Linear Burner - 68K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• 24V Safety Backup Valve for Propane
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 31lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

72" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 60" Single Linear Burner - 85K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• 24V Safety Backup Valve for Propane
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 37lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

84" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 72" Single Linear Burner - 102K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• 24V Safety Backup Valve for Propane
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 43lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bag of Rolled Lava Stone

96" x 6" Rectangle Flat Burner Pan with Opening for Pilot Burner

• 84" Single Linear Burner - 119K BTU's (316 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• AWEIS Standard Capacity with a Field Serviceable Pilot Burner
• Natural Gas or Liquid Propane
• 24V Safety Backup Valve for Propane
• Includes 24V Transformer; (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 50lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bag of Rolled Lava Stone
