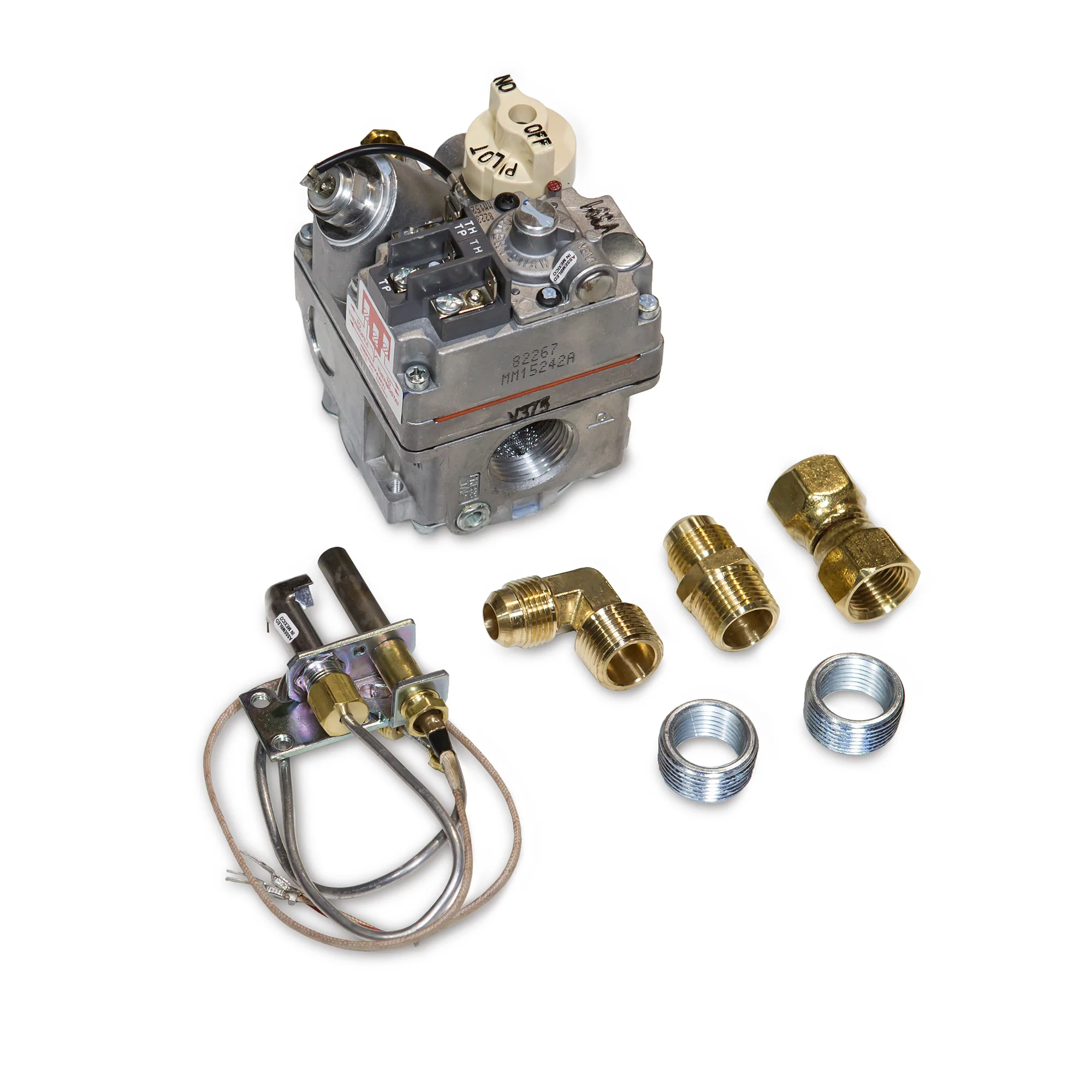

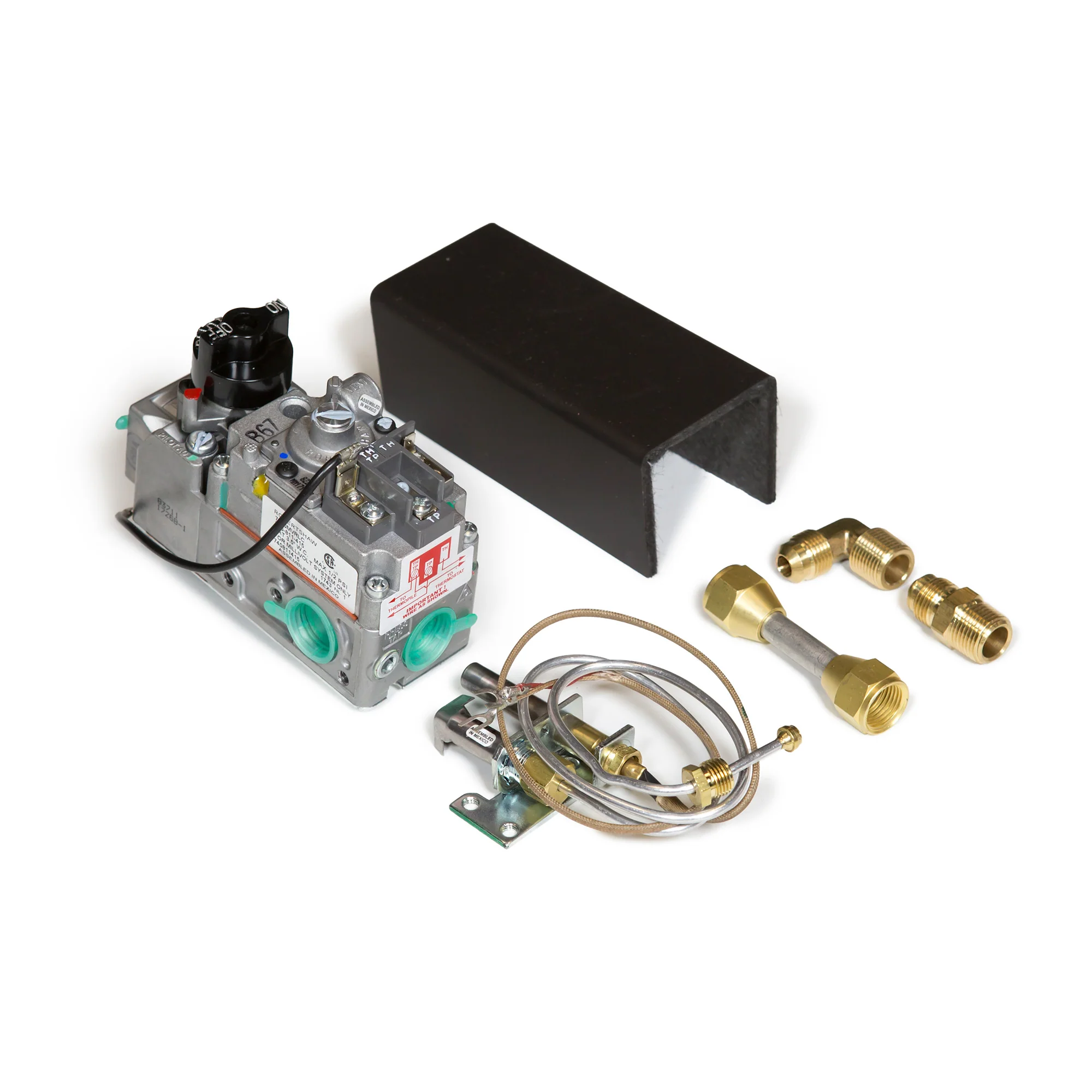

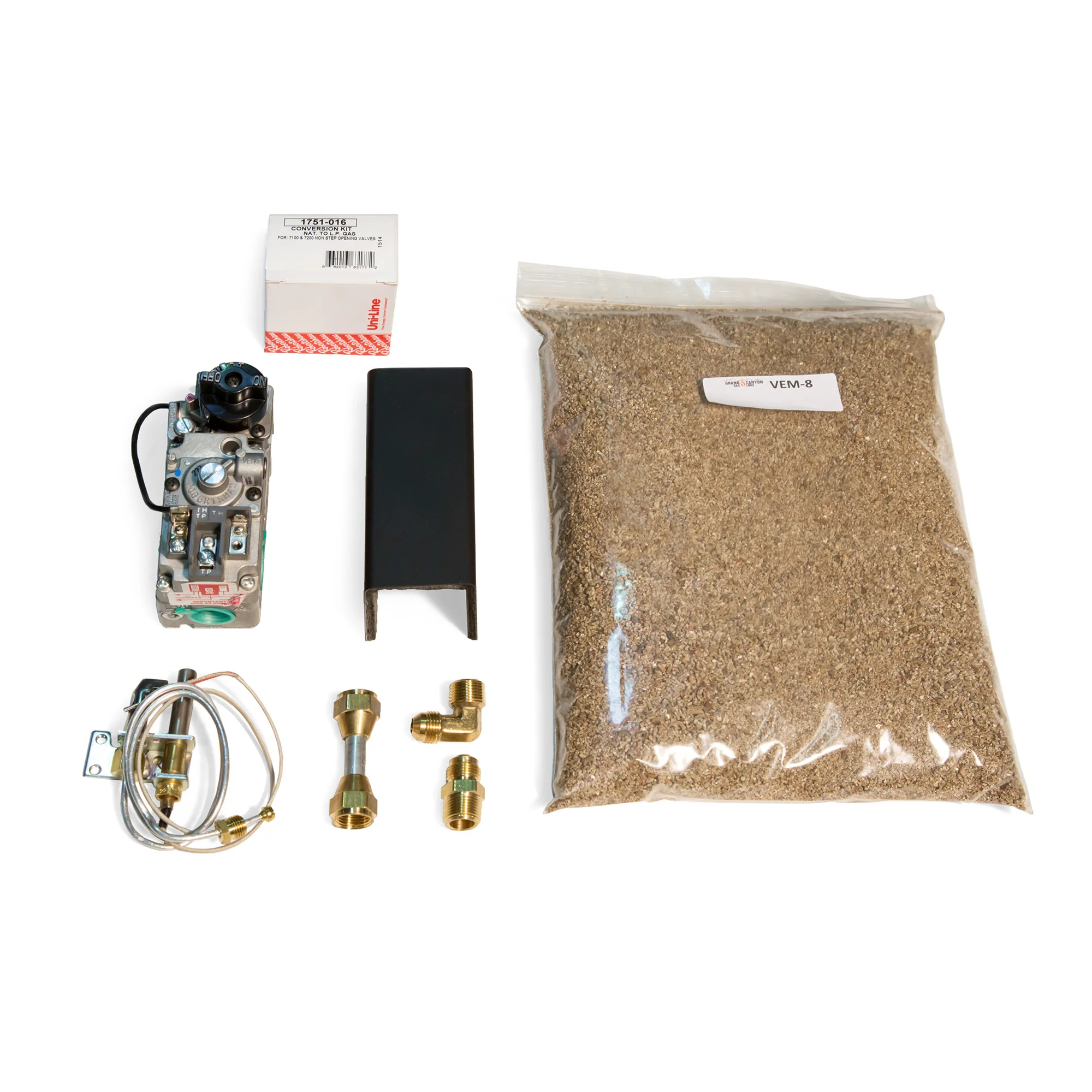

Millivolt Ignition Quick Mount Kit - Grand Canyon Gas Logs

Modulating Millivolt Features

• Part Number: MVQMK-N/LP
• Pilot: Standing Pilot System
• On-Demand System:
• Power:
• Design: Low Profile Design
• Assembly:
• Operations: On/Off Operations ONLY
• Max Inlet 14” W.C.

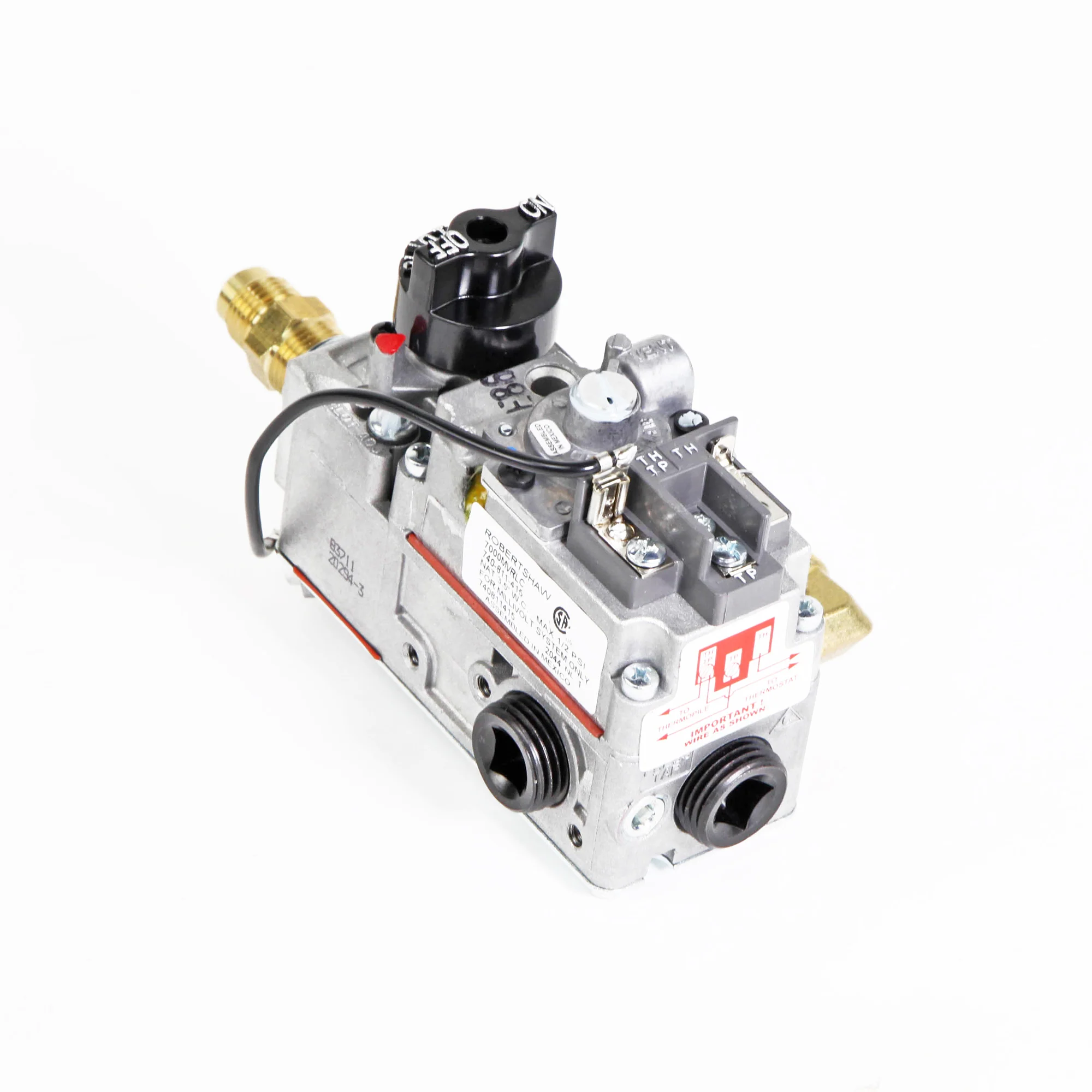

• Valve: Valve Temp Rating 175°
• NG:(NG) 3”-5” W.C. 70,000 BTU’s
• LP:(LP) 8”-12” W.C. 110,000 BTU’s


For use with following Grand Canyon Gas Logs Burners:

• 2-Burner 2BRNST
• 3-Burner 3BRNST
• Kiva Burner
• Glass Burner
• Jumbo / Jumbo Slim / Jumbo See Through

Preinstallation: For assembly of control system to an existing gas log system, ensure that all the media has been removed and the burner is clear of all dust and debris.  Check to ensure that the valve system and burner are labeled for the gas type supplied to the fireplace (Natural Gas or Propane).  Also check to ensure that the proper gas pressure is supplied to appliance (Minimum 5" W.C Natural Gas, Minimum 10" W.C Propane).
