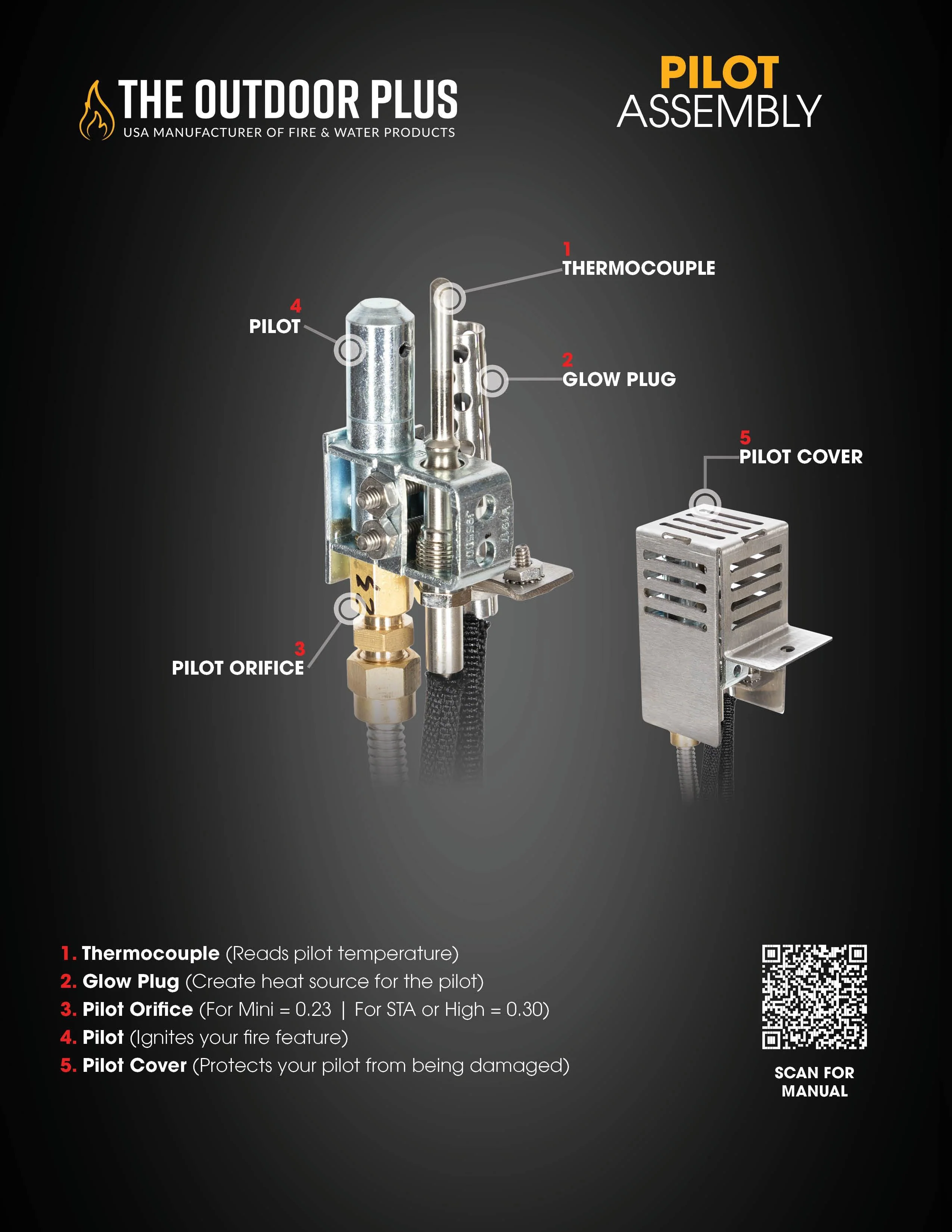

Pilot Igniter Assembly for 12V, 110V, or 30V DC Electronic Ignition Systems

Pilot Igniter Assembly works with Low Voltage and 110V Electronic Ignition Systems.

**New Pilots Available with 30DC Compatibility**

Assembly may appear slightly different due to manufacturer's updates, but compatibility will not be affected.

Please select based on Capacity for your system. The thread is measured on the top side of the valve, the output side.

This pilot igniter is compatible with:

TOP-500EIS-007-008 which is the root (main) part number, see below for actual part numbers:

Mini Capacity (typically on bowls - 190k BTU max - 1/2" Thread)

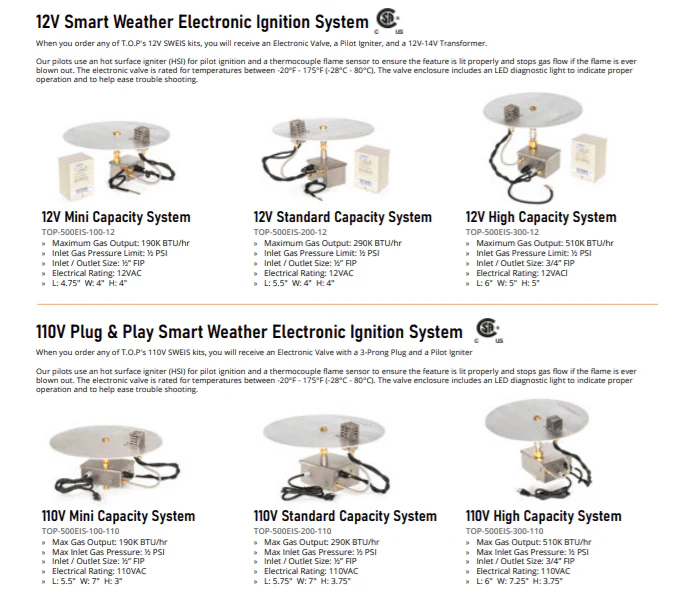

TOP-500EIS-100-12 - Low Voltage (hard wired units)

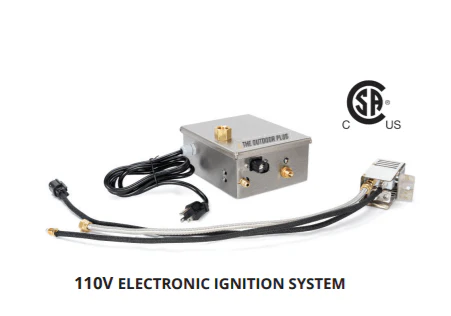

TOP-500EIS-100-110 - Plug and Play
TOP-500EIS-100-30DC - Low Voltage (hard wired units)
TOP-500EIS-100-30DC-110V - Plug and Play

Standard Capacity (typically on fire pits - 290k BTU max - 1/2" Thread)
TOP-500EIS-200-12 - Low Voltage (hard wired units)
TOP-500EIS-200-110 - Plug and Play
TOP-500EIS-200-30DC - Low Voltage (hard wired units)
TOP-500EIS-200-30DC-110V - Plug and Play

High Capacity (typically on large installs - 510k BTU max - 3/4" Thread)
TOP-500EIS-300-12 - Low Voltage (hard wired units)
TOP-500EIS-300-110 - Plug and Play
TOP-500EIS-300-30DC - Low Voltage (hard wired units)
TOP-500EIS-300-30DC-110V - Plug and Play

Usually ships within 1-3 days
