24 VAC All Weather Electronic Ignition System (AWEIS) - Commercial Grade

AWEIS Standard Capacity Commercial Grade with 18"" Commercial Grade Pilot Burner

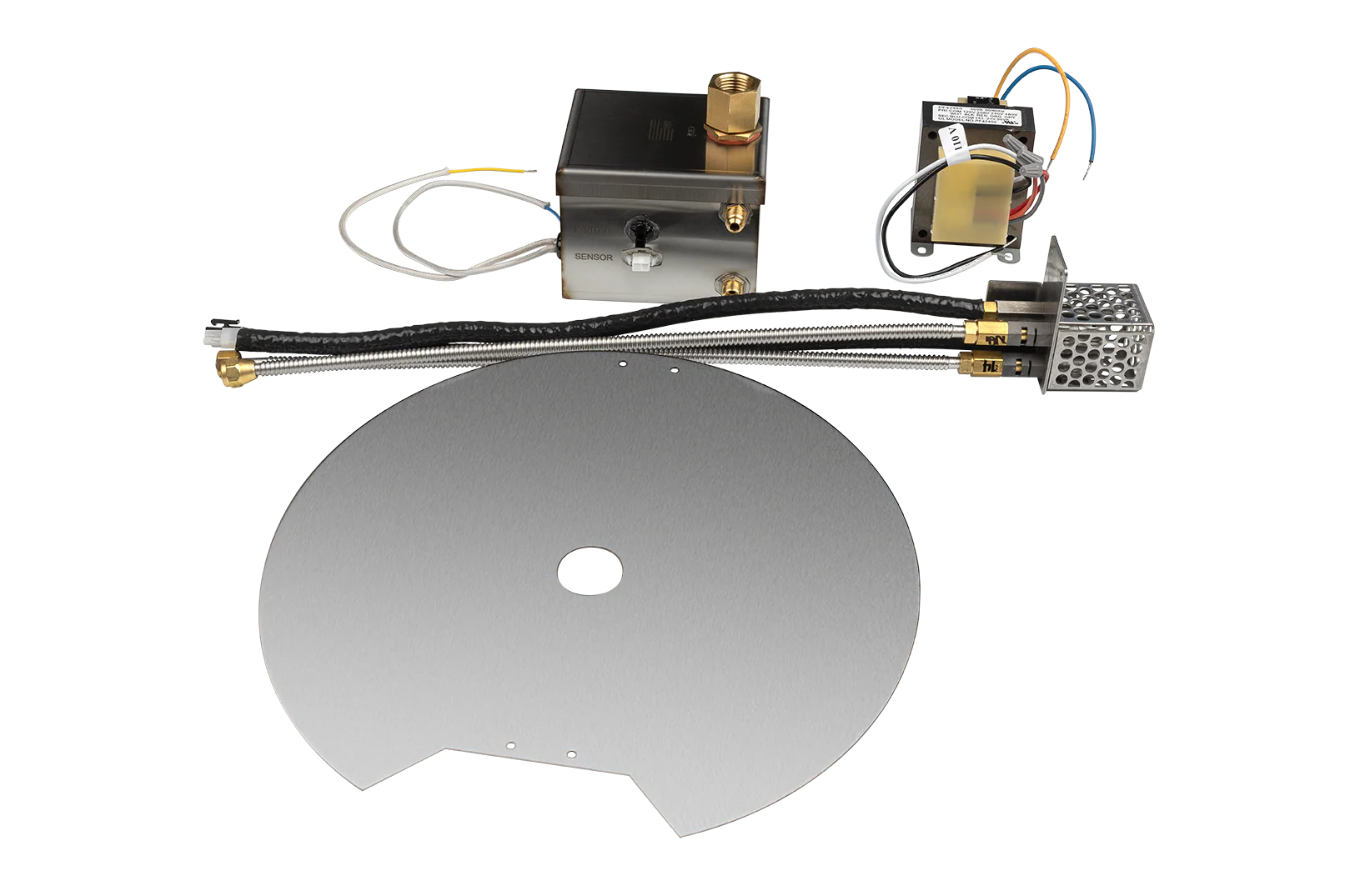

• Includes 24 volt AC Transformer, Pilot Burner Assembly, Ignition Control Module, Heat Deflector Shield and Install Instructions.

• (Inlet Size: 1/2" FIP  Outlet Size: 1/2" FIP) - 290K BTU's. (Pilot Burner sizes available upon request - 12"/18""/24"/ 30" // Extensions available after the sizes listed here.) - (4 Pin Molex)

AWEIS High Capacity Commercial Grade with 18"" Commercial Grade Pilot Burner

• Includes 24 volt AC Transformer, Pilot Burner Assembly, Ignition Control Module, Heat Deflector Shield and Install Instructions.
• (Inlet Size: 3/4" FIP  Outlet Size: 3/4""FIP) - 780K BTU's. (Pilot Burner sizes available upon request - 12"/18"/24"/30" // Extensions available after the sizes listed here.) - (4 Pin Molex)

AWEIS Extra High Capacity Commercial Grade with (2) 18"" Commercial Grade Pilot Burners

• Includes 75VA / 24 volt AC Transformer, (2) Pilot Burner Assemblies, Ignition Control Module, Heat Deflector Shield and Install Instructions.
• (Inlet Size: 1"" FIP  Outlet Size: 1"" FIP) - 1.1 Million BTU's. (Pilot Burner sizes available upon request - 12"/18"/24"/30" // Extensions available after the sizes listed here.) - (4 Pin Molex)"

Documents

Spec Sheet for Low Profile Standard Capacity

Spec Sheet for High Profile Standard Capacity

Spec Sheet for Low Profile High Capacity

Spec Sheet for High Profile High Capacity

Preinstallation Checklist

Pilot Burner Assembly Differences

AWEIS Troubleshooting Guide

AWEIS Installation Instructions

Automated Fire 101

Listing Report - FBD
