Jackery Solar Saga 100W Solar Panel
- Foldable & Portable
- Bifacial Solar Panel, Improved Charging Efficiency
- IP68 Waterproof Rating

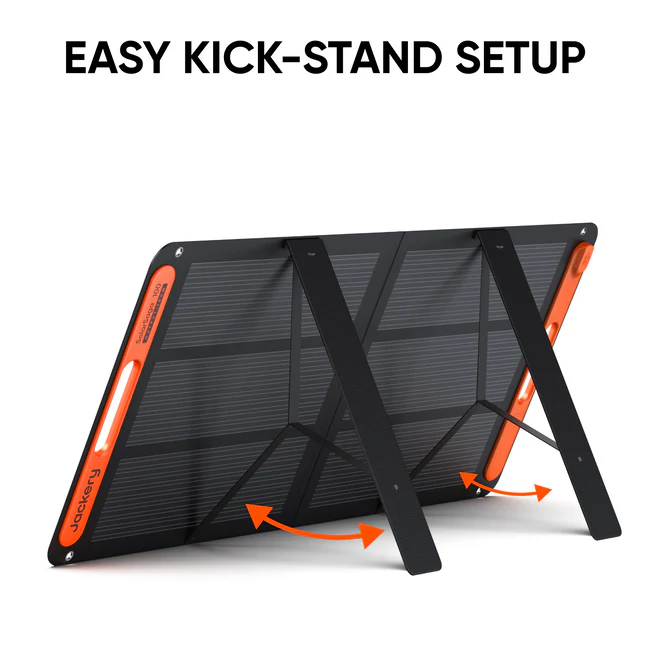

- Adjustable Kickstands
- Compact and Lightweight
- Package list: SolarSaga 100W Solar Panel*1, 3 meters multi-functional cable (with USB charing ports)*1, DC8020 to DC7909 Adapter*1, User Manual*1
- To connect the SolarSaga with different Explorer portable power stations or other extension functions, please check the accessories it requires.
-
Warranty Extension: 3-year warranty
Solar Saga 100W Specs
General
- Weight: 7.94 lbs ± 0.66 lbs (3.6 kg ± 0.3 kg)
- Protection Class Against Electric Shock: Class II
- Waterproof: IP68
- Operating Temperature Range: -4~149 ℉（-20℃~65℃）
- Warranty: 3 Years
Ports
- USB-A Output: 5V⎓2.4A
- USB-C Output: 5V⎓3A
Solar
- Maximum System Voltage: 60V
- Maximum Reverse Current: 15A
- Bifaciality Coefficient (Back/Front): Pmax>30%, Voc>95%, Isc>32%
- Voltage Temperature Coefficient: -0.268%/°C
- Power Temperature Coefficient: -0.29%/°C
STC (1000W/㎡, 25℃, AM 1.5)
- Peak Power (Pmax): 100W±5W
- Open Circuit Voltage (VOC): 24.8V±5%
- Short Circuit Current (Isc): 5.4A±5%
- Power Voltage (Vmp): 20.0V±5%
- Power Current (Imp): 5.0A±5%
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
- Peak Power (Pmax): 104W±5W
- Open Circuit Voltage (Voc): 25V±5%
- Short Circuit Current (Isc): 5.8A±5%
- Power Voltage (Vmp): 20.1V±5%
- Power Current (Imp): 5.2A±5%
Dimensions
- Folded: 24.0 x 21.7 x 1.4 in (610 x 552 x 35 mm)
- Unfolded: 48.03 x 21.73 x 0.79 in (1220 x 552 x 20 mm)
