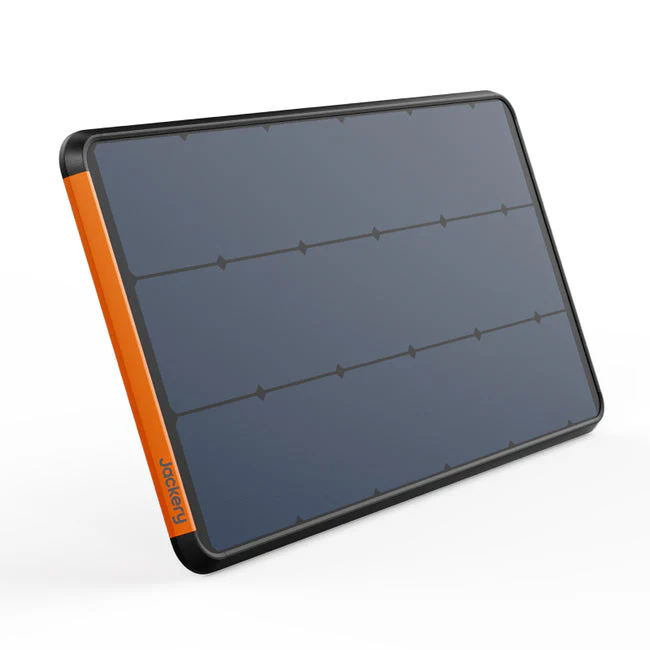

Jackery Solar Saga 100w Prime Solar Panel

Product image 1
Product image 2

Jackery Solar Saga 100w Prime Solar Panel

  • Features an unshaded front design, ensuring optimal sunlight absorption and converting more solar energy into usable power
  • Flexible design allows for easy setup in a variety of environments, making it ideal for RV, Camping, or emergency power needs
  • The patented arc design not only enhances its aesthetic appeal but also redefines safety standards
  • With international certification, offers Long-lasting Reliability
  • For older Jackery models like the E1000, E550, E500 E300, E240 & E160, a DC8020 to DC7909 adapterĀ is required

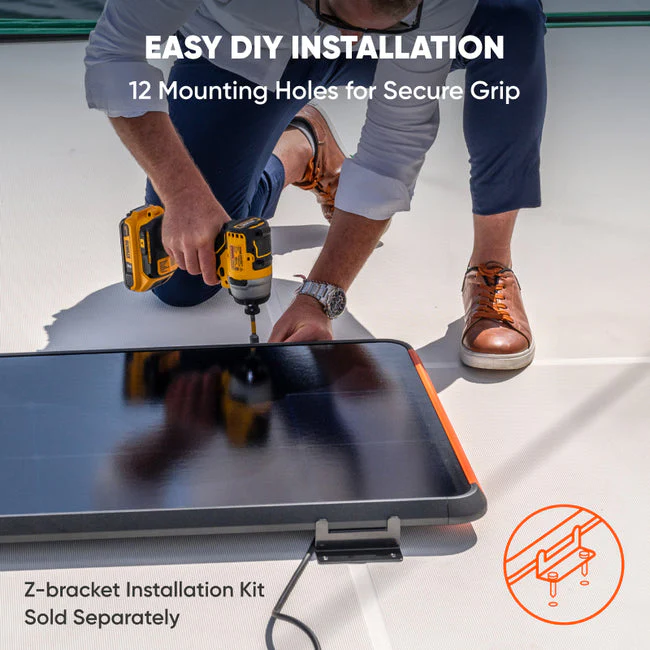

  • Package List: Jackery SolarSaga 100 Prime *1ļ¼ŒSolar Panel Cable*1 (9.58 feet)ļ¼ŒAnderson to DC8020 Adaptor *1ļ¼ŒZ Bracket Kit *1 and User Guide
  • Jackery Anderson Connector and Cable is designed specifically for connecting the SolarSaga 100 Prime.
  • To connect the SolarSaga with different Explorer portable power stations or other extension functions, please check the accessories it requires.
  • Warranty Extension: 5-year warranty

NOTICE

1. For older Jackery models like the E1000, E550, E500 E300, E240 & E160, a DC8020 to DC7909 adapter is required

2. Package Listļ¼šJackery SolarSaga 100 Prime *1ļ¼ŒSolar Panel Cable*1 (9.58 feet)ļ¼ŒAnderson to DC8020 Adaptor *1ļ¼ŒBracket *1 and User Guide

3. Jackery Anderson Connector and Cable is designed specifically for connecting the SolarSaga 100 Prime,

Solar Saga Prime 100W Specs
General
  • Weight: 13.23 lbs (6 kg)
  • Protection Class Against Electric Shock: Class II
  • Waterproof: IP68
  • Operating Temperature Range: -40Ā°C~85Ā°C (-40ā„‰~185ā„‰)
  • Warranty: 3 Years

Solar

  • Maximum System Voltage: 600V DC
  • Maximum Reverse Current: 15A
  • Bifaciality Coefficient (Back/Front): Pmax>65%, Voc>97%, Isc>65%
  • Voltage Temperature Coefficient: -0.268%/Ā°C
  • Power Temperature Coefficient: -0.29%/Ā°C

STC (1000W/掔, 25ā„ƒ, AM 1.5)

  • Peak Power (Pmax): 100WĀ±5W
  • Open Circuit Voltage (VOC): 22.7VĀ±5%
  • Short Circuit Current (Isc): 5.53AĀ±5%
  • Power Voltage (Vmp): 18.7VĀ±5%
  • Power Current (Imp): 5.30AĀ±5%

BNPI (Front 1000W/掔, Rear 135W/掔, 25Ā°C, AM 1.5)

  • Peak Power (Pmax): 108WĀ±5%
  • Open Circuit Voltage (Voc): 23.0VĀ±5%
  • Short Circuit Current (Isc): 5.86AĀ±5%
  • Power Voltage (Vmp): 19.0VĀ±5%
  • Power Current (Imp): 5.62AĀ±5%

Dimensions

  • Folded: No
  • Unfolded: 38.8 x 21.7 x 1.1in (986 x 552 x 29mm)

Ā
