21" Indoor Assembled Two Burner Gas Burners
Minimum Fireplace Requirements
- Width
- Front: 33"
- Rear: 21"
- Front: 33"
- Depth: 14"
- Height: 14"
Available in Multiple Ignitions.
Assembled burner systems feature factory tested and installed control systems. Tested to the ANSI standard, these assembled systems are a plug and play approach. Indoor use ONLY, 100% ceramic-based paint. Construction with metal bar stock and burner pipes. All burner kits include burner, lava rock, black embers, flex line, damper clamp & vermiculite (LP ONLY)

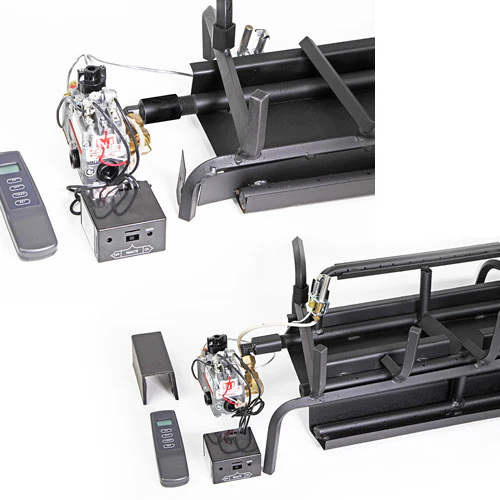

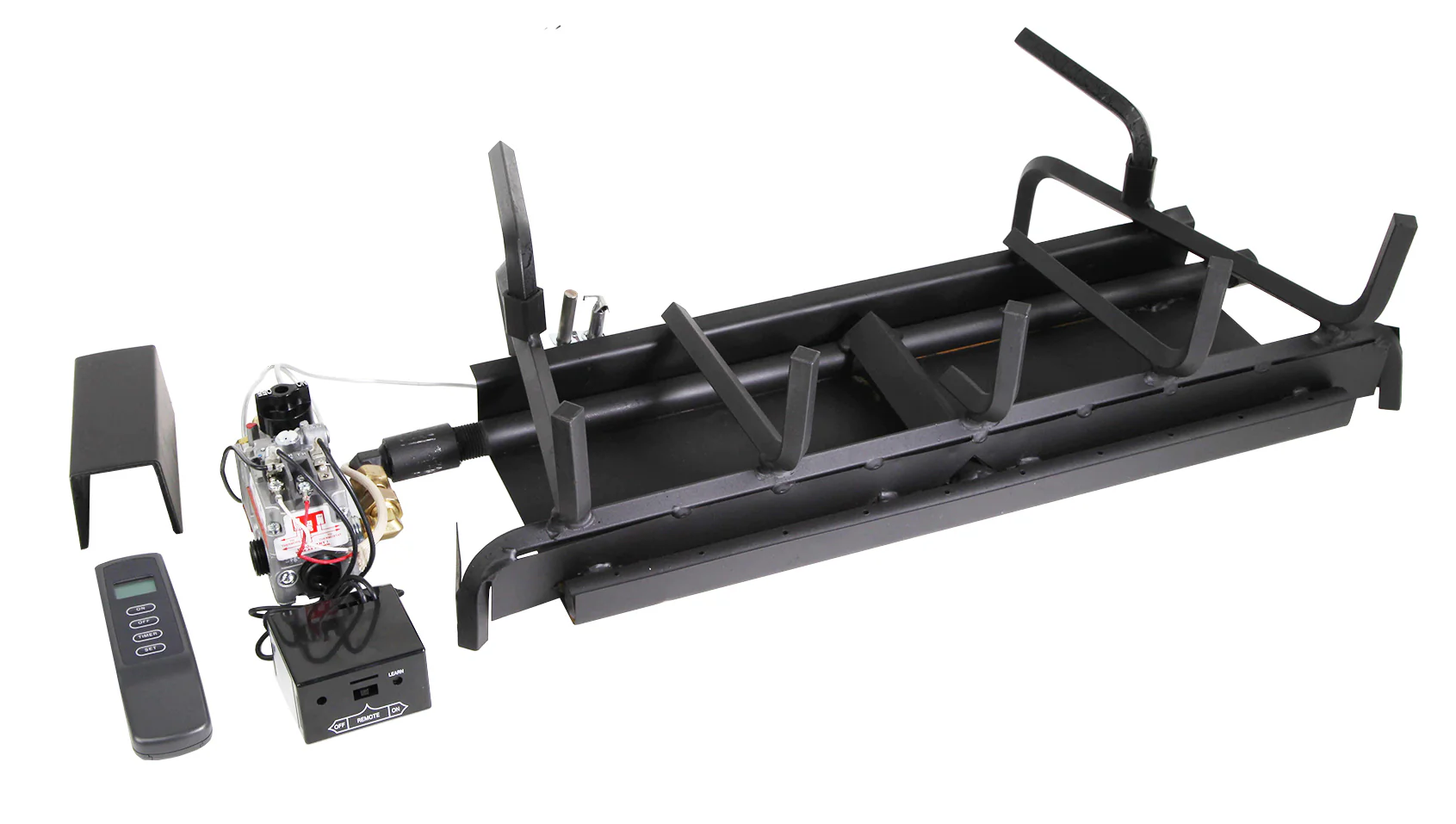

Assembled Modulating Millivolt System
- Pilot: Standing Pilot System
- Power: Millivolt
- Design: Low Prole Side Mount
- Operations: Variable Flame Remote Only
- Max Inlet 14” W.C.
- Valve: Valve Temp Rating 225°
- NG: (NG) 7” W.C. 120,000 BTU’s
- LP: (LP) 7”-14” W.C. 120,000 BTU’s

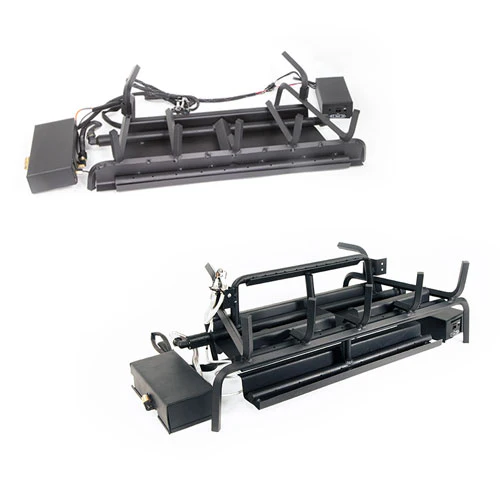

Assembled Battery Electronic Ignition System
- Pilot: On-Demand
- Power: 2-D Cell Battery Electronic Ignition
- Design: Low Prole Split System
- Operations: On/O Remote Operations ONLY
- Max Inlet 14” W.C.
- Valve: Valve Temp Rating 175°
- NG: (NG) 3”-7” W.C. 120,000 BTU’s
- LP: (LP) 8”-14” W.C. 140,000 BTU’s

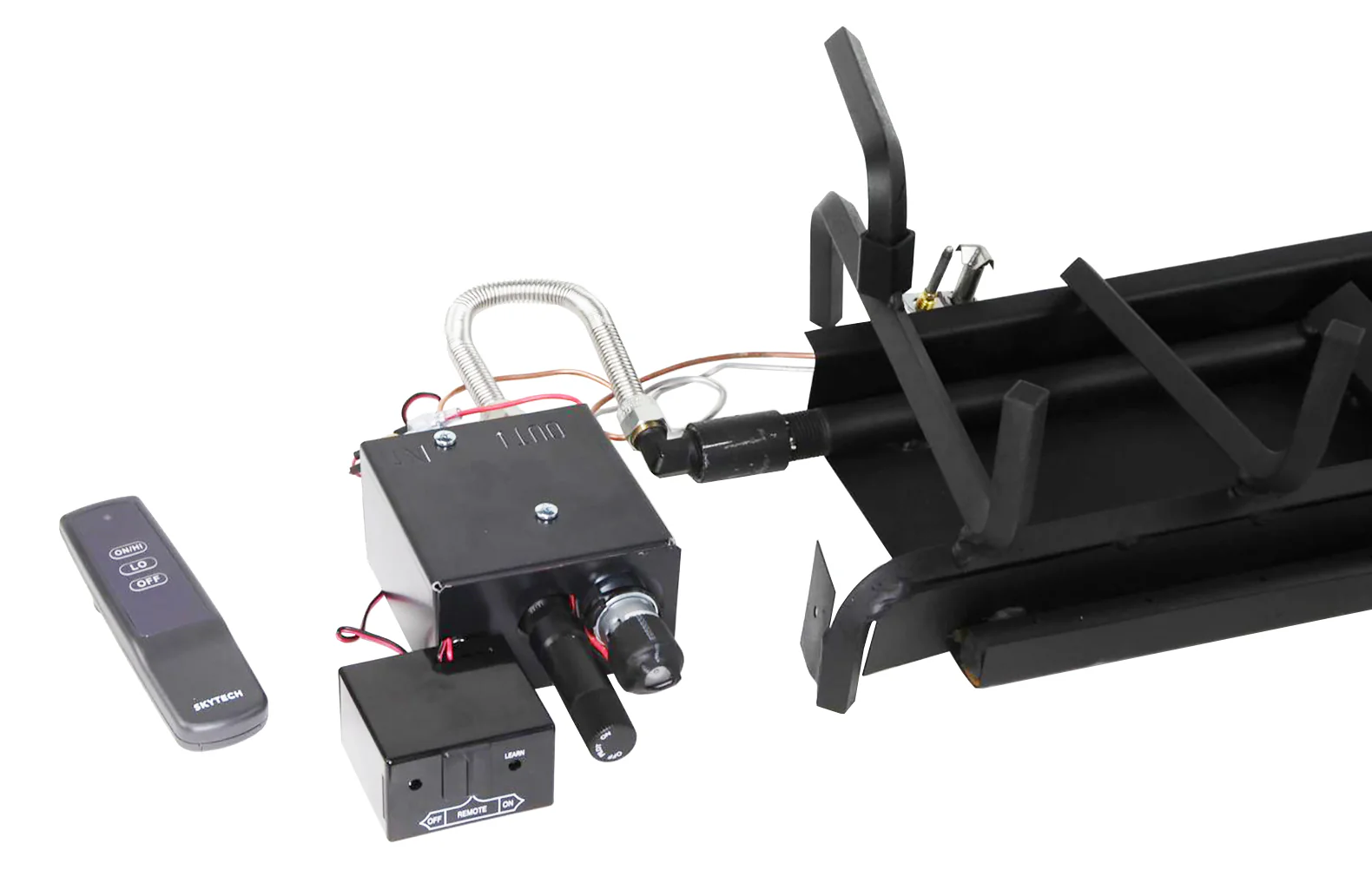

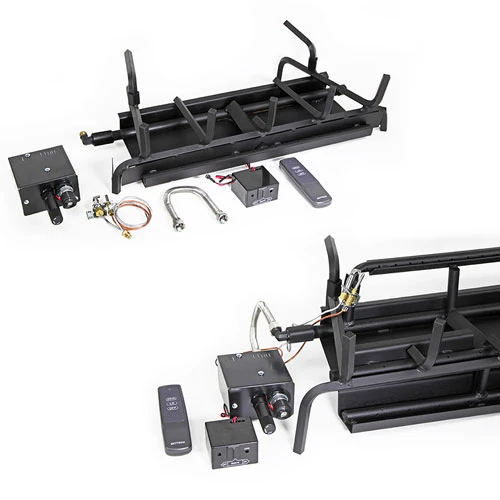

Assembled Millivolt System
- Pilot: Standing Pilot System
- Power: Millivolt
- Design: Low Prole Side Mount
- Operations: On/O Remote or Wall Switch
- Max Inlet 14” W.C.
- Valve: Valve Temp Rating 175°
- NG:(NG) 3”-5” W.C. 70,000 BTU’s
- LP:(LP) 8”-12” W.C. 110,000 BTU’s

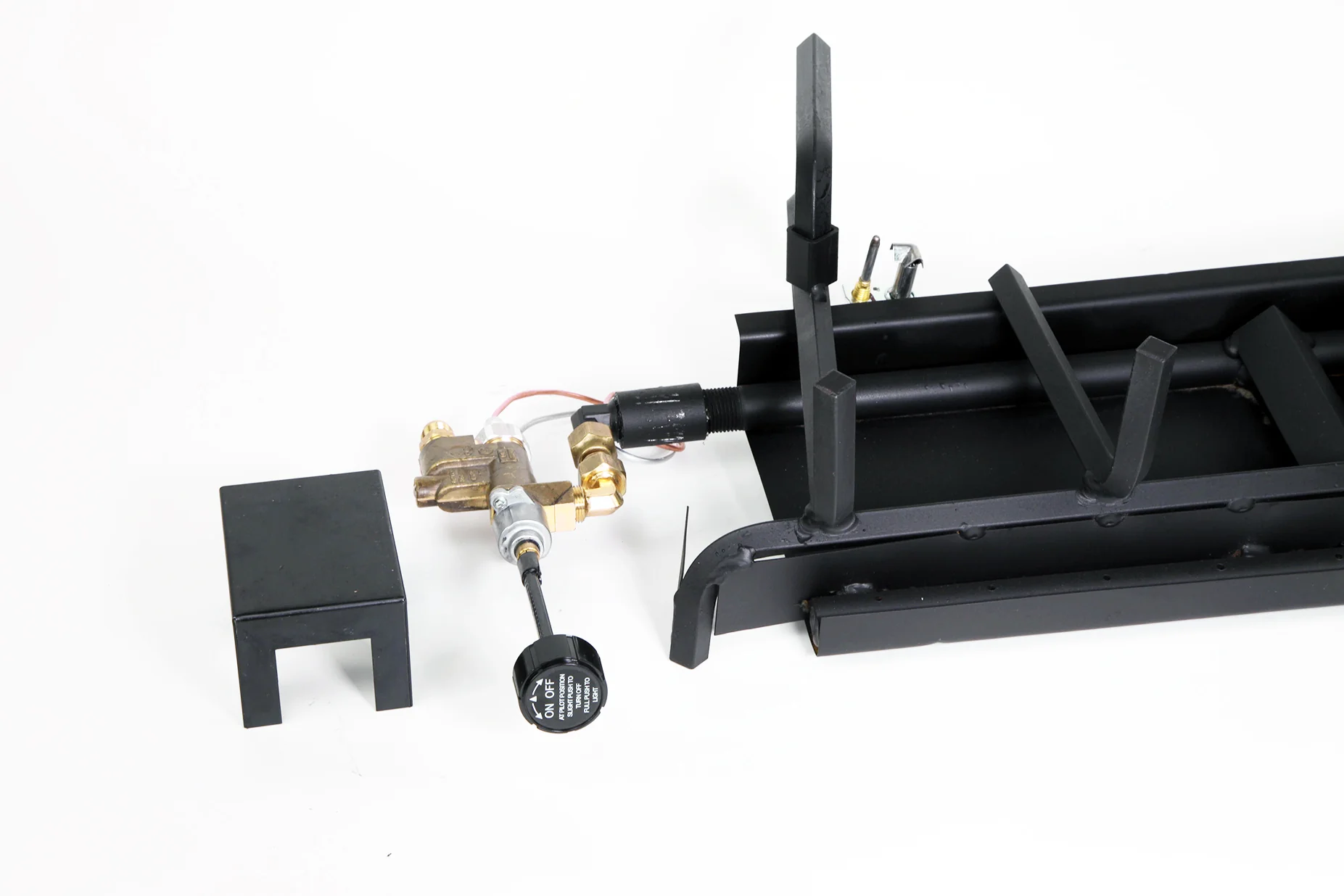

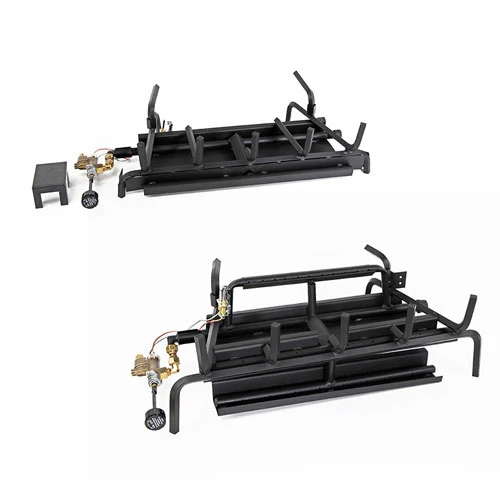

Assembled Safety Pilot Unit
- Pilot: Standing Pilot System
- Power: Millivolt
- Design: Low Prole Side Mount
- Operations: Manual On/O Operations ONLY
- Max Inlet 14” W.C.
- Valve: Valve Temp Rating 300°
- NG: (NG) 90,000 BTU’s
- LP: (LP) 90,000 BTU’s
Documents
- 2/3 Burner Manual - English
- 2/3 Burner Manual - French
- 2/3 Burner Installation and Operational Manual - English
- 2/3 Burner Installation and Operational Manual - French
- Minimum Fireplace Dimensions
Ignition Manuals
Specification Sheets
Original: $610.00
-70%$610.00
$183.00Product Information
