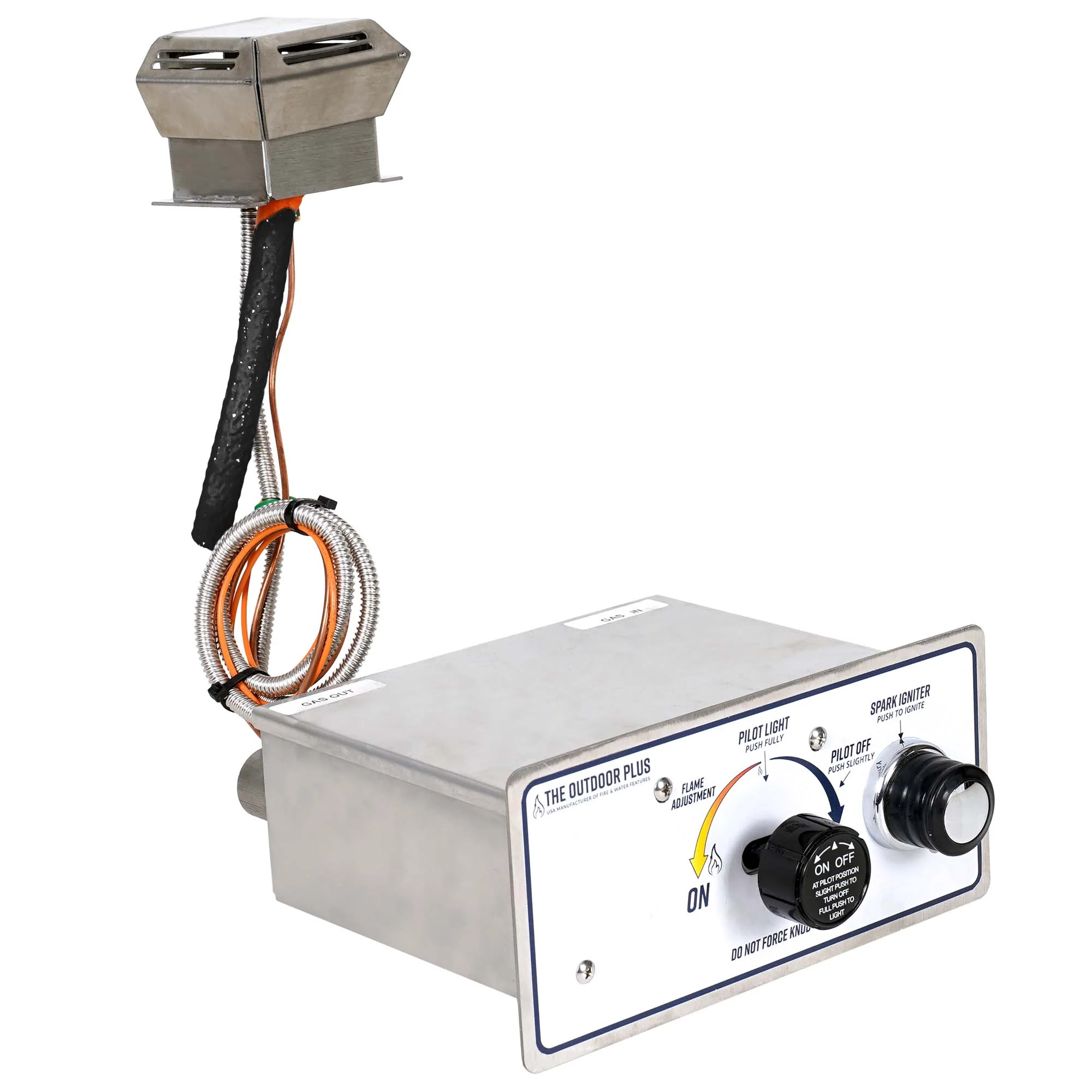

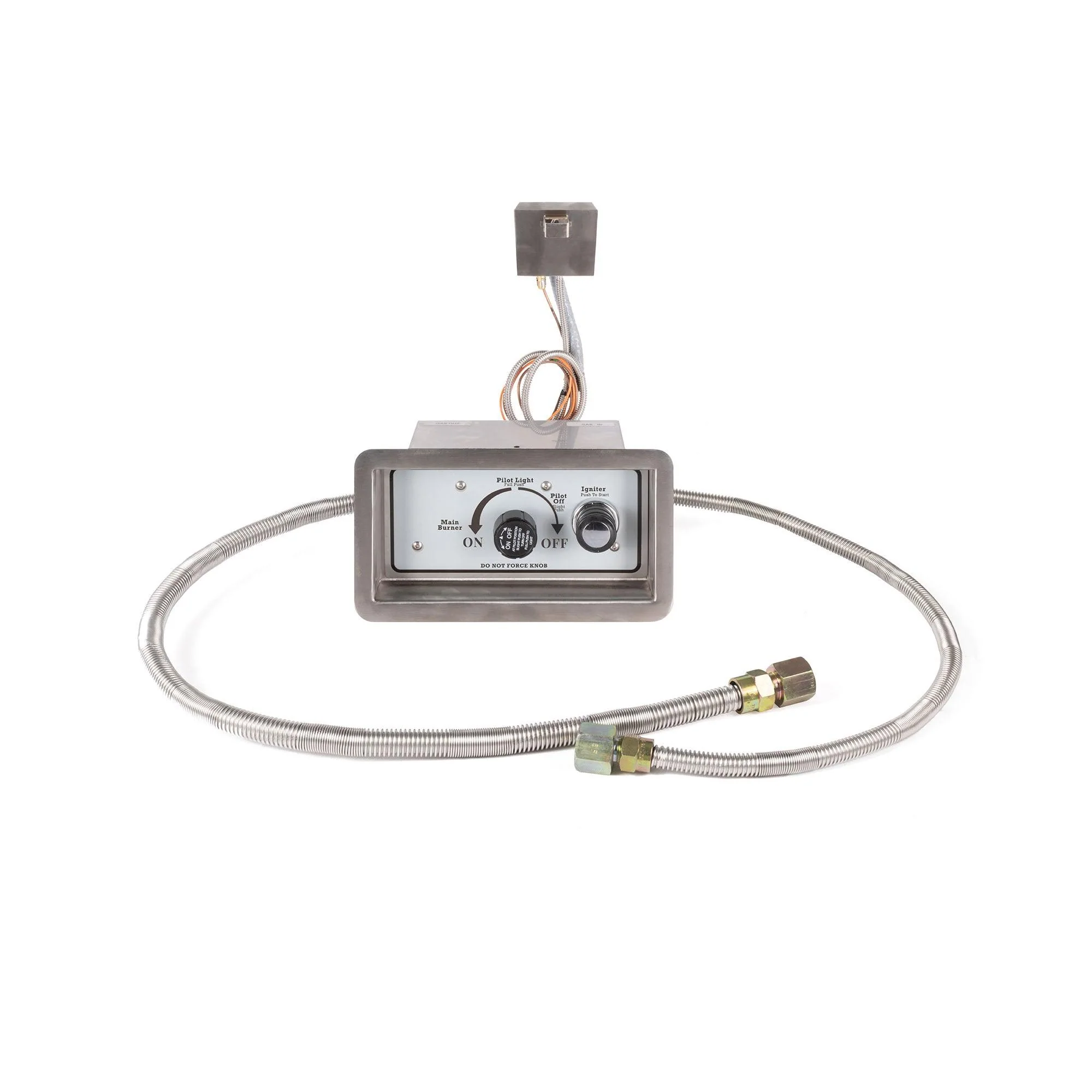

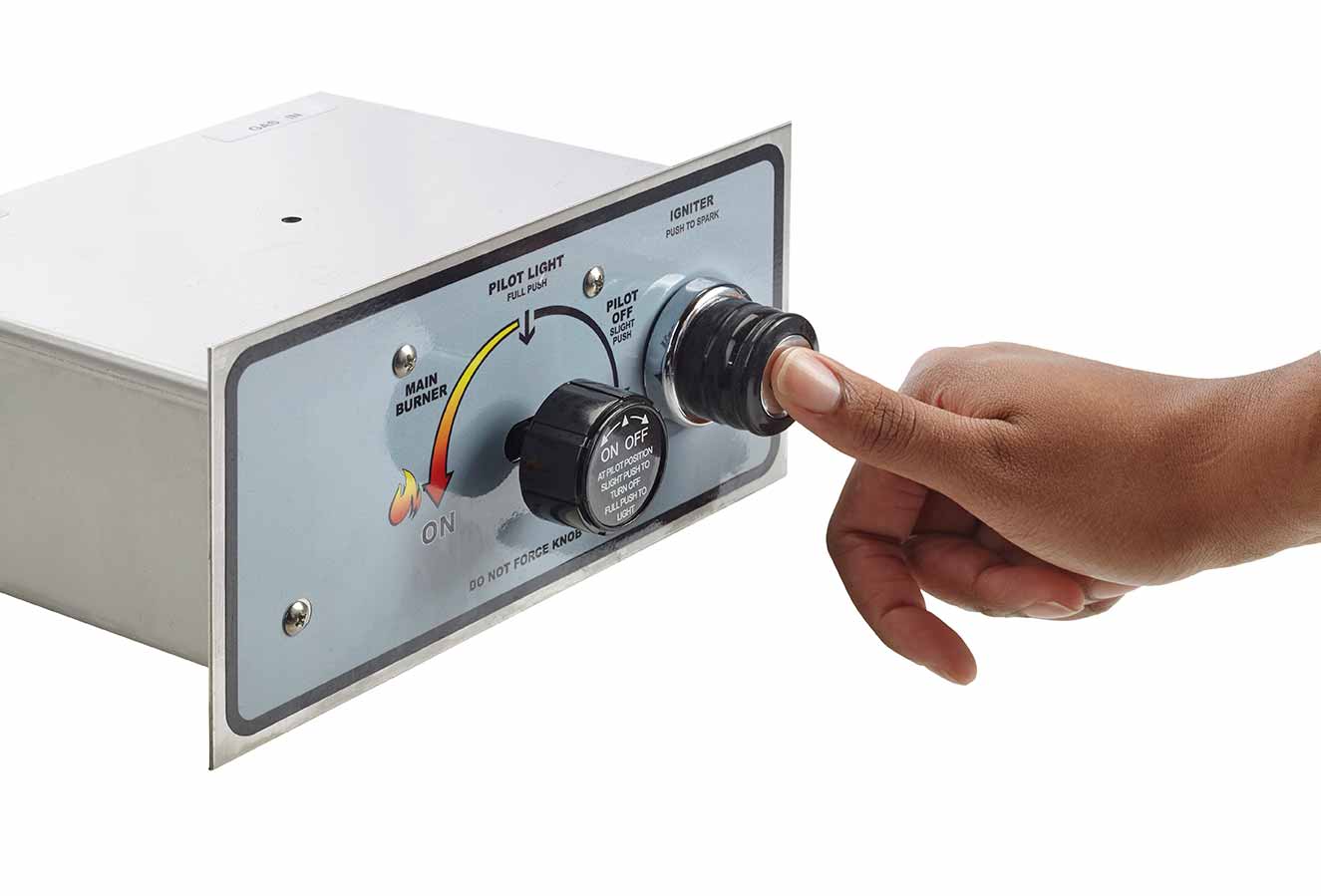

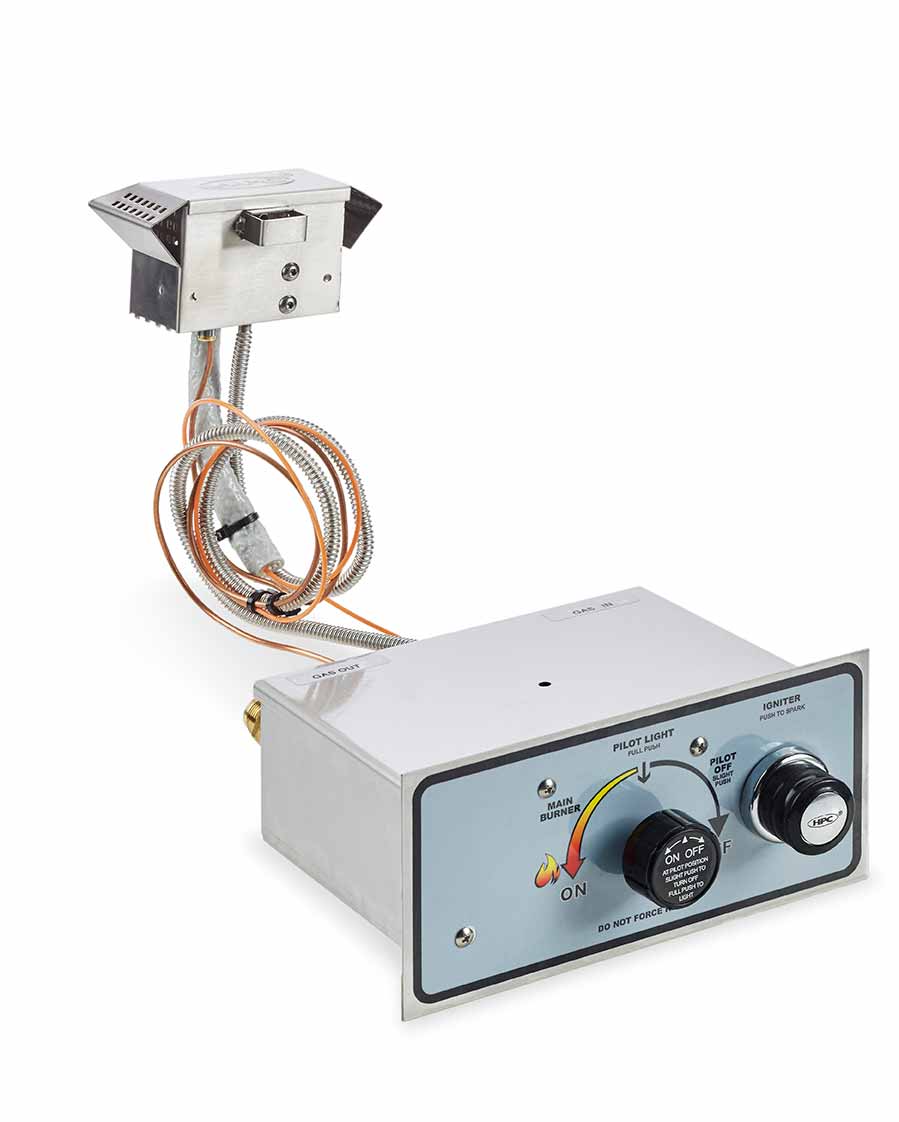

This system utilizes a standing pilot with thermocouple. Has flame sensing technology to safely manage the flame and gas flow. Offers manual flame height adjustment, manual switch spark igniter (battery operated), and a safety pilot valve mounted in a stainless steel box.
Includes:
-
Assembled stainless steel control box
- 36" Pilot assembly with spark igniter
- Blowout box

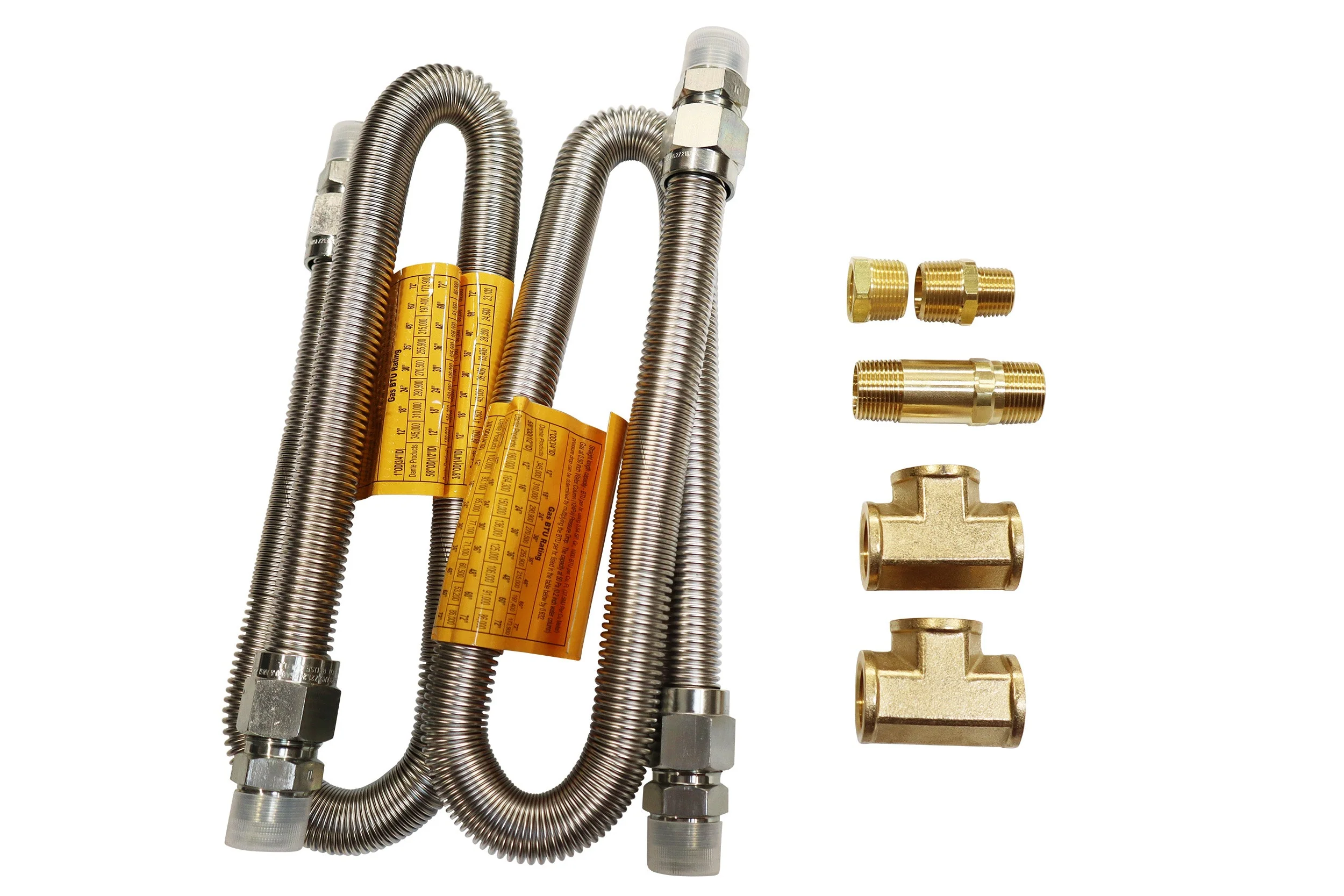

- Flex line
- Hard pipe and fittings
Recommended FPPK Burner Size Based on HPC Burners
| Burner Type | Size w/ FPPK High Capacity | Size w/ FPPK Medium Capacity |
| Penta Series | 18" ~ 30" |
12" ~ 24" |

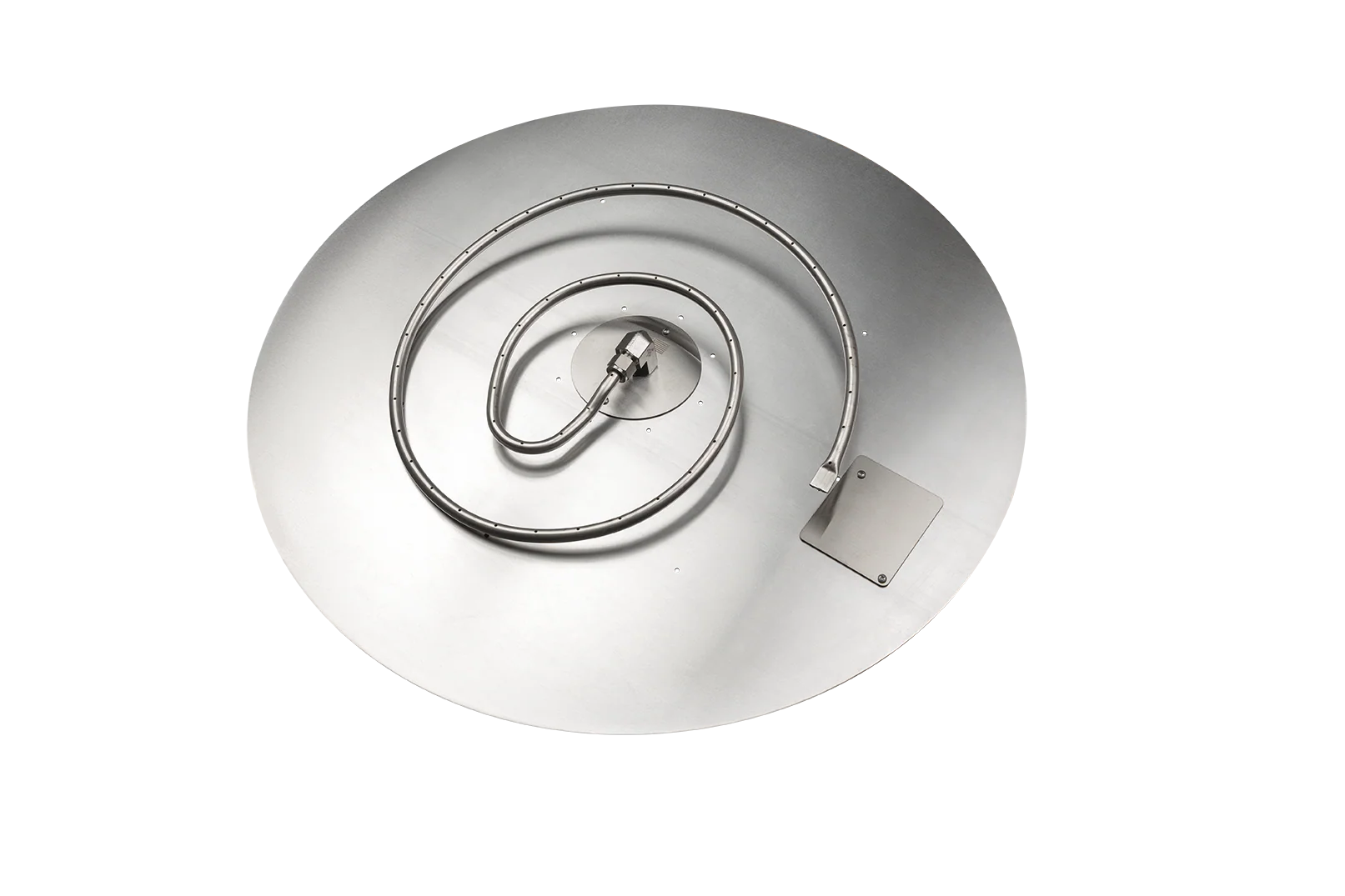

| Round Burner | 18" ~ 30" | 12" ~ 18" |

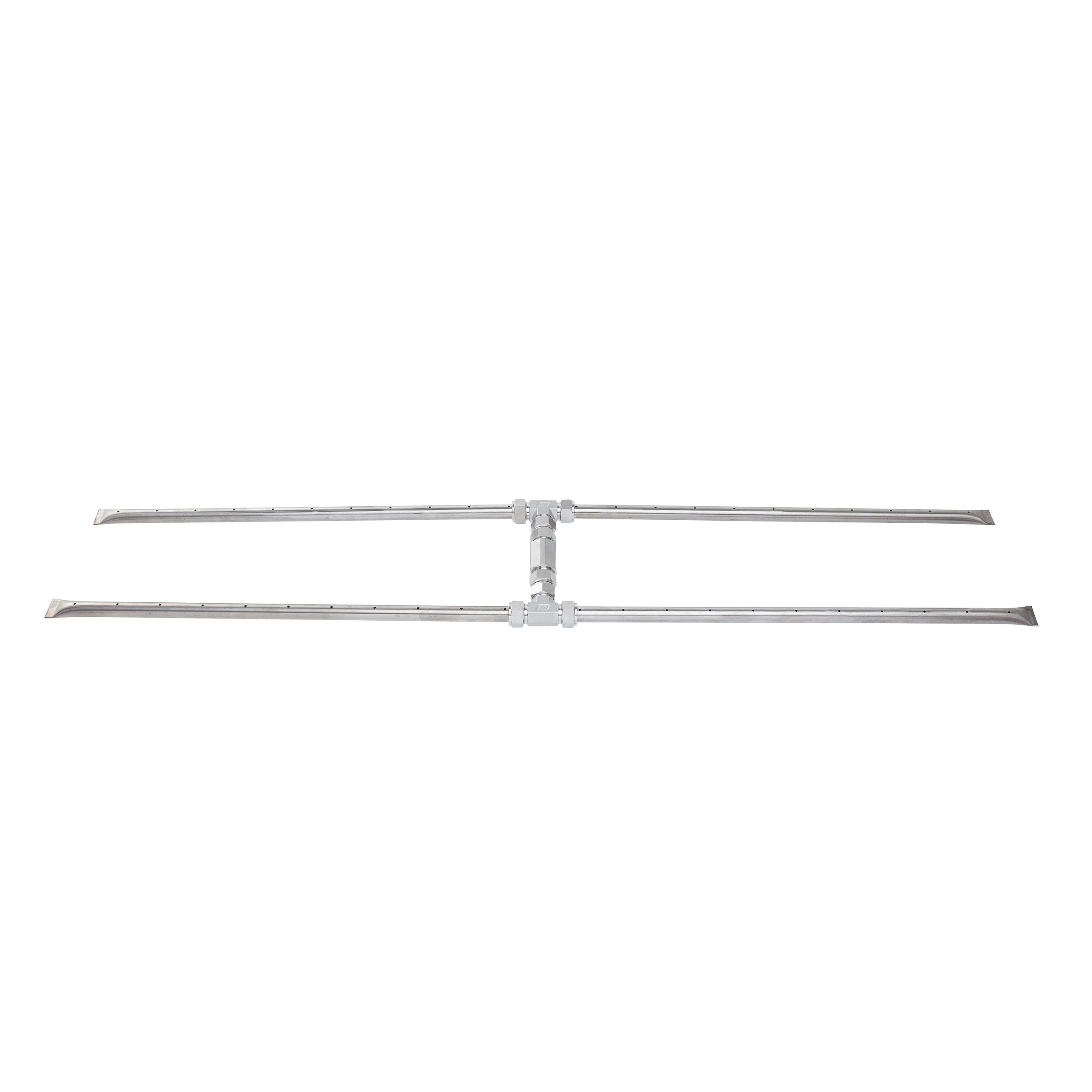

| H-Burner | 30" x 8" ~ 48" x 10" | 24" x 6" ~ 30" x 8" |

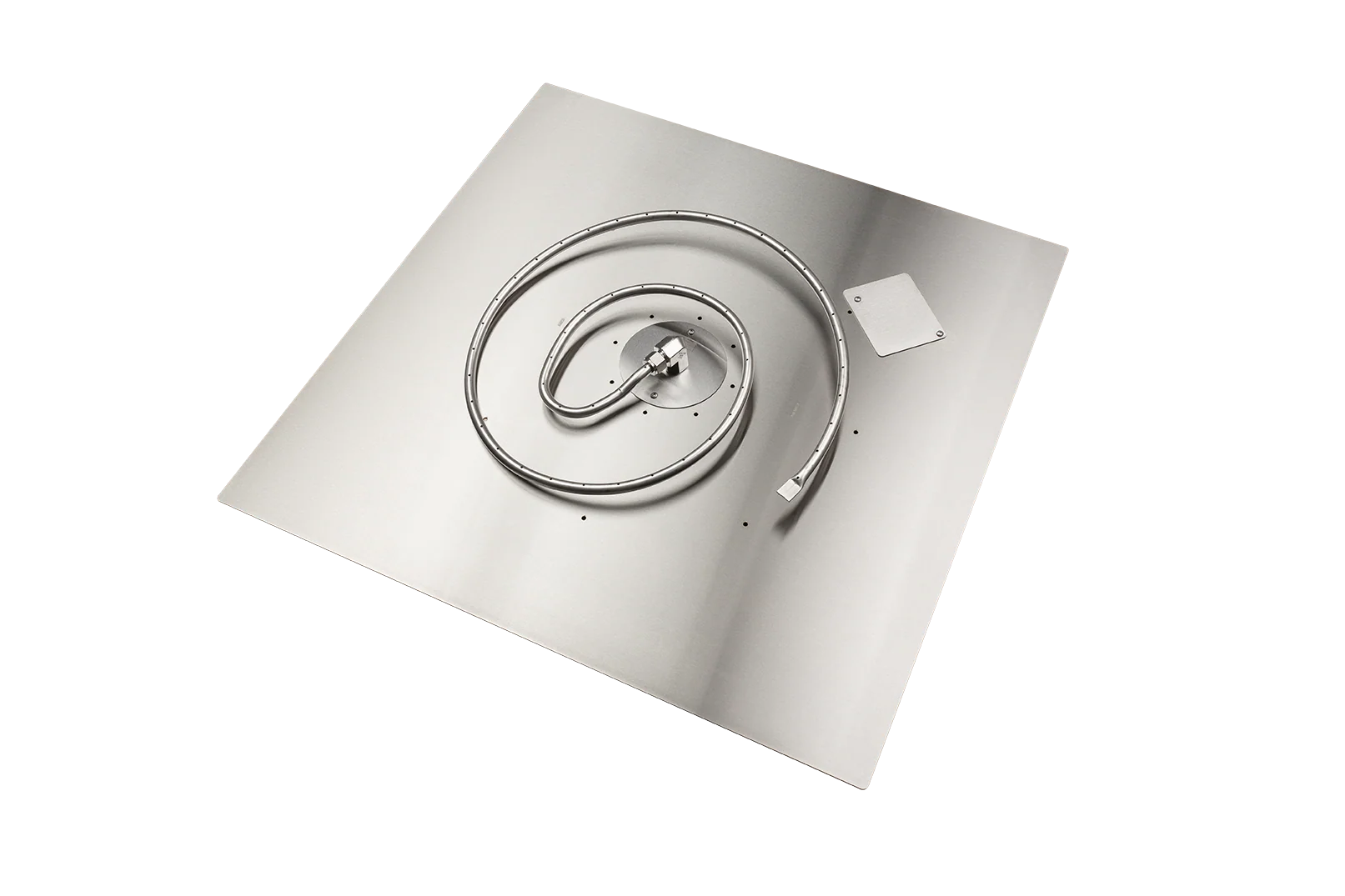

| Square Burner | 18" ~ 24" | 12" ~ 18" |
| T-Burner | 50" ~ 72" | 36" ~ 48" |
