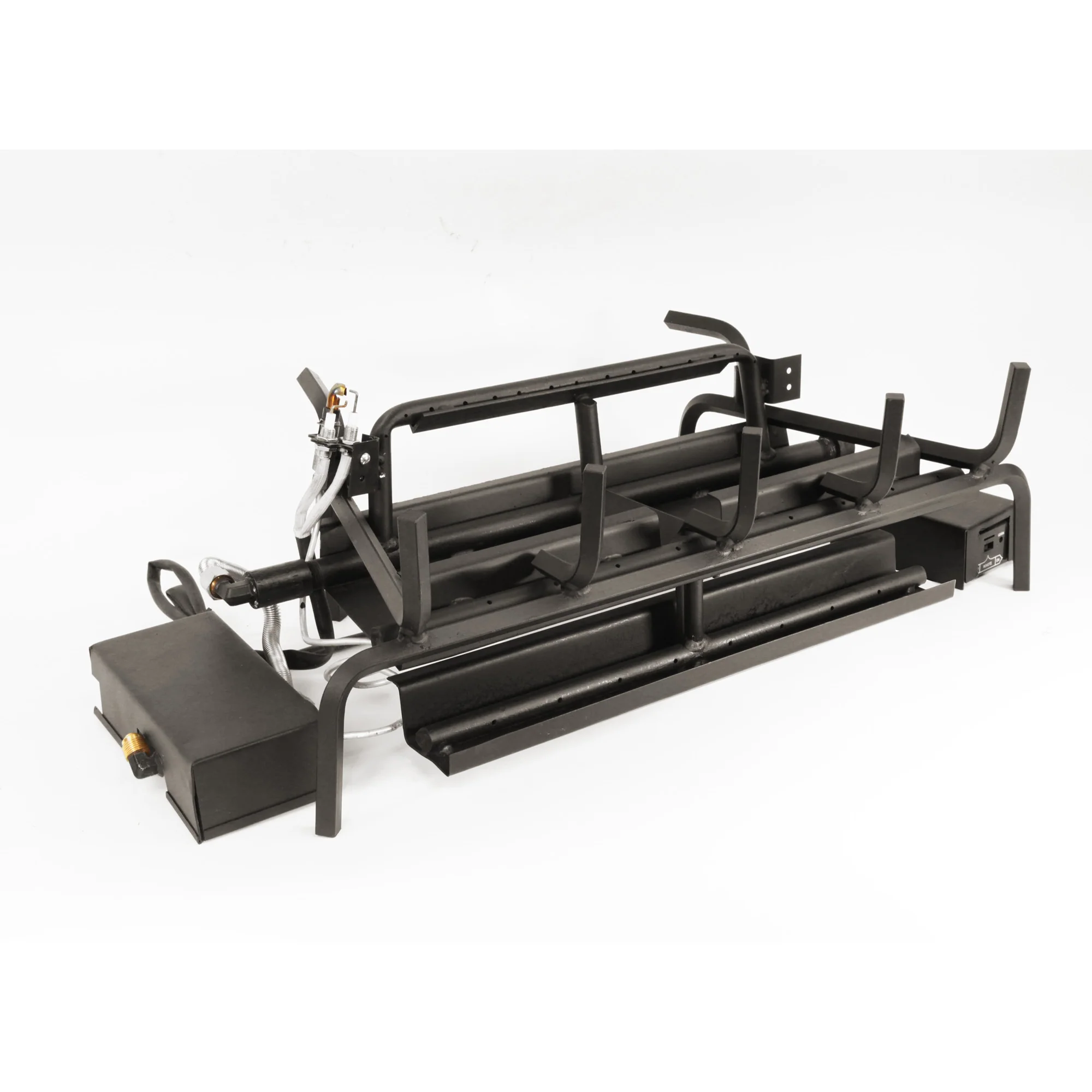

18" Indoor Assembled Three Burner Gas Burners

Minimum Fireplace Requirements

  • Width
    • Front: 30"
    • Rear: 18"
  • Depth: 14"
  • Height: 16"

Available in Multiple Ignitions.

Assembled burner systems feature factory tested and installed control systems. Tested to the ANSI standard, these assembled systems are a plug and play approach. Indoor use ONLY, 100% ceramic-based paint. Construction with metal bar stock and burner pipes. All burner kits include burner, lava rock, black embers, flex line, damper clamp & vermiculite (LP ONLY)

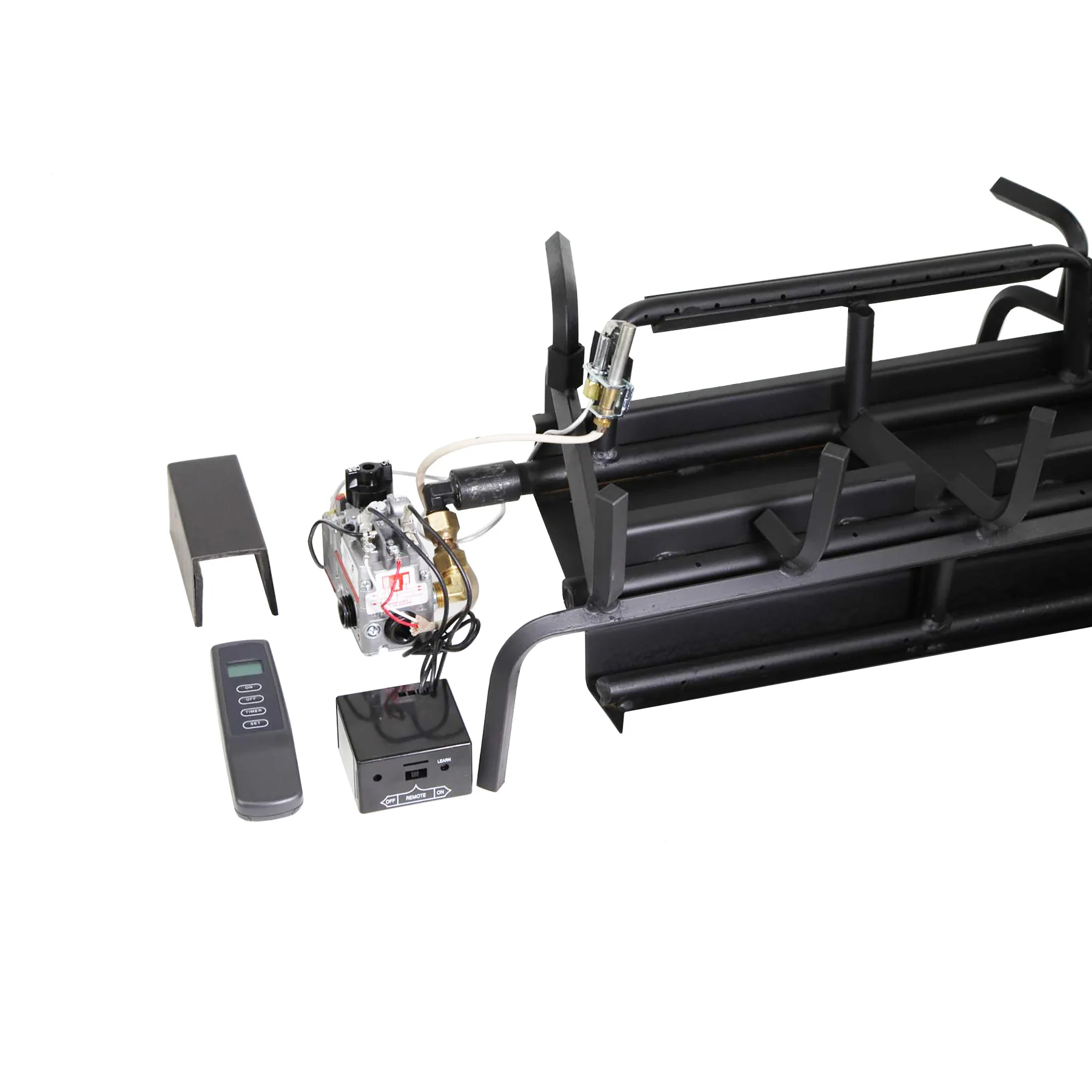

Assembled Modulating Millivolt System

  • Pilot: Standing Pilot System
  • Power: Millivolt
  • Design: Low Prole Side Mount
  • Operations: Variable Flame Remote Only
  • Max Inlet 14” W.C.
  • Valve: Valve Temp Rating 225°
  • NG: (NG) 7” W.C. 120,000 BTU’s
  • LP: (LP) 7”-14” W.C. 120,000 BTU’s

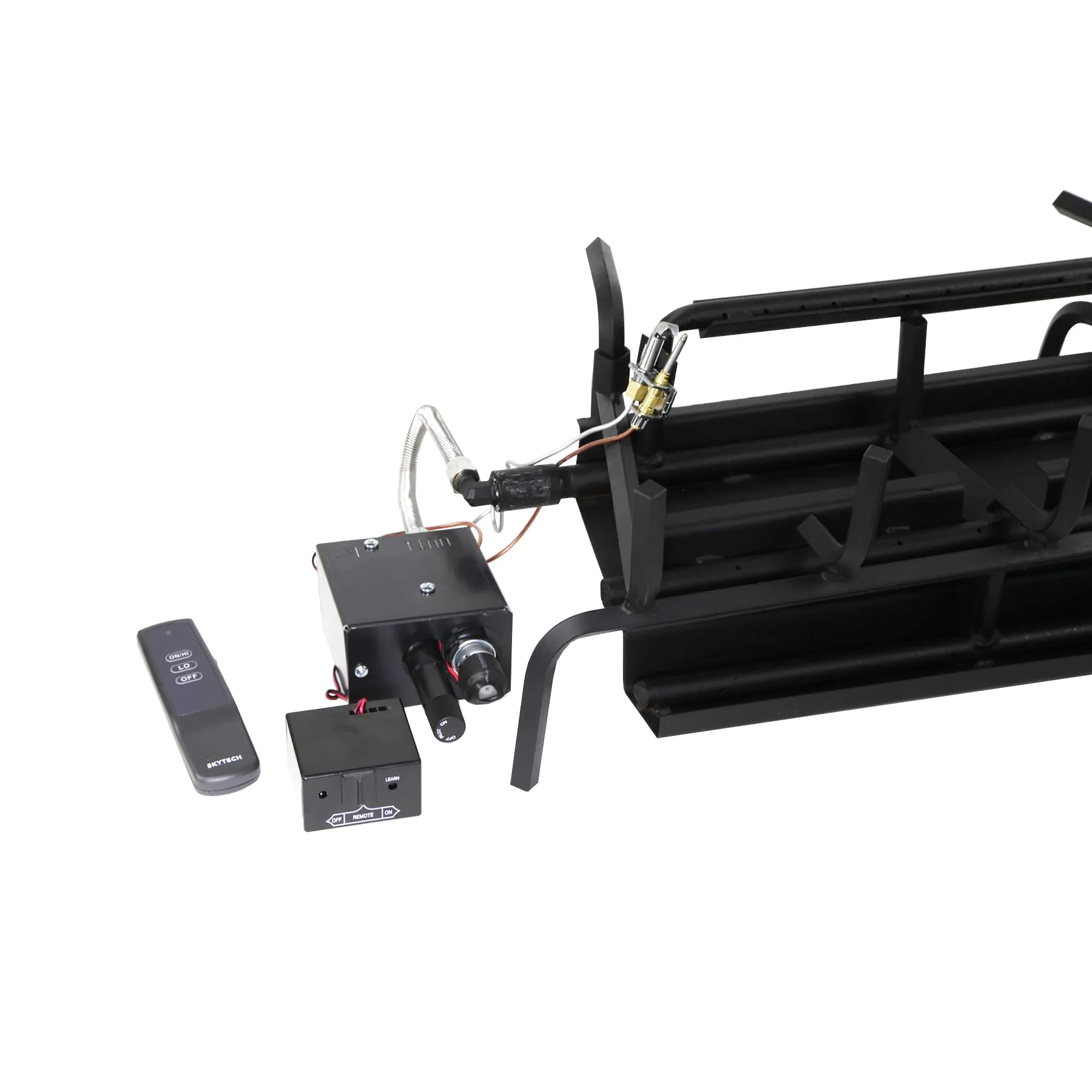

Assembled Battery Electronic Ignition System

  • Pilot: On-Demand
  • Power: 2-D Cell Battery Electronic Ignition
  • Design: Low Prole Split System
  • Operations: On/O Remote Operations ONLY
  • Max Inlet 14” W.C.
  • Valve: Valve Temp Rating 175°
  • NG: (NG) 3”-7” W.C. 120,000 BTU’s
  • LP: (LP) 8”-14” W.C. 140,000 BTU’s

Assembled Millivolt System

  • Pilot: Standing Pilot System
  • Power: Millivolt
  • Design: Low Prole Side Mount
  • Operations: On/O Remote or Wall Switch
  • Max Inlet 14” W.C.
  • Valve: Valve Temp Rating 175°
  • NG:(NG) 3”-5” W.C. 70,000 BTU’s
  • LP:(LP) 8”-12” W.C. 110,000 BTU’s

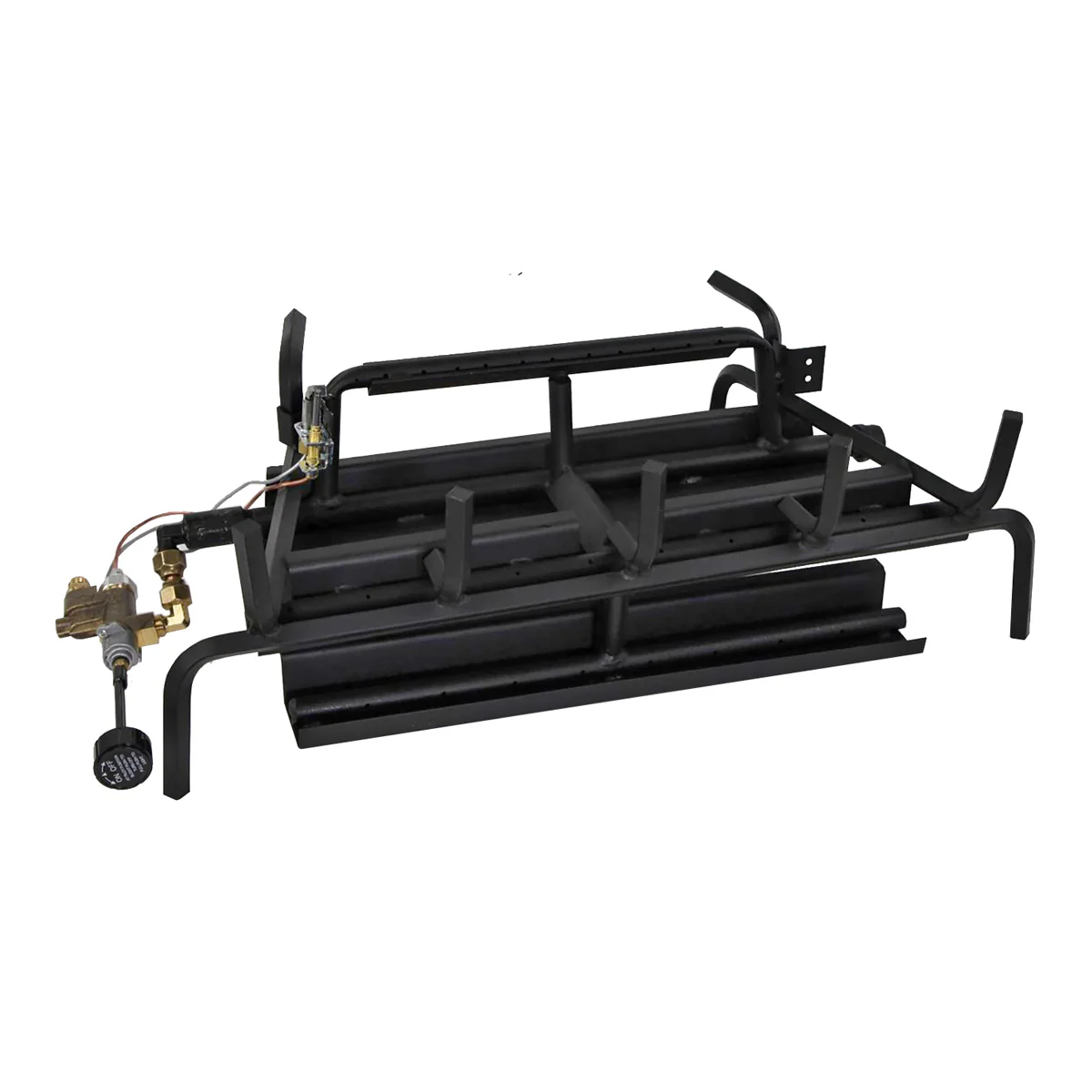

Assembled Safety Pilot Unit

  • Pilot: Standing Pilot System
  • Power: Millivolt
  • Design: Low Prole Side Mount
  • Operations: Manual On/O Operations ONLY
  • Max Inlet 14” W.C.
  • Valve: Valve Temp Rating 300°
  • NG: (NG) 90,000 BTU’s
  • LP: (LP) 90,000 BTU’s
