Jackery Smart Transfer Switch

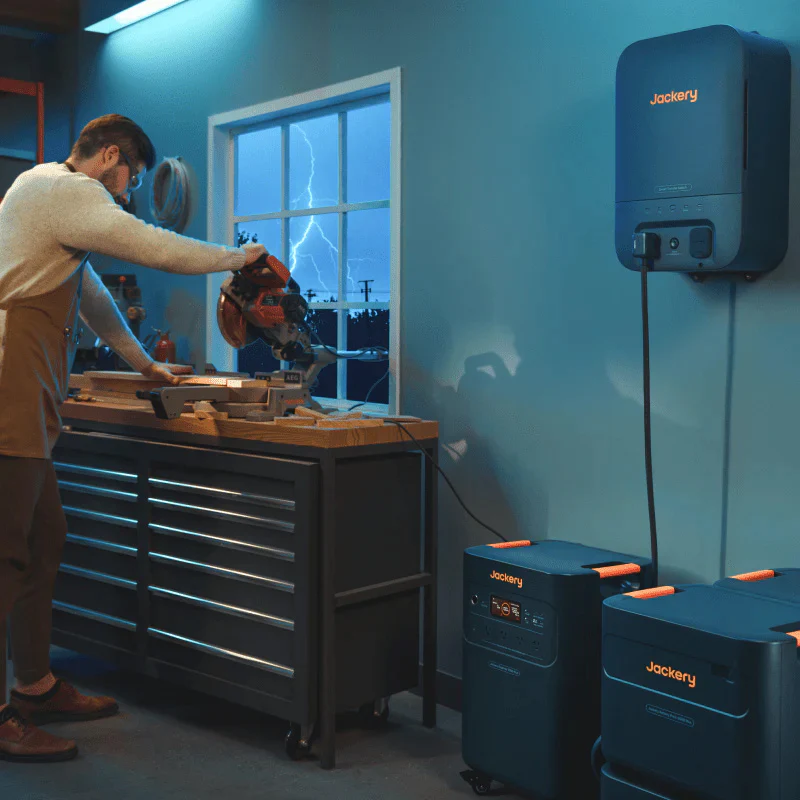

• Seamless Power Switch: Provides UPS backup within ≤20ms during power outages, ensuring uninterrupted operation.
• Eco-Friendly & Silent: Designed to integrate with solar panels and rooftop PV systems via Jackery Explorer 5000 Plus for sustainable energy use.
• Energy Savings: Charging-discharging mode helps reduce electricity costs.
• Compact & Maintenance-Free: Lightweight, easy to install, and requires no maintenance.

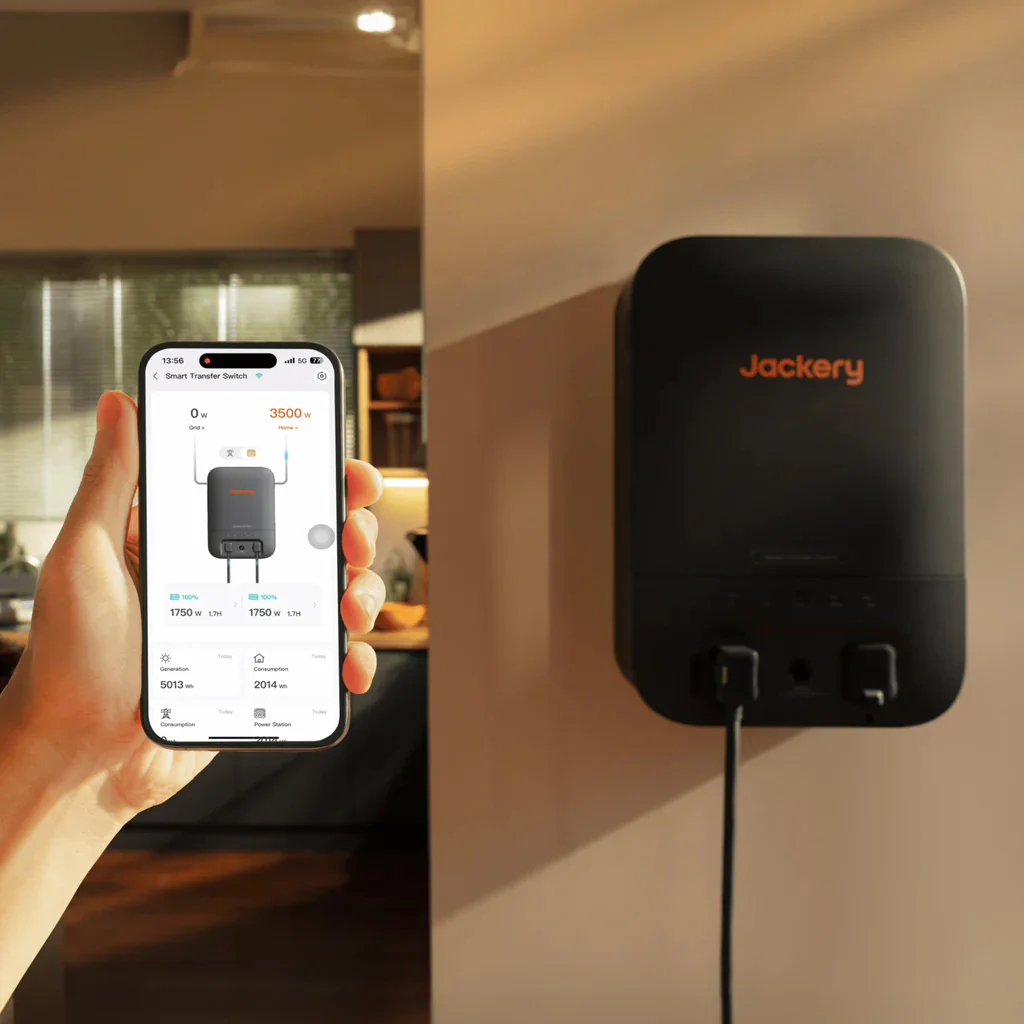

• Smart App Control: Enables real-time monitoring and energy management.
• Note: The Smart Transfer Switch is only compatible with the Jackery 5000 Plus Series.

What's In The Box? -

• Jackery Smart Transfer Switch
• Marking-off Template
• Power Input/Output Cable
• 2*Wall Bracket
• 4*M4 Phillips Flat Head ScrewUser Manual

Smart Transfer Switch Specs

• AC Voltage (Nominal): 120V/240V~ 60Hz
• Feed-In Type: Split Phase
• Maximum Input Current: 100A Grid / 60A Power Station
• Maximum Output Current: 60A Home Load / 33.4A Power Station
• Maximum Input Short Circuit Current: 10KA
• Overvoltage Category: IV
• UPS: ≤20ms
• Enclosure Type (Distribution Panel): NEMA Type 1
• Number of Load Branches: 12
• Main Circuit: 2 AWG
• Branch Circuit: 14 AWG 12 AWG 10 AWG
• Communication: Wi-Fi and Bluetooth
• Operating Temperature: -20°C~40°C (-4°F~104°F)
• Weight: About 25.57 lbs/11.6 kg
• Dimensions: 22 x 14.7 x 7.87 in/56 x 37.4 x 20 cm
