Bromic Smart-Heat™ Eclipse Electric Pendant Dimmer Control

BROMIC Smart-Heat™ Control Accessories

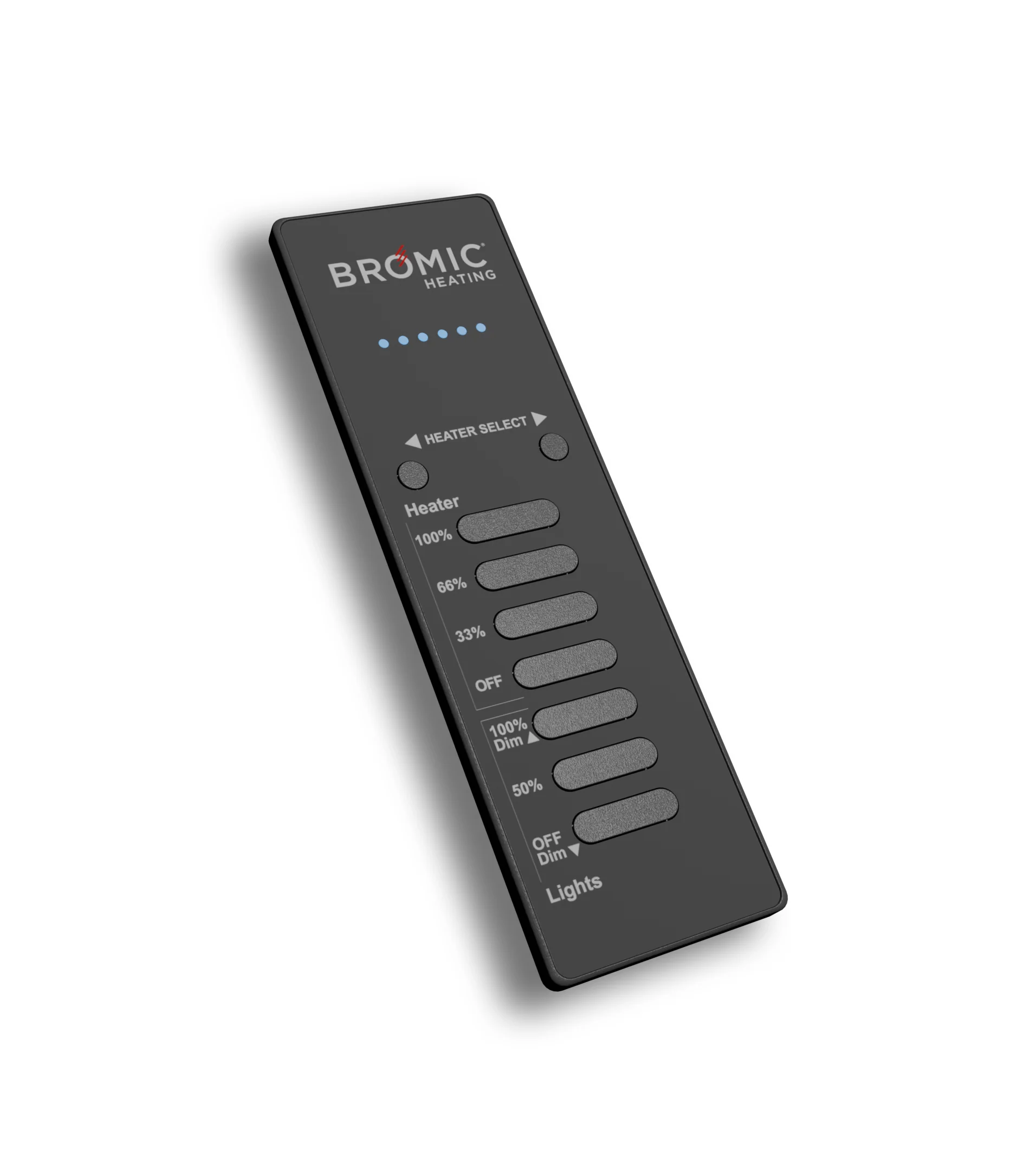

 Eclipse Electric Pendant Dimmer Control

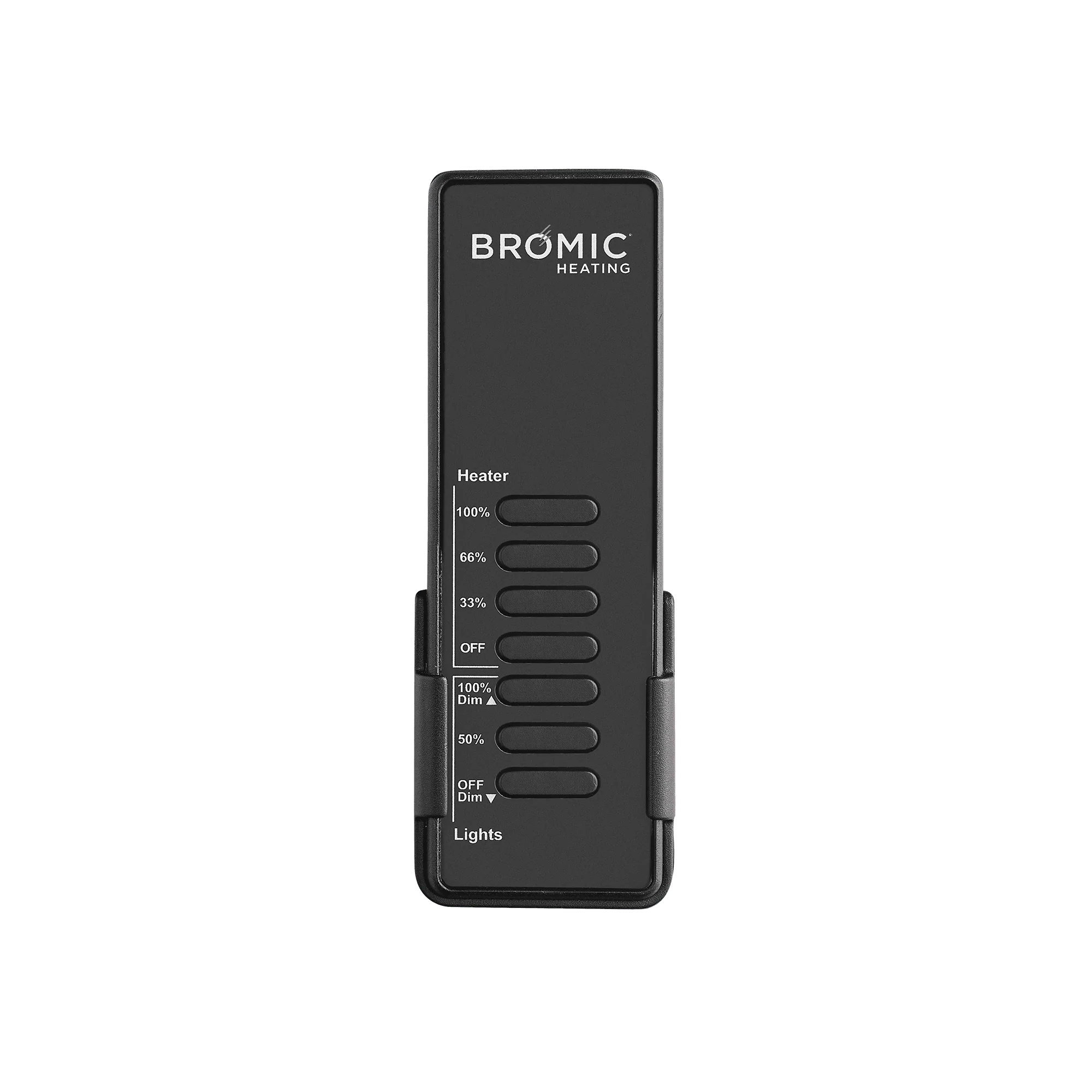

• Set up the perfect ambience with the Bromic Eclipse Dimmer Controller and Wireless Remote.

• Suitable for the Eclipse Pendant and Portable Series.
• Quickly dims lighting in 1% increments and heating output (0%, 33%, 66%, 100%) to create the perfect ambience.

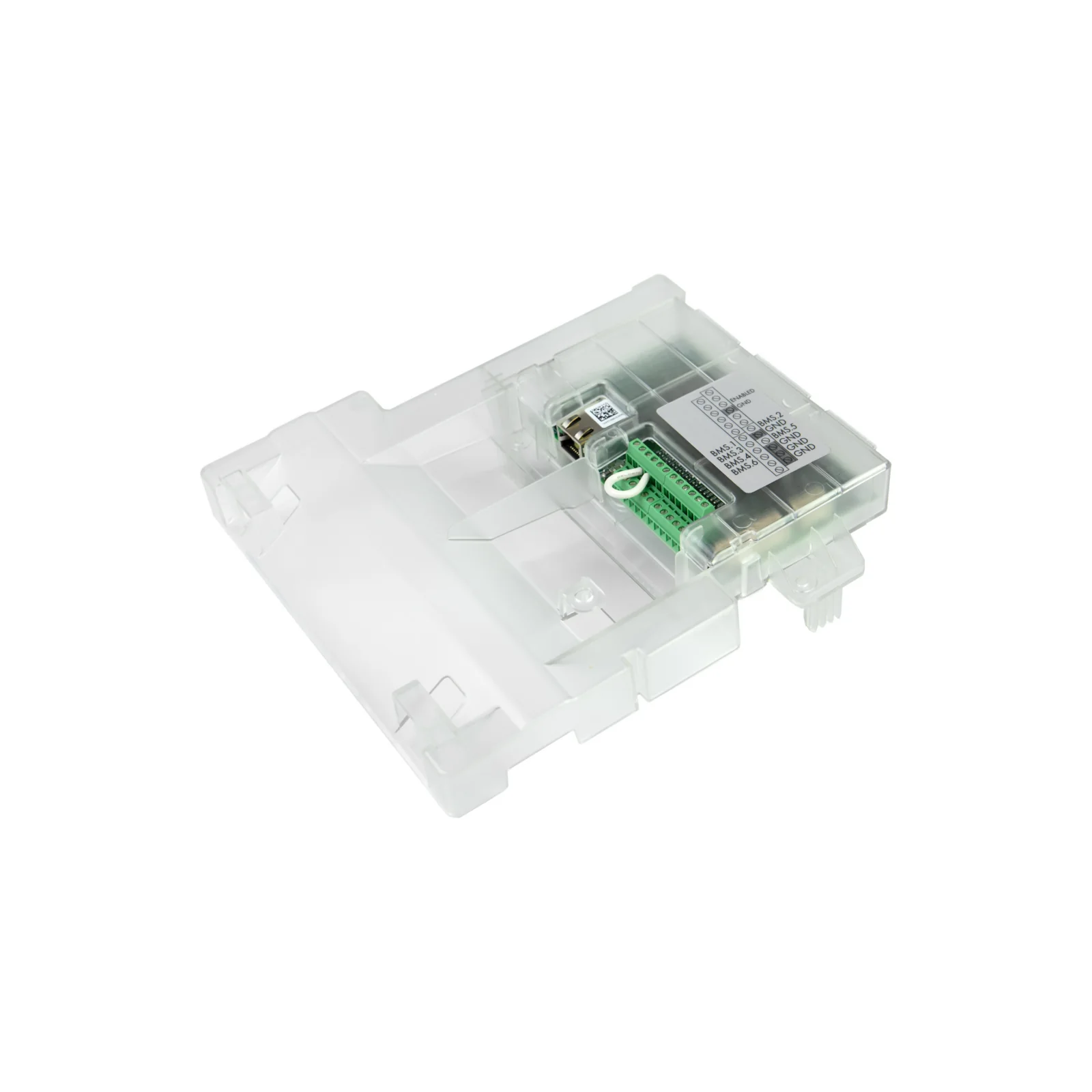

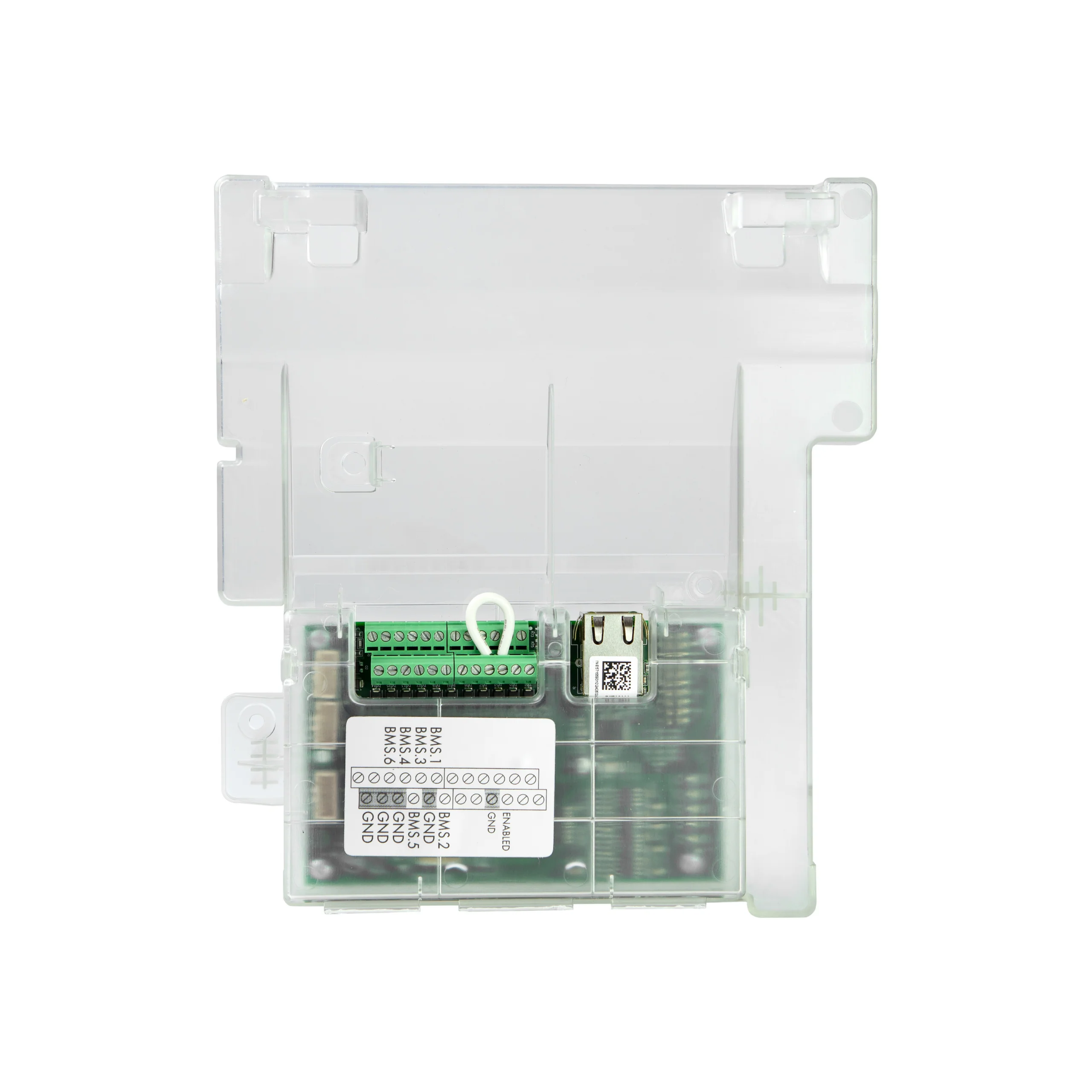

Expansion Board

• Available as an accessory for Bromic’s OnOff and Dimmer controls, 1 and 2 channel models, the Expansion Board option allows for seamless ethernet integration for a full-proof connection to your outdoor heaters.
• Complete with 0-10V connections for your Home Automation System or Business Management System.

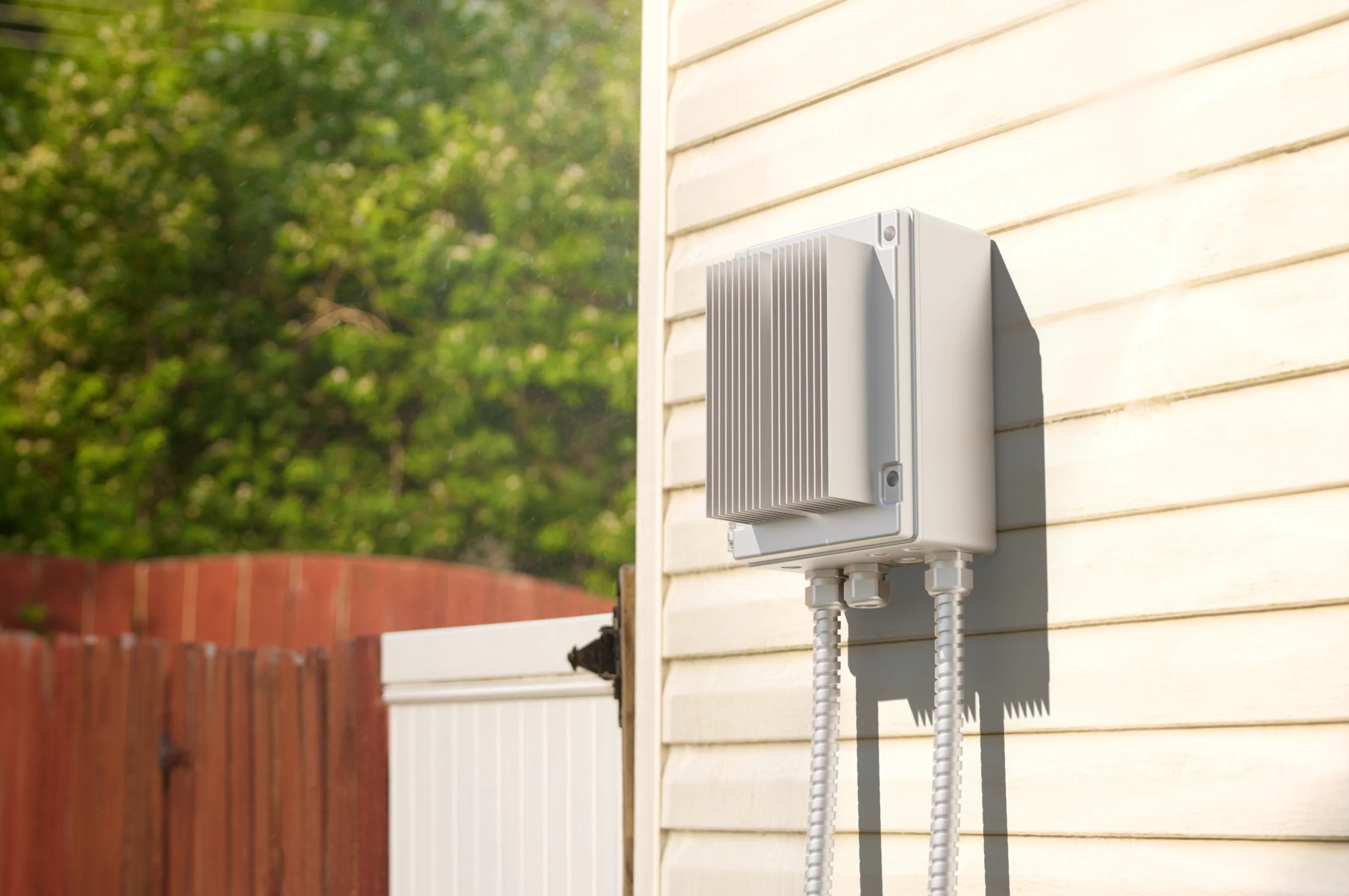

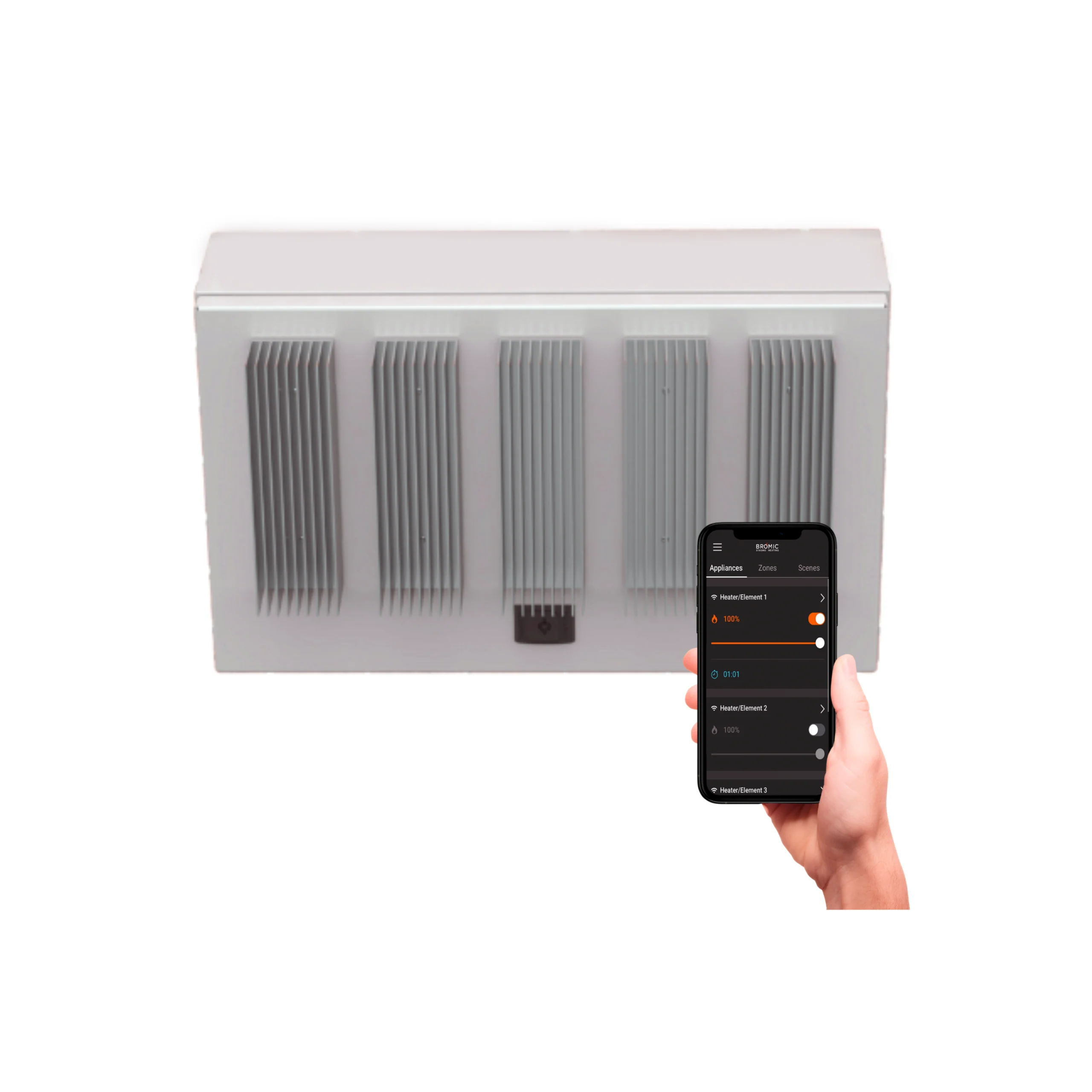

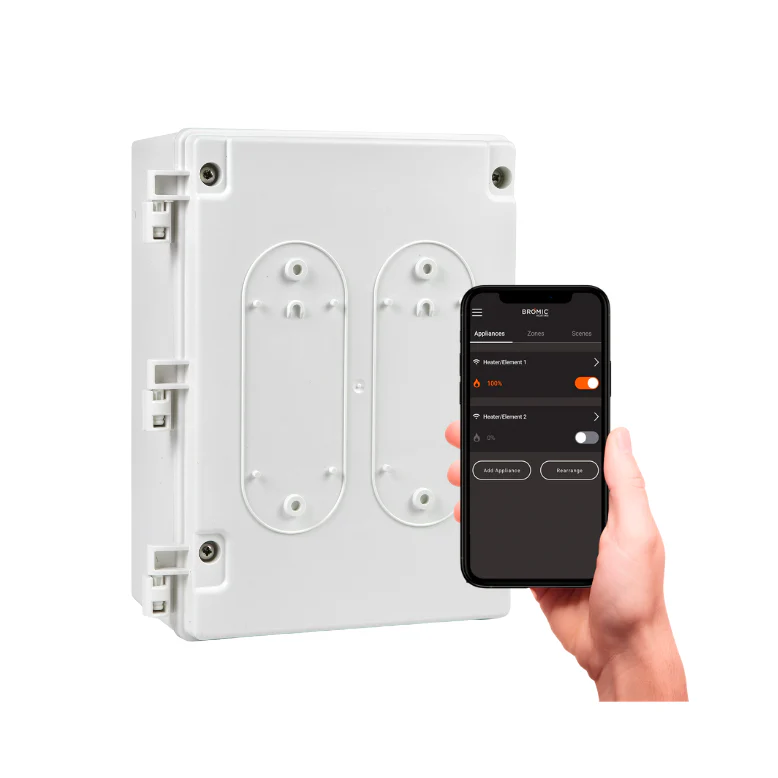

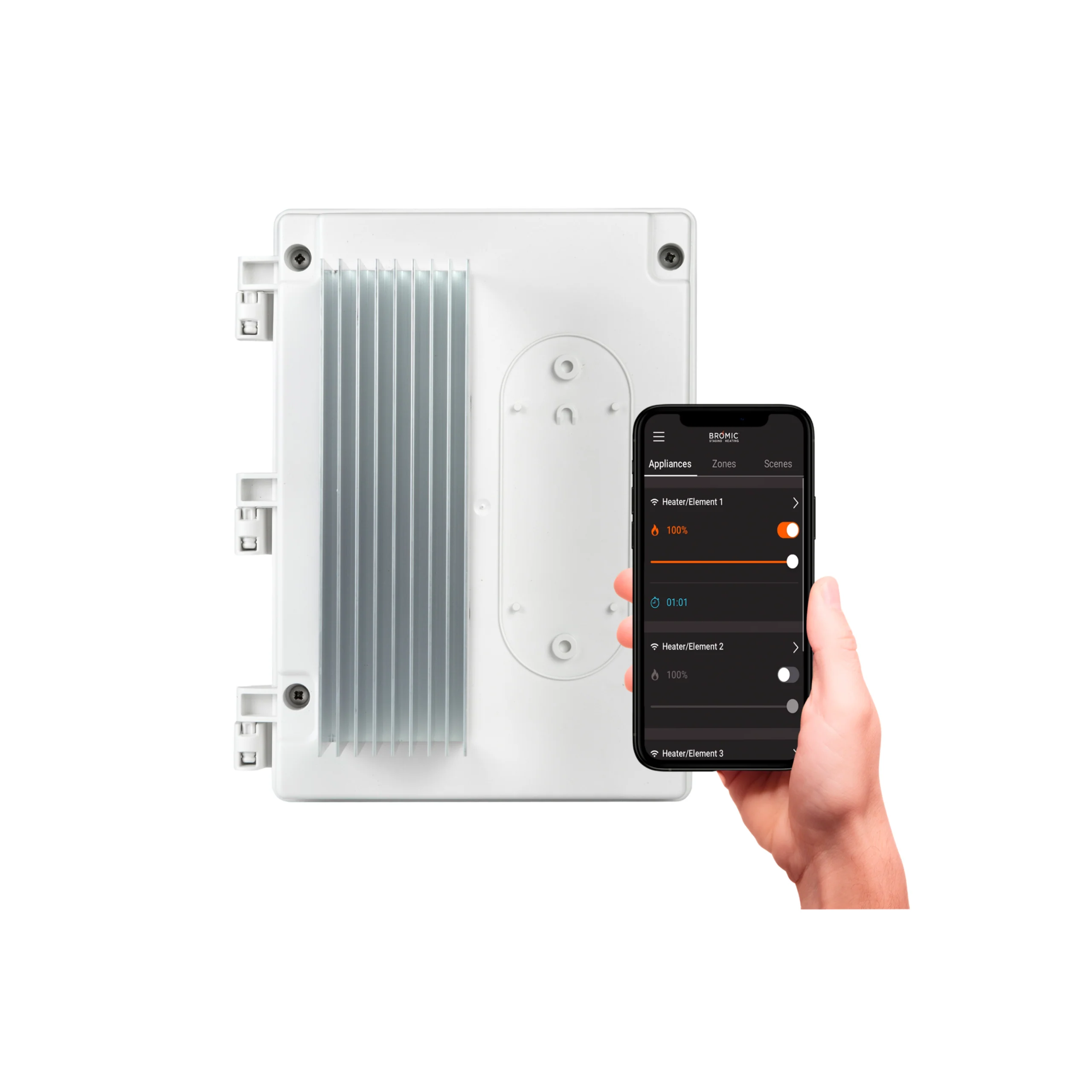

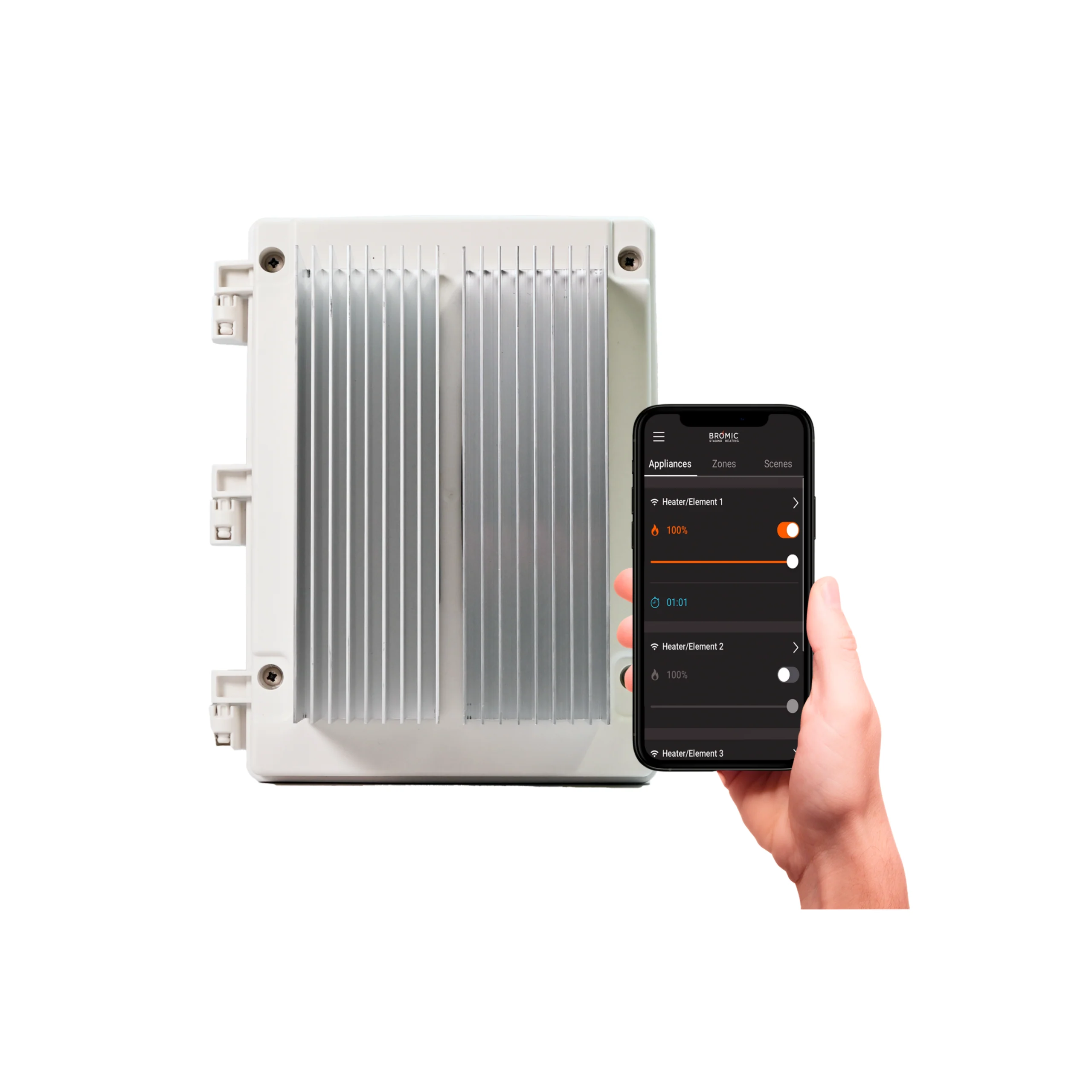

Affinity On/Off Specifications

MODEL	AFFINITY ON/OFF
PART NUMBER	BH3130051	BH3130052	BH3130053
NUMBER OF CHANNELS	1 CH	2 CH	5 CH
VOLTAGE-MAX CAPACITY PER CHANNEL	100-127V – 1kW 208-277V – 6kW	100-127V – 1kW 208-277V – 6kW	3N-220/380V – 6kW 3N-230/400V – 6kW 3N-240/415V – 6kW 3N-277/480V – 6kW 3- 120/208V – 6kW
OPERATING TEMPERATURE RANGE	-4°F to +86°F	-4°F to +86°F	-4°F to +86°F
NON-OPERATING TEMPERATURE RANGE	-22°F to +158°F	-22°F to +158°F	-22°F to +158°F
PROTECTION RATING	IP54	IP54	IP54
DIMENSIONS	11.4 x 8.0 x 4.4″	11.4 x 8.0 x 4.4″	19.7 x 13.4 x 8.0″
WEIGHT	3.1 lbs	3.6 lbs	24.3 lbs
WIFI CONNECTIVITY	2.4GHZ	2.4GHZ	2.4GHZ
WARRANTY	1 Year Parts
HEATER COMPATIBILITY	Platinum Electric & Tungsten Electric



Product Documents

• Affinity Smart Heat Instruction Manual
• Affinity Control Dimmer Spec Sheet
• Affinity Control On/Off Spec Sheet
• On/Off Dimmer Instruction Manual

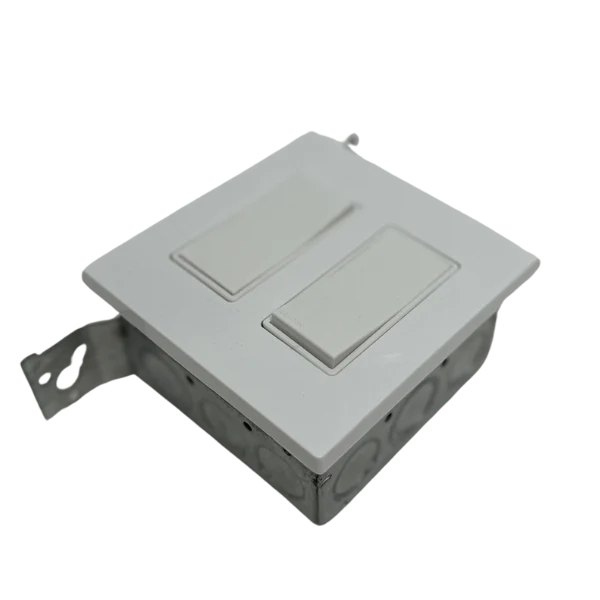

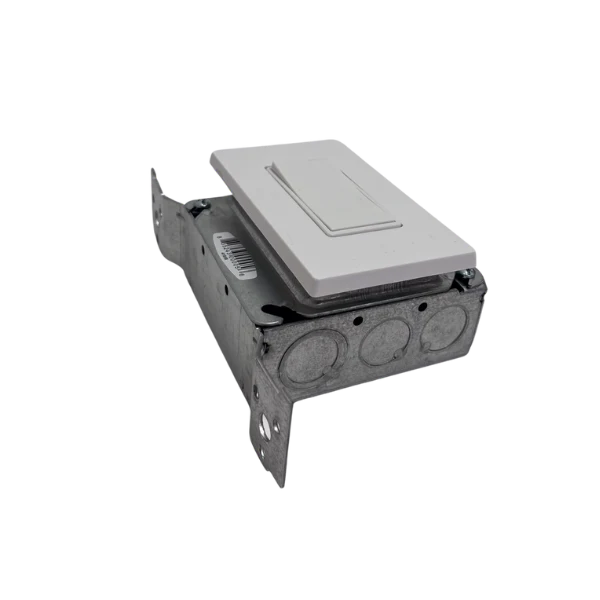

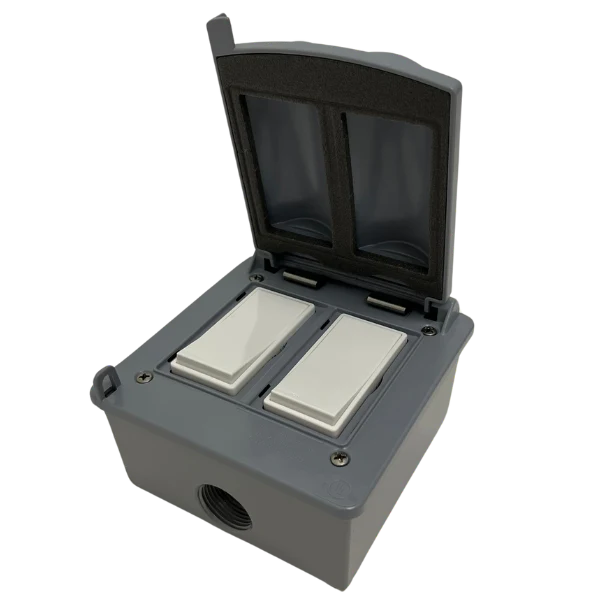

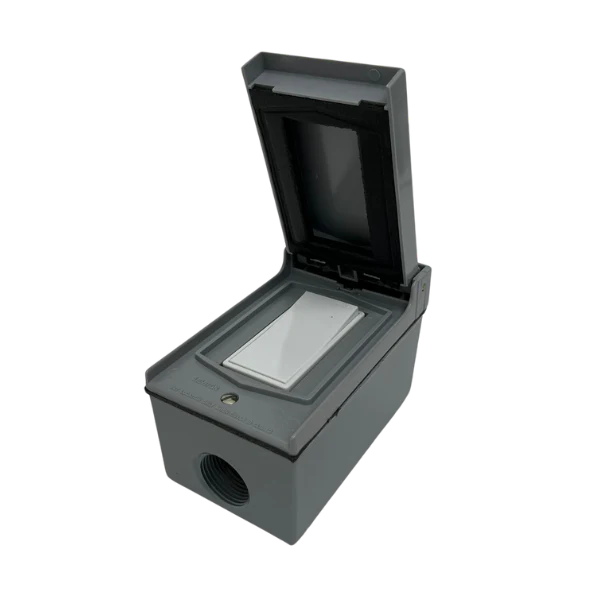

• Manual Wall Switch Wiring Diagram
• Smart-Heat Link Installation Manual
