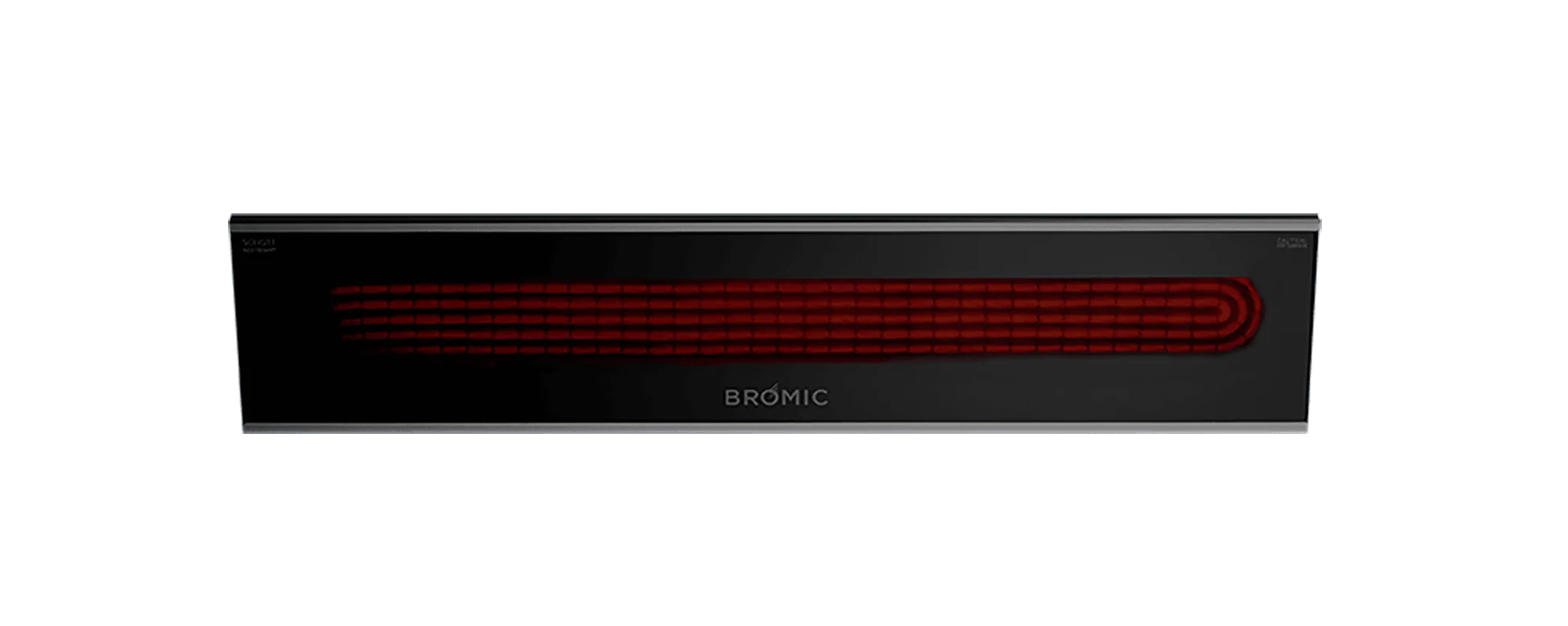

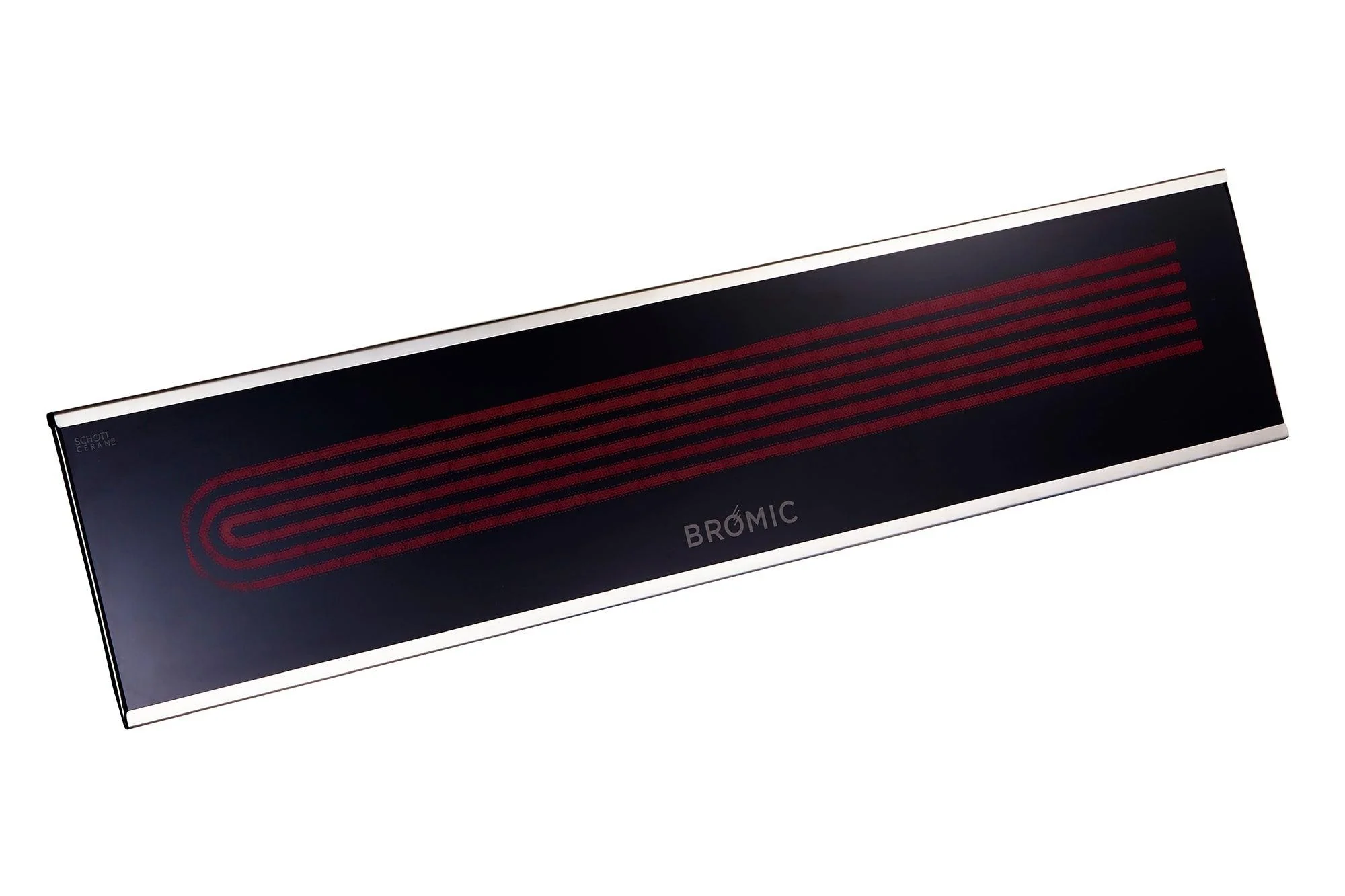

Platinum Smart-Heat™ Heater - Electric

The award-winning Platinum Smart-Heat™ Electric heater.

With its ultra-slim, high-quality 304 stainless steel chassis and Schott tinted ceramic-glass screens, the Platinum Smart-Heat™ Heater virtually disappears into its surroundings while delivering market-leading radiant heat output.

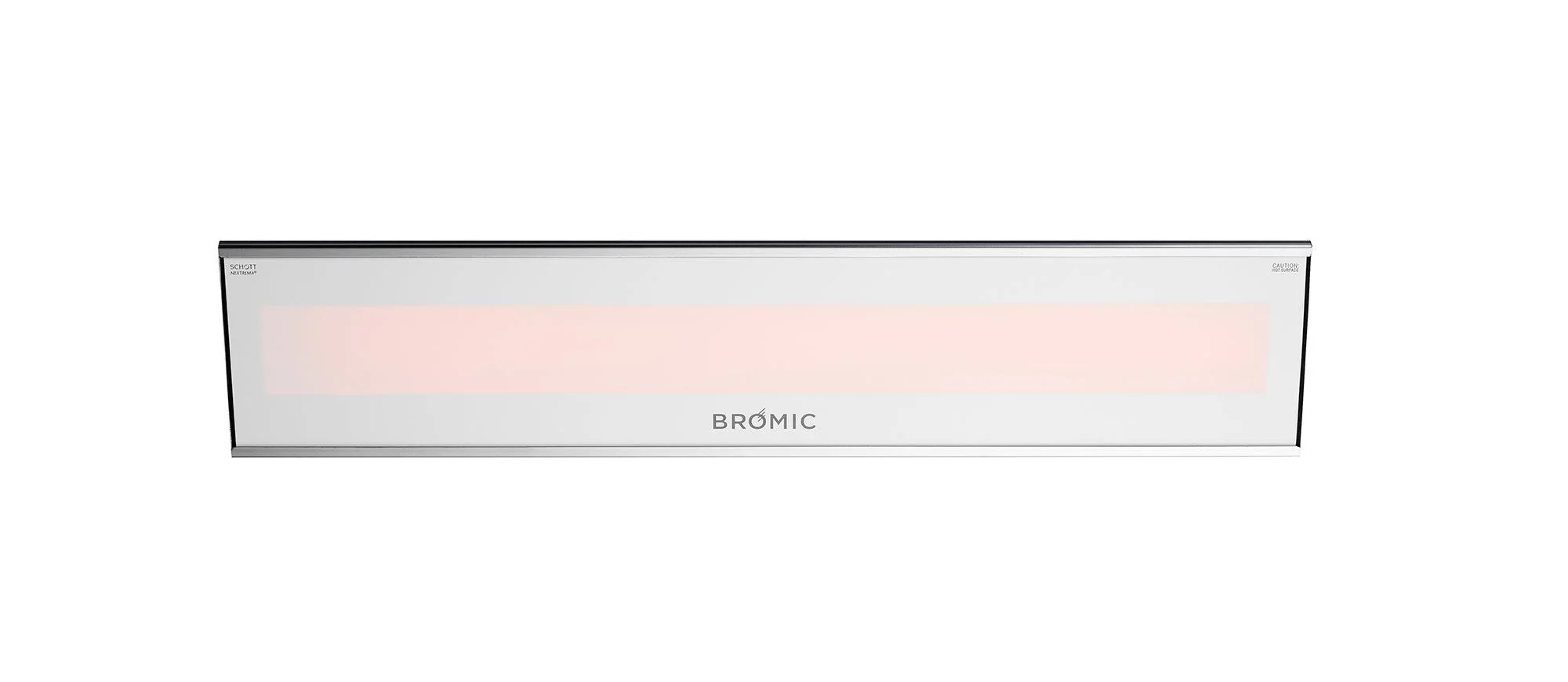

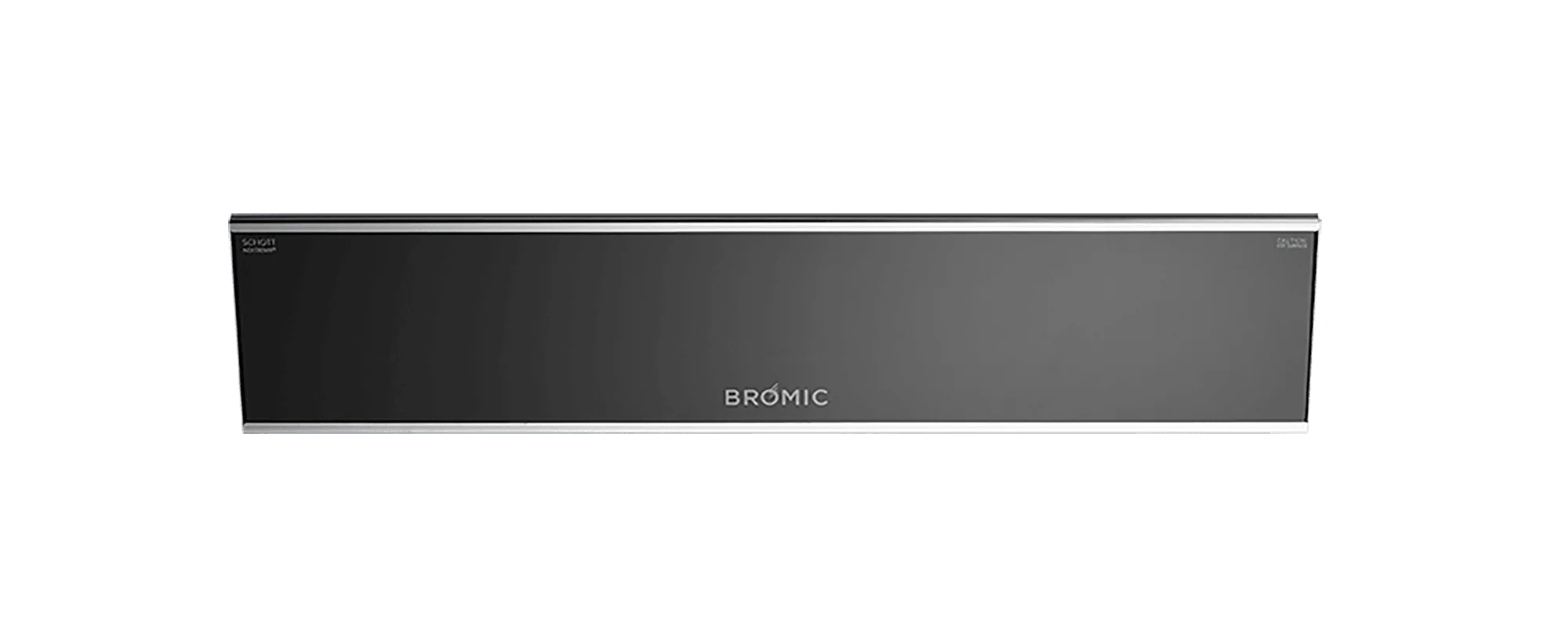

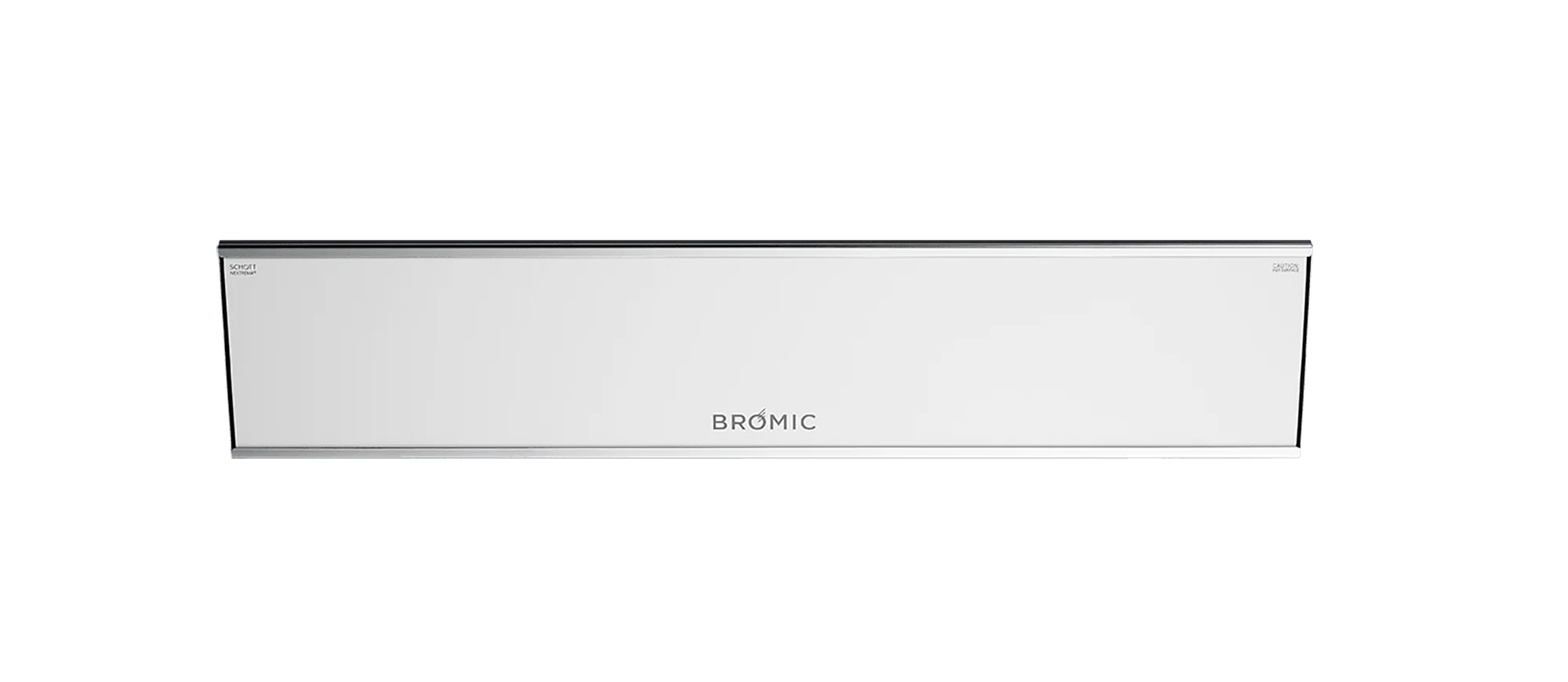

Available in both black and white and in 3 sizes: 2300W, 3400W, and 4500W.

This heater was specifically designed for low-clearance, semi-enclosed spaces and can be mounted with minimal clearance requirements.

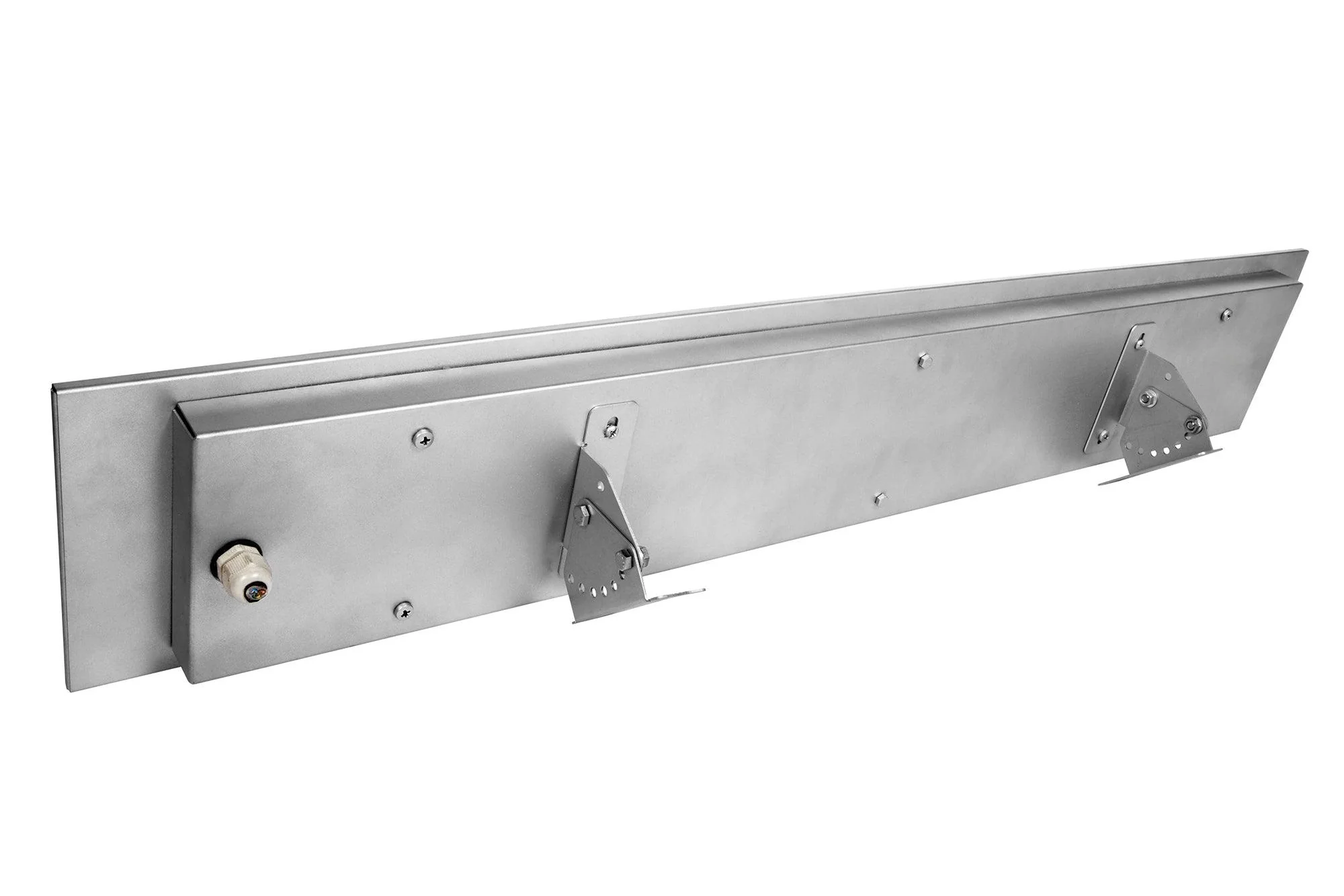

With versatile mounting options, this high performance heater is also compatible with smart-wireless technology.

**208V version recommended for land-based commercial applications only and not Lloyd’s Register Certified.

Specifications

MODEL	2300W SERIES	2300W SERIES	3400W SERIES	3400W SERIES	4500W SERIES	4500W SERIES
FUEL TYPE	ELECTRIC	ELECTRIC	ELECTRIC	ELECTRIC	ELECTRIC	ELECTRIC
COLOR	BLACK	WHITE	BLACK	WHITE	BLACK	WHITE
WEIGHT	17lbs	17lbs	22lbs	22lbs	33lbs	33lbs
MODEL #	BH0320003	BH0320007	BH0320005	BH0320008	BH3622000	BH3622001
HEAT AREA	65ft2	65ft2	108ft2	108ft2	143ft2	143ft2
RATED CURRENT *	220-240V/9.6A 208V/11.1A	220-240V/9.6A 208V/11.1A	220-240V/14.2A 208V/16.3A	220-240V/14.2A 208V/16.3A	220-240V/18.8A 208V/21.6A	220-240V/18.8A 208V/21.6A
MINIMUM FLOOR CLEARANCE	Wall 72” Ceiling 96”	Wall 72” Ceiling 96”	Wall 72” Ceiling 96”	Wall 72” Ceiling 96”	Wall 72” Ceiling 96”	Wall 72” Ceiling 96”
APPROVAL CERTIFICATION	Intertek ETL / cETL 5001799
WARRANTY	1 Year Parts



Marine Model Specifications

MODEL	2300W MARINE SERIES	2300W MARINE SERIES	3400W MARINE SERIES	3400W MARINE SERIES	4500W MARINE SERIES	4500W MARINE SERIES
FUEL TYPE	ELECTRIC	ELECTRIC	ELECTRIC	ELECTRIC	ELECTRIC	ELECTRIC
COLOR	BLACK	WHITE	BLACK	WHITE	BLACK	WHITE
WEIGHT	17lbs	17lbs	22lbs	22lbs	33lbs	33lbs
MODEL #	BH0320015	BH032001	BH0320016	BH0320018	BH3622002	BH3622003
HEAT AREA	65ft2	65ft2	108ft2	108ft2	143ft2	143ft2
RATED CURRENT *	220-220V/9.6A 208V/11.1A**	220-220V/9.6A 208V/11.1A**	220-240V/14.2A 208V/16.3A**	220-240V/14.2A 208V/16.3A**	220-240V/18.8A 208V/21.6A**	220-240V/18.8A 208V/21.6A**
MINIMUM FLOOR CLEARANCE	Wall 72” Ceiling 96”	Wall 72” Ceiling 96”	Wall 72” Ceiling 96”	Wall 72” Ceiling 96”	Wall 72” Ceiling 96”	Wall 72” Ceiling 96”
WARRANTY	5 Year Parts (5 year warranty is for land based applications only does not cover installations on marine vessels)



Available Accessories

• Platinum Smart Heat Controller Accessories
• Mounting Options and Recess Kits

Product Documents

• Platinum Smart-Heat™ Heater - Electric
• Platinum Smart-Heat™ Heater - Electric Manual
• Platinum Smart-Heat™ Heater - Spec Sheet
