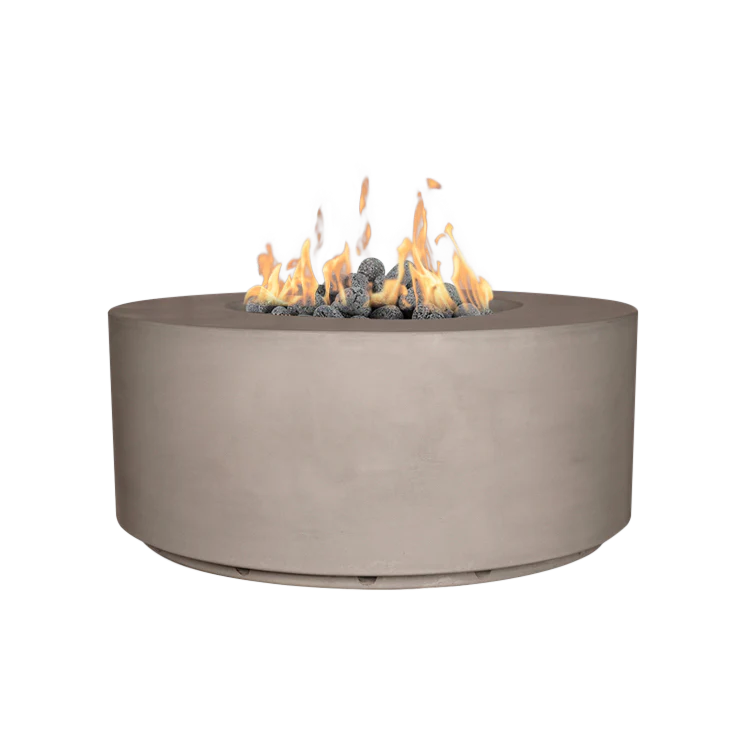

Manhattan 42" Cylinder Fire Pit - 30VDC

Manhattan 42" Cylinder Fire Pit

Outer Diameter: 42"
Height: 18"
Tabletop Surface: 9.5"
Weight: 250 lbs.
Diameter Spiral Burner: 6"
Base Diameter: 40"
BTU: 43k

Manhattan Fire Pit

• 43K BTU's (316 Stainless Steel) / 1/2 Gas Inlet with NG Orifice or LP Air Mixer

• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner / Natural Gas or Liquid Propane
• Liquid Propane: Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply
• 18" Whisper Free Flex Gas Line (1/2").
• 23" Round Aluminum Flat Burner Pan (bowl packing & crating included).
• Holds 37 lbs. of Fire Glass, 2 bags of Lava Rock, or 1 bag of Rolled Lava Stone.


Documents

AWEIS Installation Instructions

Automated Fire 101 FBD

AWEIS Troubleshooting Guide

BPAWEIS Installation Instructions

Preinstallation Checklist

24V / 30V Battery Instructions 2024

AWEIS Sequence of Operation

Field Serviceable AWEIS Replacement Parts Install Instructions

NG Orifice Placement on Field Serviceable Box
