Legacy 48" Square Fire Pit - 30VDC

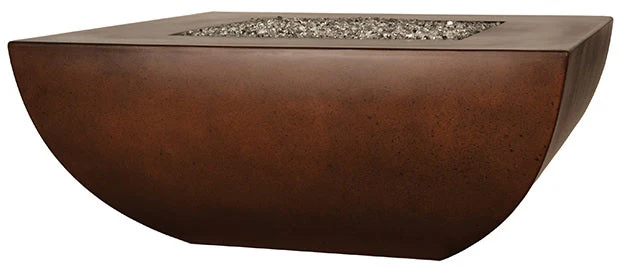

Legacy 48" Square Fire Pit

Outer Dimension: 48"
Tabletop Surface: 10.5"
Height: 21"
Base Dimension: 24"
Weight: 420 lbs.
Burner: Diameter Spiral Burner 12"
BTU: 85k"

Legacy Square Fire Pit

• 85K BTU's (316 Stainless Steel) / 1/2 Gas Inlet with NG Orifice or LP Air Mixer

• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner / Natural Gas or Liquid Propane
• Liquid Propane: Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply
• 18" Whisper Free Flex Gas Line (1/2").
• 6.25" Square Aluminum Flat Burner Pan (Bowl Packing & Crating Included in Kit Price)
• Holds 62lbs of Fire Glass / 4 Bags of Lava Rock / 1 Bag of Rolled Lava Stone
