Jumbo Indoor Vented Front View Burners

Features

• Sizing: Jumbo – 36” – 120” (21” Depth)
• Style: Even distribution rear burner w/dual action middle burner & dedicated ember glow burner
• Standards: ANSI Certified with Control Systems
• Usage: Indoor
• Materials: Stainless Steel Chassis
• Warranty: Lifetime Warranty – When Installed Indoors
• Piping: 3/4” Piping & 1” Bar Stock
• Fittings: Gas Inlet Left or Right
• Convertible to LP: NG Burner convertible to LP
• Media: Includes Lava Rock, Embers, & Connection Fittings
• Pilot: Concealed Pilot Mounting Brackets
• Design: Fully Welded System with Sandless Design


Ceramic coated chassis w/metal bar stock and burner tubes all welded together. Fits Isokern Magnum Series 18" Deep Burner.

All burners include lava rock, fittings, flex line, embers, and damper clamp.

Not sure which size to use? Be sure to check the following on your empty Fireplace / Firebox:

• Front Opening Width
• Rear Width
• Depth
• Opening Height
• Is this Fireplace Vented or Ventless?
• Will you be using Natural Gas or Propane? (Propane Fittings Sold Separately)

Documents

• Jumbo / Jumbo Slimline Installation Manual
• LP Conversion Kit Chart

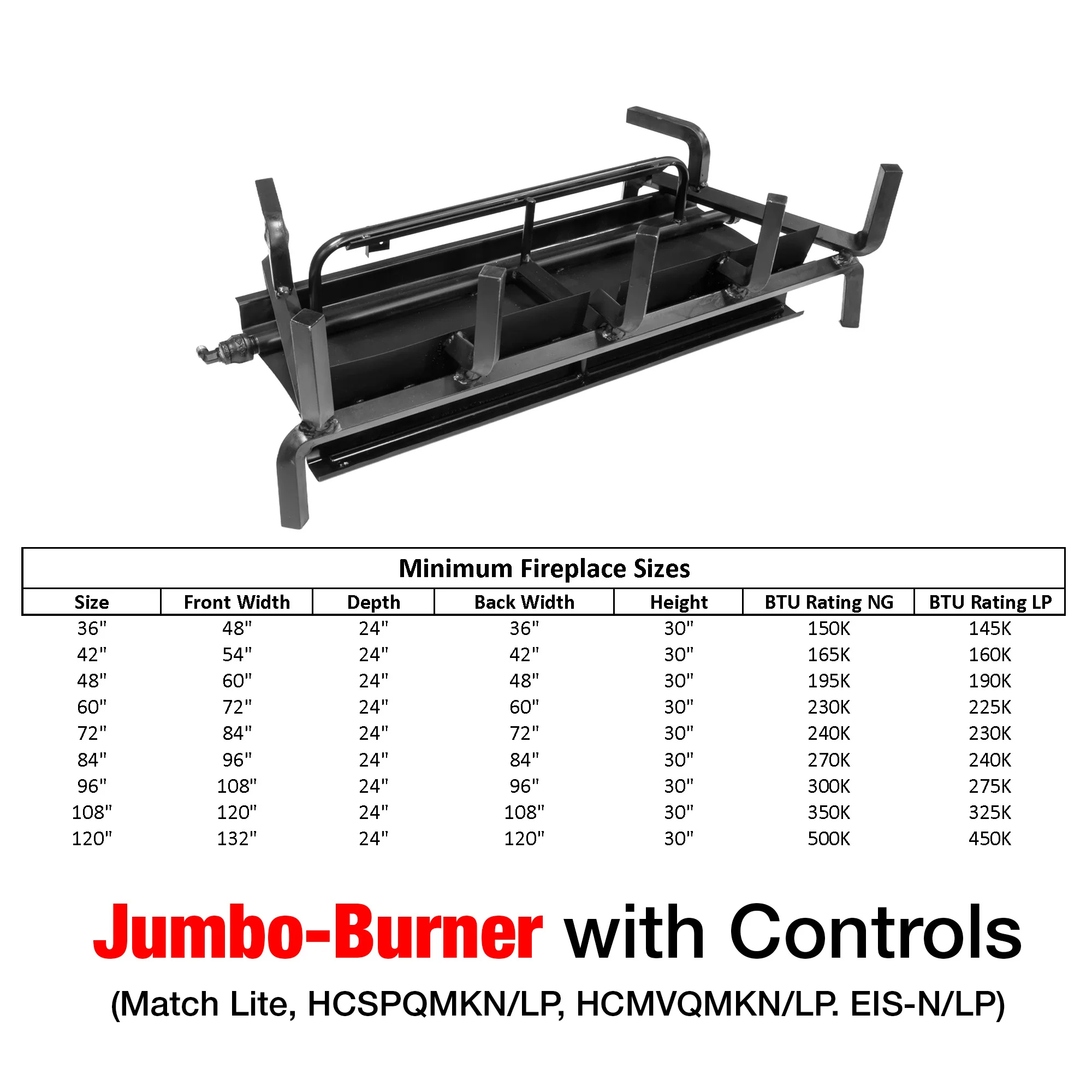

• Minimum Fireplace Dimensions

Specification Sheets

• Jumber Burner Spec Sheets
