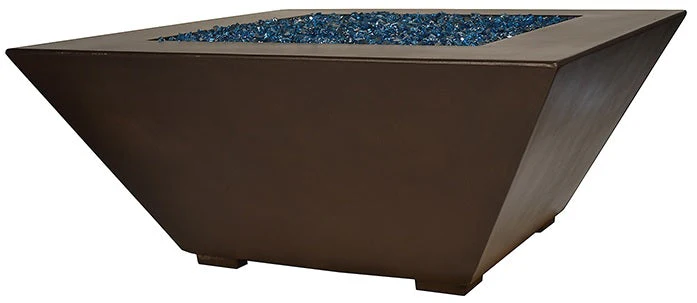

Geo Square 42" Fire Bowl - 30VDC

Geo Square 42" Fire Bowl

Outer Dimension: 42"
Inner Dimension: 37"
Height: 17"
Base Dimension: 24"
Weight: 230 lbs.
Burner: Diameter Spiral Burner 24"
BTU: 170k

Geo Square Fire Bowl

• 170K BTU's (316 Stainless Steel) / 1/2 Gas Inlet with NG Orifice or LP Air Mixer

• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner / Natural Gas or Liquid Propane
• Liquid Propane: Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply
• 24" Whisper Free Flex Gas Line 1/2"
• 36" Square Aluminum Flat Burner Pan (Bowl Packing & Crating Included in Kit Price)
• Holds 117lbs of Fire Glass / 6 Bags of Lava Rock / 2 Bags of Rolled Lava Stone
