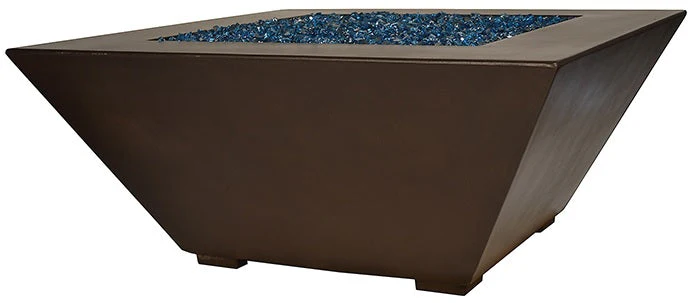

Geo Square 36" Fire Bowl - 30VDC

Geo Square 36" Fire Bowl

Outer Dimension: 36"
Inner Dimension: 30"
Height: 12"
Base Dimension: 20.5"
Weight: 165 lbs.
Burner: Diameter Spiral Burner 18"
BTU: 162k

Geo Square Fire Bowl

• 162K BTU's (316 Stainless Steel) / 1/2 Gas Inlet with NG Orifice or LP Air Mixer

• 30VDC AWEIS Standard Capacity with a Field Serviceable Pilot Burner / Natural Gas or Liquid Propane
• Liquid Propane: Includes 120V Safety Backup Valve
• Includes 30VDC Power Supply
• 18" Whisper Free Flex Gas Line 1/2"
• 29.25" Square Aluminum Flat Burner Pan (Bowl Packing & Crating Included in Kit Price)
• Holds 77lbs of Fire Glass / 4 Bags of Lava Rock / 2 Bags of Rolled Lava Stone
