Garmin ECHOMAP UHD2 53cv Ice Fishing Bundle

Garmin ECHOMAP UHD2 53cv Ice Fishing Bundle

Get ready to take your ice fishing game to the next level with the Garmin ECHOMAP UHD2 53cv Ice Fishing Bundle!

This advanced fish finder and chartplotter combo is equipped with cutting-edge technology to help you locate and catch more fish than ever before. With a crystal-clear 5-inch display and preloaded LakeVü g3 maps, you'll have all the tools you need to navigate the ice with ease. Plus, the included ice fishing transducer allows you to see fish and structures beneath the ice in real-time.

Don't let the cold weather slow you down – gear up with the Garmin ECHOMAP UHD2 53cv Ice Fishing Bundle and make the most of your time on the ice!

Highlights

•    Bright, sunlight-readable 5” display with keyed interface
•    Crystal-clear images e with the Dual Beam IF ice fishing transducer
•    Remarkable target separation
•    Operating frequency of 77/200 kHz
•    Beamwidth of 15 or 45 degrees
•    Features a silicone-coated cable
•    Kit includes a 4-pin transducer adapter cable, foam float, and grommet
•    Built-in flasher
•    Preloaded LakeVü g3 maps
•    Custom combination pages combine sonar, flasher, and map
•    Supports ClearVü scanning sonar featuring vivid color palettes
•    Built-in Wi-Fi connectivity with compatible Garmin chartplotters to wirelessly share sonar, waypoints, and routes with another ECHOMAP UHD2 unit (sold separately)

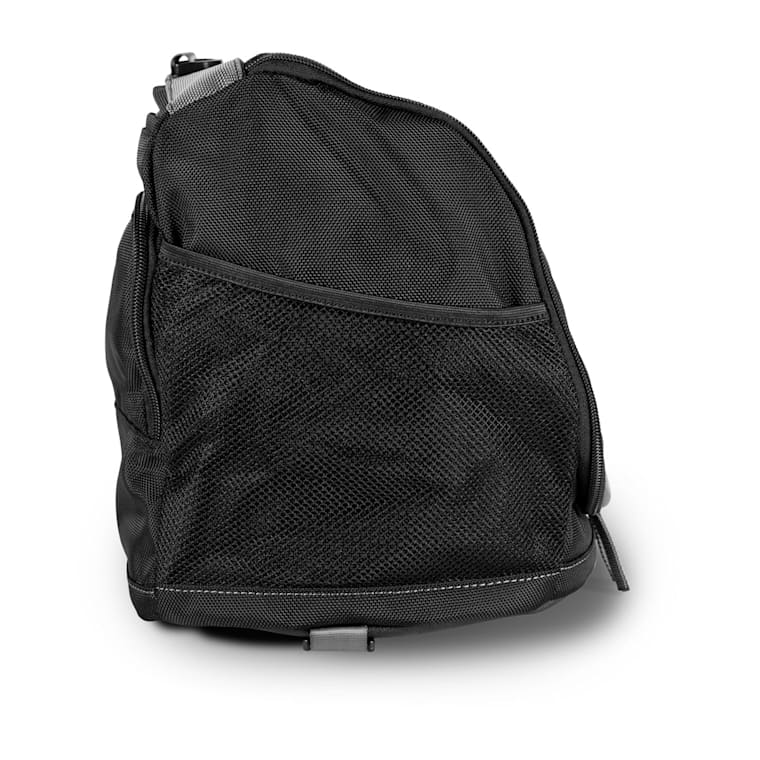

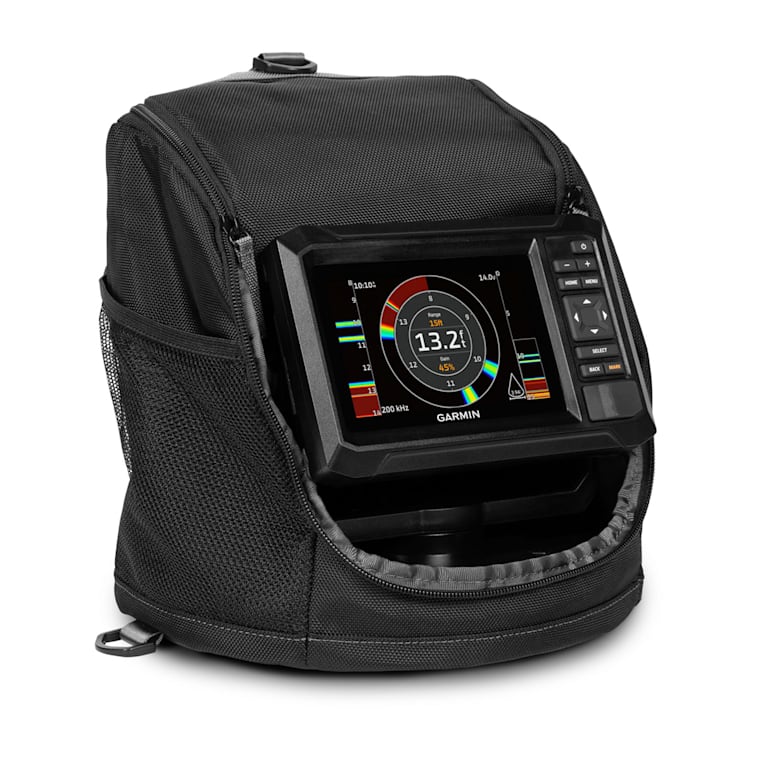

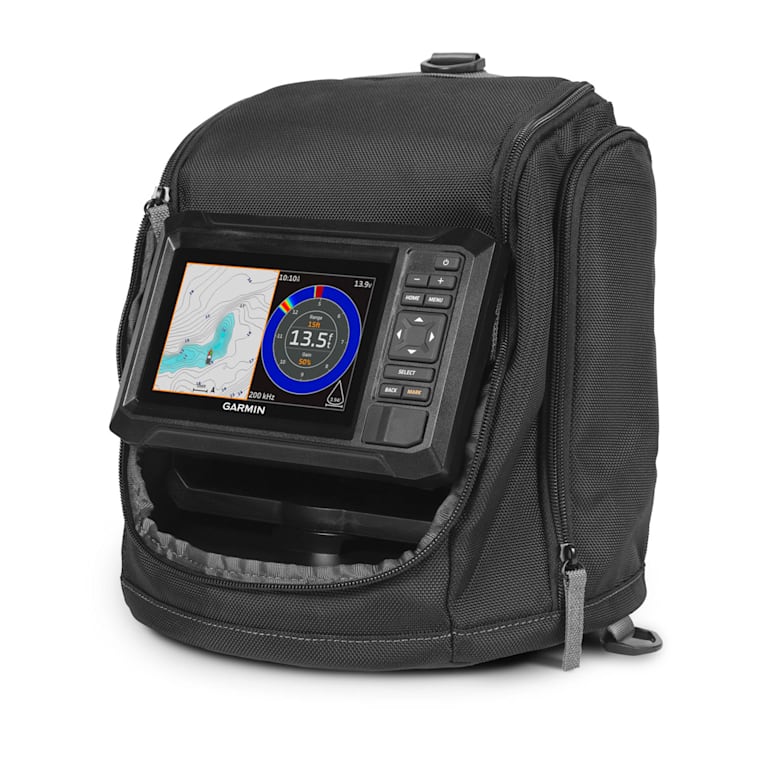

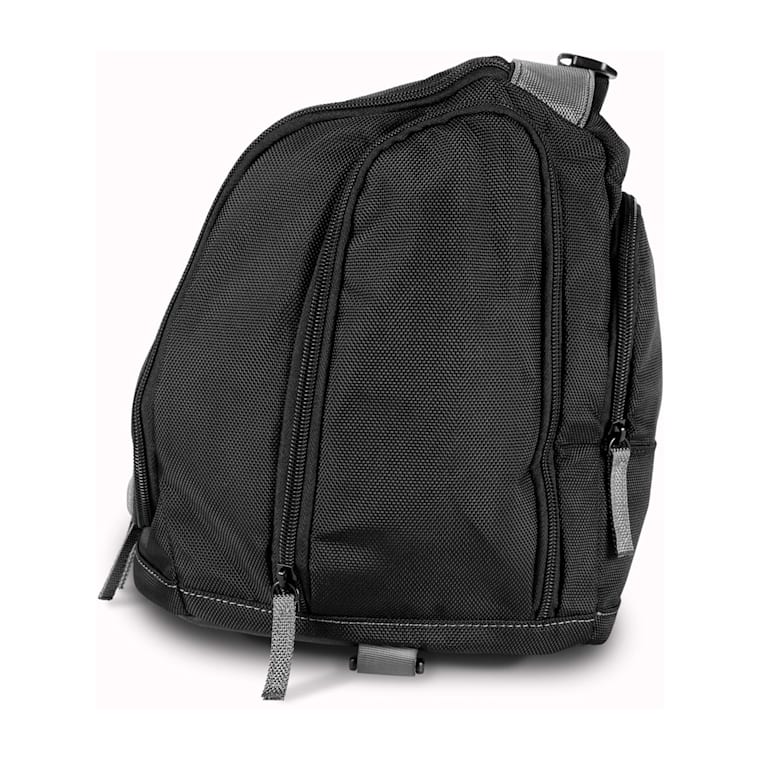

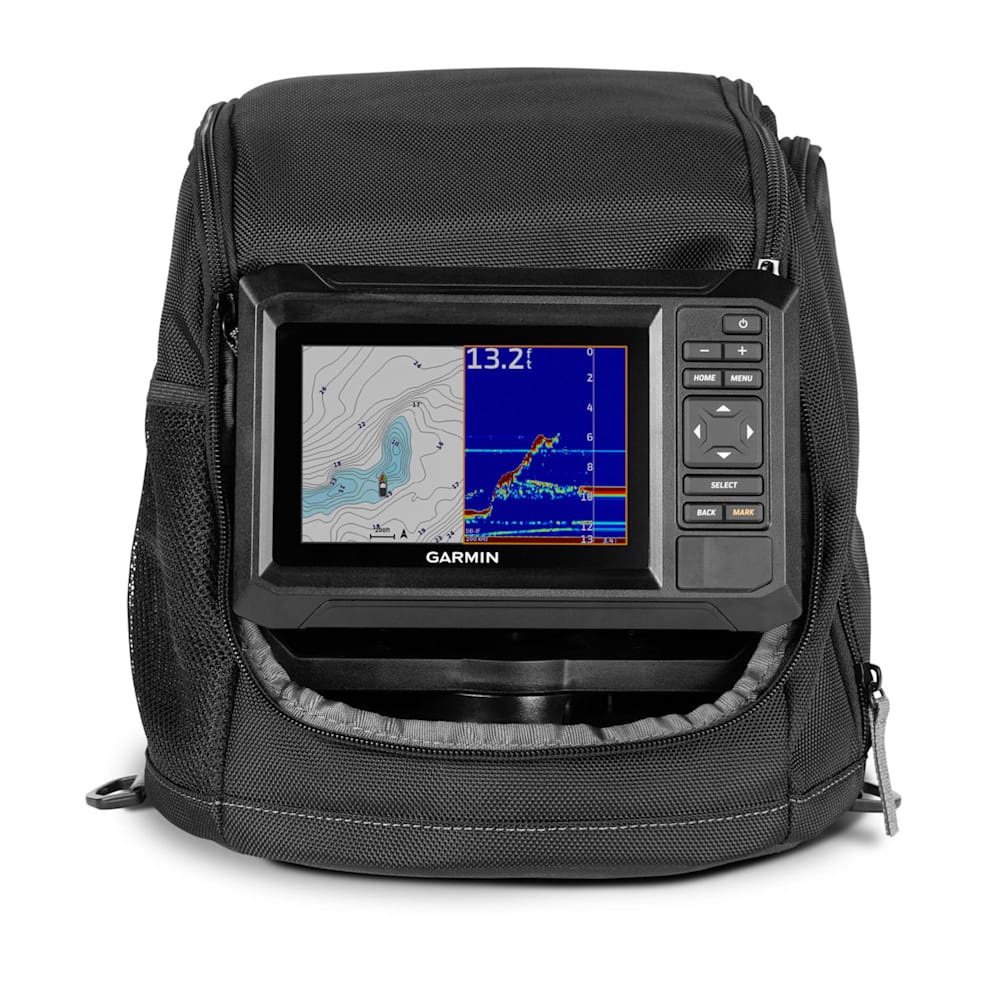

•    Rugged, glove-friendly portable carrying case holds ECHOMAP UHD2 53cv, battery, charger, power cable, grommet, and foam float

SPECIFICATIONS:

General
Dimension: 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)
Weight: 9.5 lbs (4.3 kg)
Water rating: IPX7
Display Type: WVGA, IPS
Display Size: 4.3" x 2.6" (10.9 x 6.6 cm)
Display resolution: 800 x 480 pixels
Input: Keyed

Maps & Memory
Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
Waypoints: 5000
Track points: 50,000
Tracks: 50 saved tracks
Navigation Routes: 100

Ice Fishing Details
Battery type, size: SLA, 7Ah
Bag size: S
Included transducer: DB-IF
Transducer holding feature: Foam float

Sensors
GPS
GLONASS
Galileo
Has built-in receiver
Receiver: 5 Hz
NMEA 2000 Compatible
Supports WAAS

Built-in Maps
Built-in Auto Guidance+: yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal: yes (see Additional)
Garmin Navionics+ (Inland): yes (see Additional)

Optional Map Support
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours

Chartplotter Features
ActiveCaptain® compatible: yes

Electrical Features
Power Input: 9 to 18 Vdc

Sonar Features
Displays sonar: Yes
Power output: 500 W
Traditional sonar (dual frequency/beam): built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü: built-in 260/455/800/1000/1200 kHz

Connections
4-pin transducer ports: 1
Garmin Wi-Fi network (local connection): Yes

Additional
Garmin Navionics+ Inland & Coastal:  55cv Canada
Garmin Navionics + (Inland): 53cv U.S. Lakes

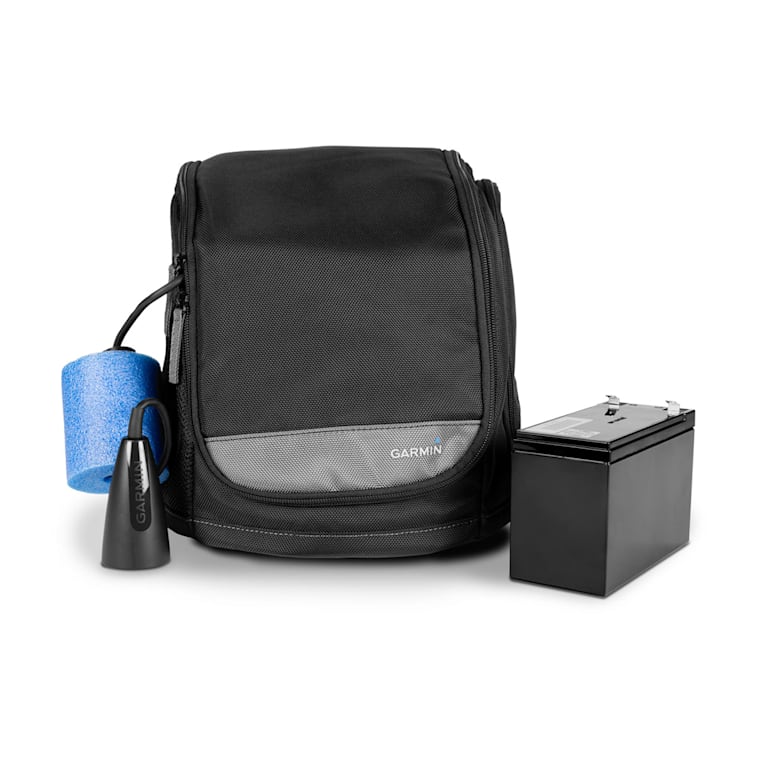

WHAT’S IN THE BOX:

1 x ECHOMAP™ UHD2 53cv Chartplotter

1 x Dual Beam-IF Transducer

1 x Tilt/Swivel Mount

1 x Portable Bag

1 x Base/Handle

1 x Foam Float

1 x Power Cable

1 x Rechargeable Battery

1 x Battery Charger

1 x Documentation
