11500 BTU 208/230V Mini Split Air Conditioner and Heater Pump System

Multifunctional design includes cooling heating drying and fan

• Powerful cooling and heating for rooms up to 750 sq.ft
• Effortless control via your smartphone/voice/remote control
• 7 fan speeds: auto/low/low-mid/mid/mid-high/high/turbo
• Inverter technology ensures energy-efficient operation
• Removable and washable filter for hassle-free maintenance
• Humanized design such as child lock and self-cleaning
• R32 refrigerant boasts a lower environmental impact
• Chassis heating maintains long-lasting performance
• Set schedules easily with the 24H on/off timer
• 4D auto swing to prevent direct blowing
• Quiet sleep mode ensures a restful night
• Complies with ETL and AHRI

Specifications

Color	White
Material	Metal, Aluminum, Copper, AS

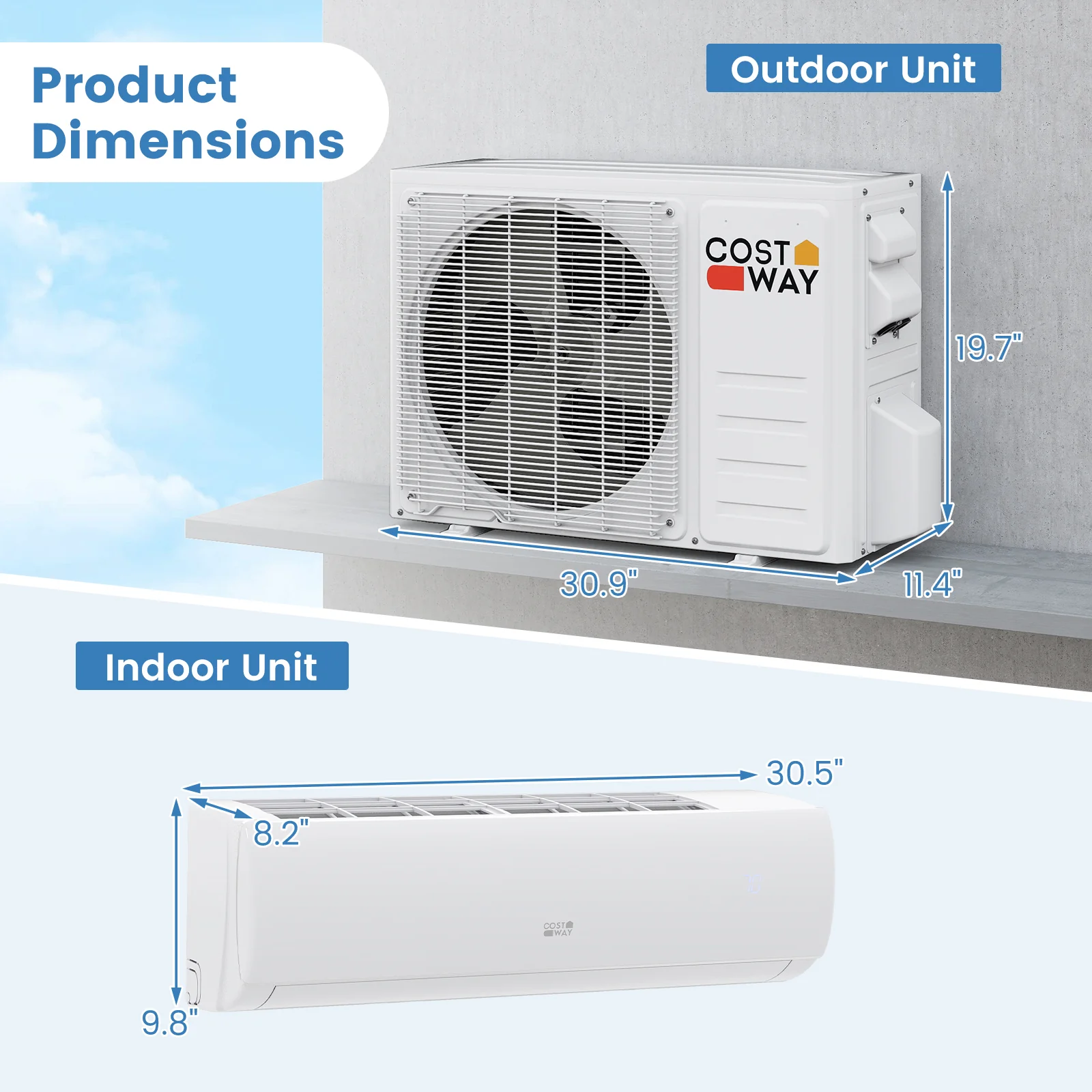

Indoor Unit Dimensions	30.5" x 9.8" x 8.2"
Outdoor Unit Dimensions	30.9" x 11.4" x 19.7"
Diameter of Air Pipe	3
Diameter of Liquid Pipe	1
Diameter of Drain Pipe	0.67"
Max Remote Control Distance	39 ft
Min. Circuit Ampacity	11A
Voltage	208/230V~/60Hz
Cooling Capacity	11500 BTU
Heating Capacity	11500 BTU
Cooling Power	1170W
Heating Power	1100W
Coverage Area	750 Sq.Ft/70㎡
Air Flow Volume	294 CFM
Dehumidifying Capacity	66 Pints/Day (31.2 L/Day)
Temperature Setting Range	60℉~88℉/ 16℃~31℃
Refrigerant	R32
SEER2	17
HSPF2	8.3
Indoor Noise Level	33 dB
Outdoor Noise Level	55 dB
Net Weight of Indoor Unit	20 lbs
Net Weight of Outdoor Unit	53.5 lbs
Box Qty	2(May vary by batch)
Package Includes	1 x Indoor Unit
	1 x Outdoor Unit
	1 x 13 ft Copper Connection Pipe - Air Pipe
	1 x 13 ft Copper Connection Pipe - Liquid Pipe
	1 x 5.8 m/19 ft Communication Wire
	1 x 2 m/6.5 ft Drain Hose
	1 x Remote Control
	1 x Wall Bracket for Remote Control
	1 x Wall Sleeve
	1 x Wall Cap
	1 x Drain Elbow
	1 x Tape
	1 x Putty
	1 x User Guide
