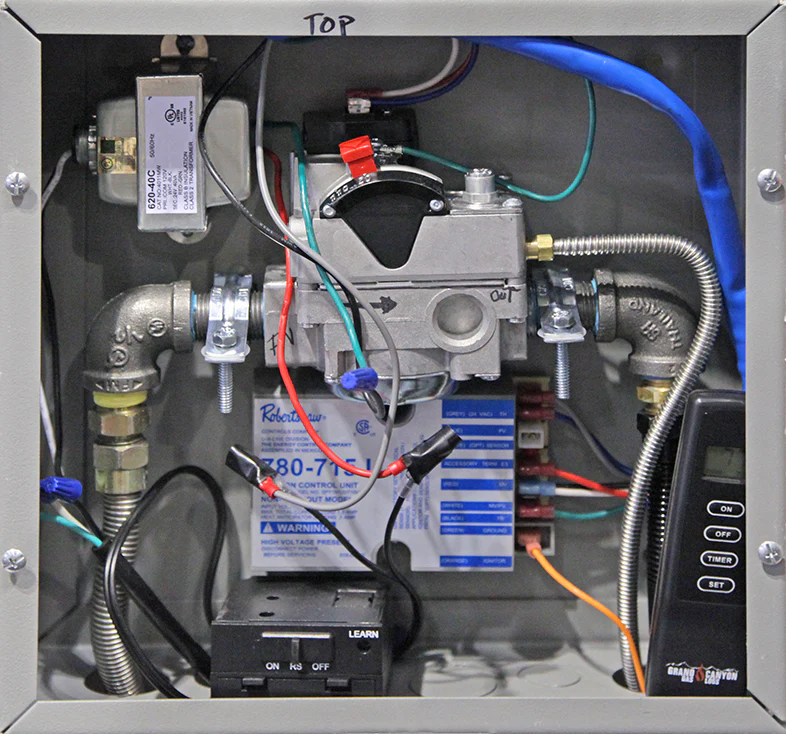

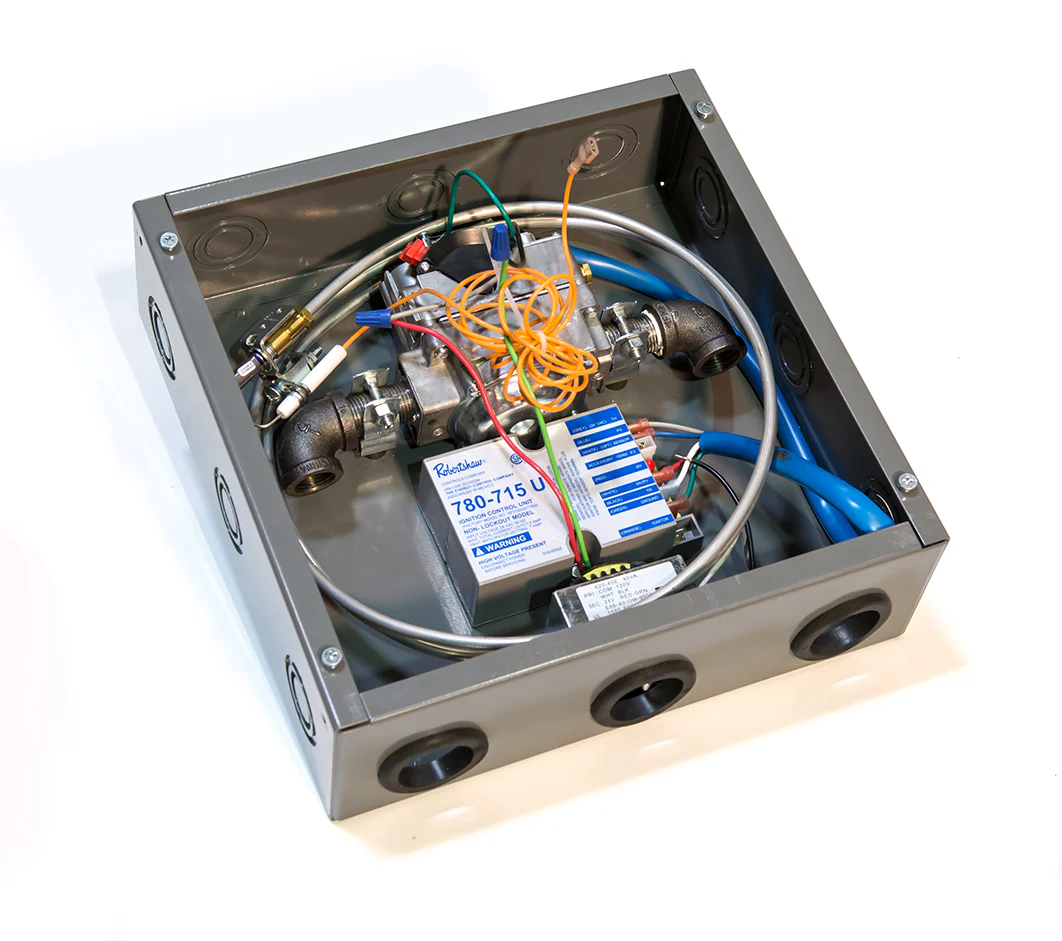

110V Indoor Electronic Ignition System - Grand Canyon Gas Logs

Features

• Part Number: EIS/EIS-LP
• Pilot: Non-Standing Pilot
• On-Demand System: Pilot On-Demand System
• Power: 24V Electronic Ignition
• Design: In-Wall Design
• Assembly: 6’-10’ Pilot Assembly
• Operations: On/Off Operations ONLY
• Max Inlet 14” W.C.
• Valve: Valve Temp Rating 175°
• NG: (NG) 3”-7” W.C. 200,000 BTU’s
• LP: (LP) 8”-14” W.C. 110,000 BTU’s


CSA DESIGN CERTIFIED TO APPLICABLE A.N.S.I. STANDARD
 Z21.71-1993 FOR FIELD INSTALLATION

Module Electrical Specifications

Spark rate 3 to 4 sparks per second	3 to 4 sparks per second
Relay contact ratings
Pilot valve	1 amp at .5 PF
Main valve	1 amp at .5 PF
Combined load	1.5 at .4 PF
Flame sense current	.7 µA DC @ 25°C / 24 VAC
Maximum total current load	1.5 amp
Flame failure re-ignition time	.8 seconds maximum
Thermostat anticipator setting	.7 amp
Ambient rating	- 40°F to 175°F (-  40°C to 80°C)
Relative humidity	95% non-condensing at 104°F



Product Manuals

Installation and Operations Guide for EIS Ignition System
